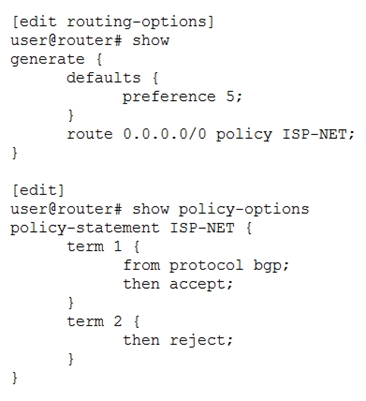

Click the Exhibit button.

Referring to the exhibit, which two statements are correct? (Choose two.)

A. The router will install the 0.0.0.0/0 route into the routing table when no BGP prefixes are present

B. The router will remove the 0.0.0.0/0 route from the routing table when no BGP prefixes are present

C. The router will remove the 0.0.0.0/0 route from the routing table when any BGP prefixes are present

D. The router will install the 0.0.0.0/0 route into the routing table when any BGP prefixes are present

Which two statements describe operations performed by the encapsulating tunnel endpoint in an IP-IP tunnel? (Choose two.)

A. It decrements the time-to-live (TTL) counter by one in the inner IP header

B. It modifies the source and destination addresses in the inner IP header

C. It adds an outer IP header with the destination address of the remote tunnel endpoint

D. It creates and adds a new inner IP header with the remote destination device’s IP address

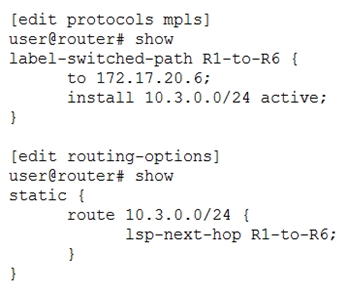

Click the Exhibit button.

Both configuration hierarchies shown in the exhibit have been committed to your MX Series device.
Which two statements are true in this scenario? (Choose two.)

A. Traffic destined to 10.3.0.1 will use the R1-to-R6 LSP as a next hop

B. Traffic destined to 10.3.0.1 will not use the R1-to-R6 LSP as a next hop

C. The active 10.3.0.0/24 prefix installed in the route table will have a route preference of 5

D. The active 10.3.0.0/24 prefix installed in the route table will have a route preference of 7

According to Juniper Networks, what are two reasons to peer using loopback addresses when configuring BGP? (Choose two.)

A. When establishing an IBGP connection

B. When routers are not in the same autonomous system

C. When routers are not directly connected

D. When establishing a single-link EBGP connection

Which IPv6 extension header notifies intermediary devices that they must inspect the packet's options?

A. destination options header

B. routing header

C. hop-by-hop options header

D. fragment header

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A. The configuration is for an external BGP session

B. The local-address statement is not required for the BGP session to establish correctly

C. The configuration is for an internal BGP session

D. The local-address statement is required for the BGP session to establish correctly

Which two statements are correct about the BGP MED attribute? (Choose two.)

A. BGP uses the MED value when peering to two or more connections to the same upstream AS

B. BGP routes require the MED attribute be defined

C. BGP uses the MED value when peering to two different upstream ASs

D. BGP assumes the MED value to be 0, if not already defined

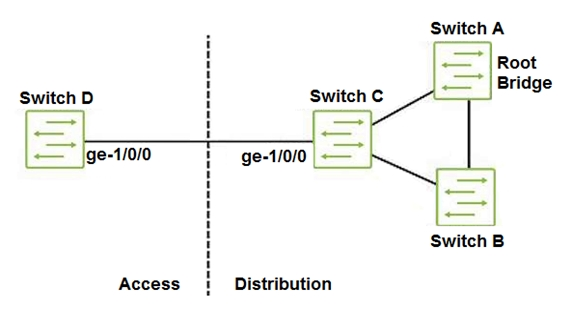

Click the Exhibit button.

In the network shown in the exhibit, all switches are configured with the default STP root bridge priority, and Switch A has been selected as root. You recently added the older Switch D into the network as an access switch, and notice it has taken over as root.
Which configuration would solve this problem?
A.

B.

C.

D.


Which two characteristics describe IS-IS? (Choose two.)

A. A collection of Level 1 routers serves as the IS-IS backbone

B. Level 2 routers connect areas in an IS-IS autonomous system

C. A collection of Level 2 routers serve as the IS-IS backbone

D. A Level 1 IS routes between areas and toward other autonomous systems

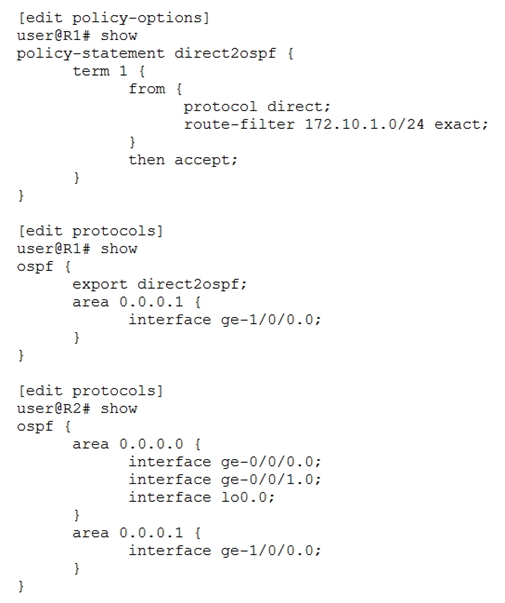

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. R2 is an ASBR

B. R1 is a backbone router

C. R2 is an ABR

D. R1 is an ABR

Click the Exhibit button.

You have configured IPv6 over IPv4 tunneling, as shown in the exhibit. However, hosts connected to network 2001:0:0:1::0/64 cannot communicate with hosts on network 2001:0:0:2::0/64. The router R2 has a similar configuration as the R1 router.
How would you solve this problem?

A. Configure an IGP across the tunnel interfaces

B. Configure an IPv6 address on the tunnel interfaces

C. Configure the next hop of the inet6.0 static route to point to the physical interface between the routers

D. Configure the next hop of the inet6.0 static route to point to the IPv4 address of the remote router

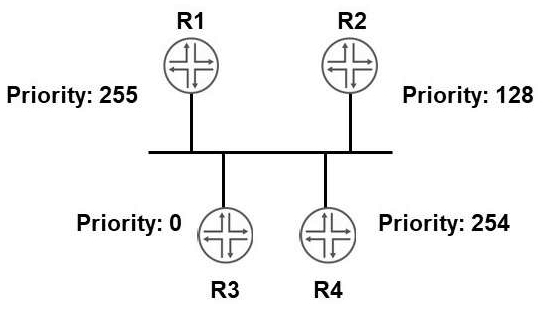

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. R2 will be the designated router

B. R3 will not participate in the election process

C. R1 will not participate in the election process

D. R4 will be the designated router

Which MPLS feature works with Constrained Shortest Path First (CSPF) to protect against the primary and secondary paths using the same link?

A. fate-sharing

B. explicit null configuration

C. policy control over LSP selection

D. LSP metrics

Which two high availability features preserve interface and kernel information during reconvergence? (Choose two.)

A. graceful restart (GR)

B. nonstop bridging (NSB)

C. nonstop active routing (NSR)

D. graceful Routing Engine switchover (GRES)

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. Interface ge-3/0/0.0 has a default metric of 10

B. Interface xe-0/0/0.0 can only form a single adjacency

C. Interface xe-0/0/0.0 has a default metric of 10

D. Interface ge-1/0/0.0 can only form a single adjacency

Which two statements are true about IP and GRE tunnels? (Choose two.)

A. The protocol field is changed in the inner IP packet header

B. Tunnel traffic is encrypted

C. The TTL field is changed in the inner IP packet header

D. Tunnel endpoints need a valid route to the remote endpoint

Click the Exhibit button.

Referring to the exhibit, if there is a connection failure between router1 and router2, how much time will pass before the devices declare the BFD session dead?

A. 1200 ms

B. 300 ms

C. 600 ms

D. 900 ms

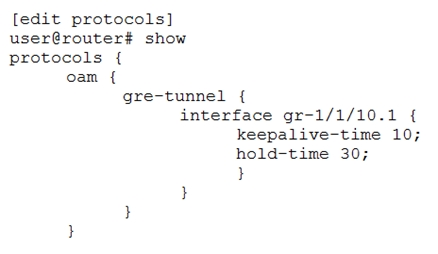

Click the Exhibit button.

Referring to the exhibit what are two reasons for the configuration stanza? (Choose two.)

A. to reduce the risk of forwarding traffic through a stateless tunnel

B. to mark the tunnel down after the hold-time expires

C. to remove the tunnel interface from inet.0 after the hold-time expires

D. to mark the tunnel up after the hold-time expires

You want to make use of the nonstop active routing (NSR) feature.
Which complementary feature must also be enabled?

A. IP anycast

B. graceful restart

C. Virtual Router Redundancy Protocol

D. graceful Routing Engine switchover

The IPv6 Neighbor Discovery Protocol (NDP) performs the same function as which two IPv4 protocols? (Choose two.)

A. ICMP

B. ARP

C. DNS

D. DHCP

Click the Exhibit button.

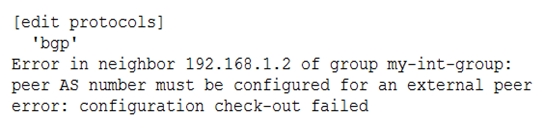

You are configuring an IBGP group. When you commit your configuration, you receive the error shown in the exhibit.
Which additional configuration parameter must you add to your configuration?

A. multipath

B. type external

C. type internal

D. export

What is the purpose of STP BPDUs?

A. to exchange MAC addresses

B. to determine the least cost path

C. to determine the root-alternate port

D. to determine the root bridge

Which three attributes are well-known mandatory BGP attributes? (Choose three.)

A. next-hop

B. AS path

C. local preference

D. MED

E. origin

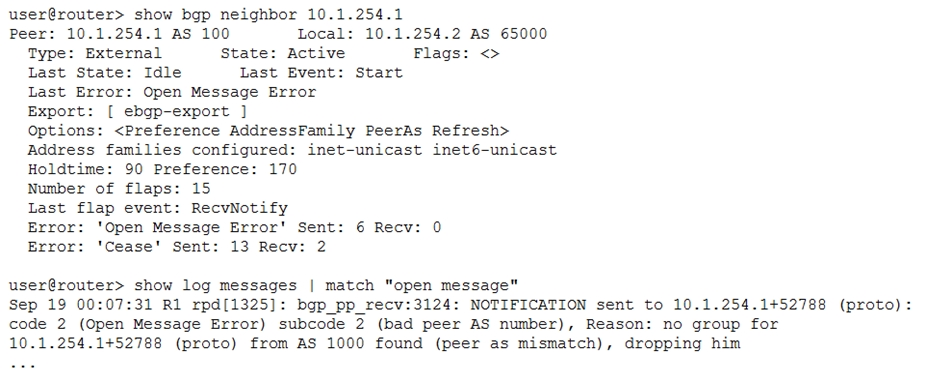

Click the Exhibit button.

You are troubleshooting a new BGP peering session which is not establishing.
Referring to the exhibit, which statement is true?

A. The update messages contain an unsupported option

B. The neighbor does not support IPv6

C. The peer’s AS number is misconfigured

D. The TCP session is not establishing

Which statement is true about an OSPF broadcast link?

A. All routers form an adjacency only with the BDR

B. All routers form an adjacency only with the DR

C. All routers form an adjacency with all other routers

D. All routers form an adjacency with both the DR and BDR

You are deploying an RSVP-based MPLS network in your core. You must ensure that your LSPs are continually analyzing the usage levels and recalculating the best LSP. You also want to ensure that a minimal amount of traffic is lost when an LSP is re-signaled without user intervention.
Which two features must be enabled in this scenario? (Choose two.)

A. adaptive

B. MPLS fast reroute

C. class of service

D. auto-bandwidth

You are asked to change the default TTL handling behavior on your Junos device to ensure that the RSVP-signaled LSPs in your MPLS network cannot be mapped.
Which configuration should be performed to accomplish this task?

A. Configure the no-decrement-ttl parameter for each LSP on the ingress device

B. Configure the no-propagate-ttl parameter for each LSP on the egress device

C. Configure the no-propagate-ttl parameter for each LSP on the ingress device

D. Configure the no-decrement-ttl parameter for each LSP on the egress device

Click the Exhibit button.

You configured R1 and R2 to form an OSPF adjacency, but the adjacency will not establish.
Referring to the exhibit, which statement correctly identifies the problem?

A. Hello and dead timers are not matching between R1 and R2

B. R1 does not have a router ID defined

C. R1 and R2 have the same router ID

D. R2 has a wrong area configured

Which two functions are performed by the OSPF designated router? (Choose two.)

A. It advertises link-state information to the AS

B. It designates some routers as inactive when not needed

C. It forms adjacencies with all the other OSPF routers on the link

D. It chooses the backup designated router

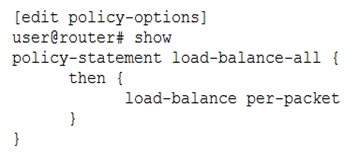

Click the Exhibit button.

You have applied the policy shown in the exhibit to the forwarding table on an MX Series device.
How is traffic load-balanced?

A. per frame

B. per packet

C. per segment

D. per flow

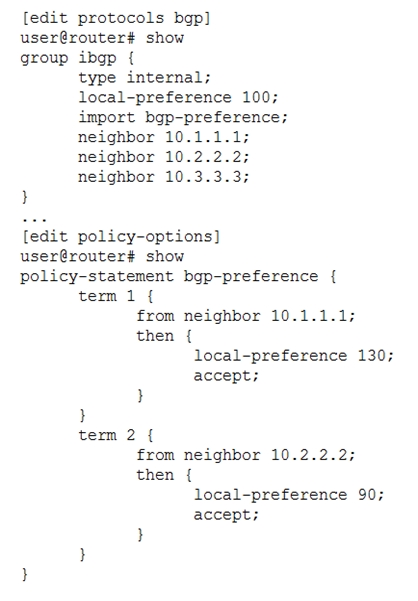

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. Routes from 10.1.1.1 are more preferred than routes from 10.2.2.2

B. Routes from 10.2.2.2 are less preferred than the default local preference

C. Routes from 10.3.3.3 are more preferred than the default local preference

D. Routes from 10.2.2.2 are less preferred than routes from 10.3.3.3

What is the Junos default router priority advertisement value for IS-IS?

A. 64

B. 32

C. 0

D. 127

Which two statements are true about IBGP on MX Series devices? (Choose two.)

A. Neighbors can be located anywhere within the AS

B. Interface Lo0 must be used for peering

C. It does not support multihop

D. It is loop free by default

Which two IP addresses are considered Martian addresses? (Choose two.)

A. 0.0.0.0/8

B. 192.168.0.0/8

C. 240.0.0.0/4

D. 169.254.0.0/16

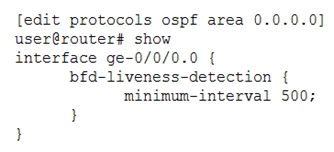

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A. The OSPF neighbor will be declared down if BFD hello packets are not received for 1.5 seconds

B. The OSPF neighbor will be declared down if BFD hello packets are not received for 5 seconds

C. The OSPF neighbor will be declared down if 500 BFD hello packets are missed

D. The OSPF neighbor will be declared down if three BFD hello packets are missed

Click the Exhibit button.

Referring to the exhibit, which statement is true?

A. The router will attempt to signal the LSP along the IGP shortest path to 192.168.100.1

B. The router will prune links with insufficient bandwidth from the path before beginning the signaling process

C. The router will analyze the traffic engineering database to determine the best path through the network

D. The router will precalculate a valid path through the network for LSP r1-to-r3

You must establish an MPLS LSP between two locations. You are required to ensure that the LSP traverses specific routers within the network.
Which solution is correct in this scenario?

A. Enable traffic engineering within RSVP and enable the Fast Reroute feature

B. Implement RSVP and define the explicit route the LSP must follow

C. Implement LDP and define the explicit route the LSP must follow

D. Enable traffic engineering within LDP and define the explicit route the LSP must follow

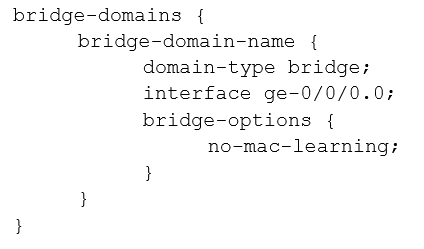

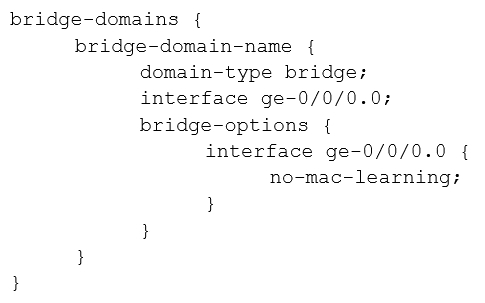

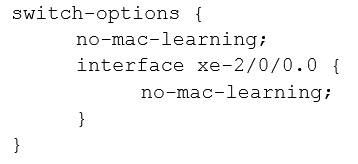

You want to disable MAC learning only for interface ge-0/0/0.0 on an MX Series device.
Which syntax will accomplish this task?
A.

B.

C.

D.

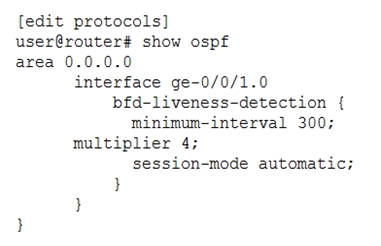

Click the Exhibit button.

Referring to the exhibit, how many milliseconds must pass before the interface ge-0/0/1.0 is considered down?

A. 1200 ms

B. 900 ms

C. 1600 ms

D. 2400 ms

Which two statements are true for GRE tunneling? (Choose two.)

A. GRE tunnel endpoints must have a valid route to the remote endpoint

B. GRE tunnels support multiple logical units per interface

C. GRE tunnels are stateful by default

D. GRE tunnels support only one logical unit per interface

To which multicast address is a VRRP advertisement packet sent?

A. 224.0.0.6

B. 224.0.0.18

C. 224.0.0.22

D. 224.0.0.13

In which situation would you disable penultimate-hop popping?

A. When you want to bypass a penultimate router that does not support IPv6 tunneling

B. When you want to ensure the penultimate router can perform the destination route lookup

C. When you want to enforce the same class-of-service behavior through the entire LSP

D. When you want to utilize a penultimate router that supports IPv6 tunneling

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. Routes from 10.1.1.1 are less preferred than the default local preference

B. Routes from 10.2.2.2 are less preferred than routes from 10.1.1.1

C. Routes from 10.3.3.3 are less preferred than the default local preference

D. Routes from 10.1.1.1 are less preferred than routes from 10.2.2.2

Click the Exhibit button.

Customer-1 wants the Service Provider to allow STP to operate normally on all ports but only allow the MX Series devices to manage the Layer 2 topology.
Referring to the exhibit, which feature needs to be implemented on all devices to accomplish this task?

A. root protection

B. MAC movement protection

C. BPDU protection

D. loop protection

What is the correct description of an Area Border Router (ABR)?

A. An ABR is an OSPF router with links in two areas, connecting OSPF areas to the backbone

B. An ABR is an OSPF router that injects routing information from outside the OSPF AS

C. An ABR is an OSPF router with at least one link in a Layer 2 area

D. An ABR is an OSPF router with all of its links within an area

Which statement about a virtual-router type of routing instance is correct?

A. It is used to separate large networks into smaller administrative entities

B. It is the only routing instance type supported on Junos devices

C. It is used in Layer 3 VPN implementations

D. It is used to create and maintain separate routing and forwarding tables

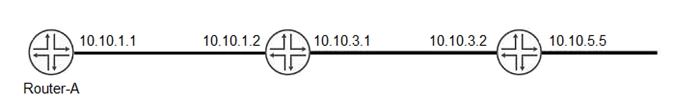

Click the Exhibit button.

You must create a static route on Router-A to the 10.10.5.0/24 network using 10.10.3.2 as the next hop.
Referring to the exhibit, which configuration accomplishes this task?

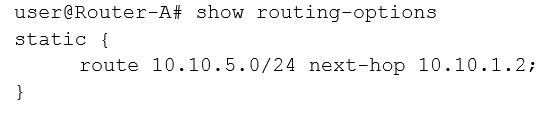

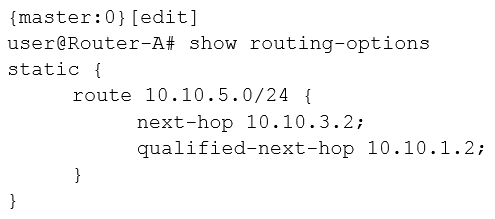

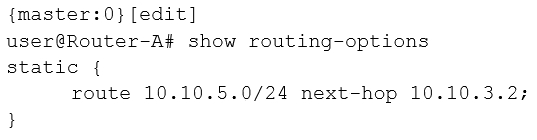

A.

B.

C.

D.


When working with an MPLS LSP, what will the install 172.16.6.0/24 active command accomplish?

A. The command will swap the prefix from inet.0 to inet.3

B. The command will swap the prefix from inet.3 to inet.0

C. The command will install the prefix in inet.0 rather than inet.3

D. The command will install the prefix in inet.3 rather than inet.0

You have two MX Series devices connected together and configured for Layer 2 operations. The interface that connects the two routers must carry tagged and untagged traffic.
Which approach would meet this objective?

A. Configure the interfaces as access ports with the native VLAN option

B. Configure the interfaces as trunk ports with the native VLAN option

C. Configure the interfaces as access ports with the voice VLAN option

D. Configure the interfaces as trunk ports with the voice VLAN option

Which statement is true when using MVRP on MX Series devices?

A. MVRP works with MSTP and RSTP, but not VSTP

B. MVRP works with RSTP and VSTP, but not MSTP

C. MVRP works with MSTP and VSTP, but not RSTP

D. MVRP does not work with MSTP, RSTP, and VSTP
