Your team needs to create a Google Kubernetes Engine (GKE) cluster to host a newly built application that requires access to third-party services on the internet.
Your company does not allow any Compute Engine instance to have a public IP address on Google Cloud. You need to create a deployment strategy that adheres to these guidelines. What should you do?

A. Configure the GKE cluster as a private cluster, and configure Cloud NAT Gateway for the cluster subnet.

B. Configure the GKE cluster as a private cluster. Configure Private Google Access on the Virtual Private Cloud (VPC).

C. Configure the GKE cluster as a route-based cluster. Configure Private Google Access on the Virtual Private Cloud (VPC).

D. Create a Compute Engine instance, and install a NAT Proxy on the instance. Configure all workloads on GKE to pass through this proxy to access third-party services on the Internet.

You have an application that makes HTTP requests to Cloud Storage. Occasionally the requests fail with HTTP status codes of 5xx and 429.
How should you handle these types of errors?

A. Use gRPC instead of HTTP for better performance.

B. Implement retry logic using a truncated exponential backoff strategy.

C. Make sure the Cloud Storage bucket is multi-regional for geo-redundancy.

D. Monitor https://status.cloud.google.com/feed.atom and only make requests if Cloud Storage is not reporting an incident.

You are implementing a single Cloud SQL MySQL second-generation database that contains business-critical transaction data. You want to ensure that the minimum amount of data is lost in case of catastrophic failure. Which two features should you implement? (Choose two.)

A. Sharding

B. Read replicas

C. Binary logging

D. Automated backups

E. Semisynchronous replication

You want to optimize the performance of an accurate, real-time, weather-charting application. The data comes from 50,000 sensors sending 10 readings a second, in the format of a timestamp and sensor reading.
Where should you store the data?

A. Google BigQuery

B. Google Cloud SQL

C. Google Cloud Bigtable

D. Google Cloud Storage

Your marketing department wants to send out a promotional email campaign. The development team wants to minimize direct operation management. They project a wide range of possible customer responses, from 100 to 500,000 click-through per day. The link leads to a simple website that explains the promotion and collects user information and preferences.
Which infrastructure should you recommend? (Choose two.)

A. Use Google App Engine to serve the website and Google Cloud Datastore to store user data.

B. Use a Google Container Engine cluster to serve the website and store data to persistent disk.

C. Use a managed instance group to serve the website and Google Cloud Bigtable to store user data.

D. Use a single Compute Engine virtual machine (VM) to host a web server, backend by Google Cloud SQL.

Your company runs several databases on a single MySQL instance. They need to take backups of a specific database at regular intervals. The backup activity needs to complete as quickly as possible and cannot be allowed to impact disk performance.
How should you configure the storage?

A. Configure a cron job to use the gcloud tool to take regular backups using persistent disk snapshots.

B. Mount a Local SSD volume as the backup location. After the backup is complete, use gsutil to move the backup to Google Cloud Storage.

C. Use gcsfise to mount a Google Cloud Storage bucket as a volume directly on the instance and write backups to the mounted location using mysqldump.

D. Mount additional persistent disk volumes onto each virtual machine (VM) instance in a RAID10 array and use LVM to create snapshots to send to Cloud Storage

One of the developers on your team deployed their application in Google Container Engine with the Dockerfile below. They report that their application deployments are taking too long.

You want to optimize this Dockerfile for faster deployment times without adversely affecting the app's functionality.
Which two actions should you take? (Choose two.)

A. Remove Python after running pip

B. Remove dependencies from requirements.txt

C. Use a slimmed-down base image like Alpine Linux

D. Use larger machine types for your Google Container Engine node pools

E. Copy the source after he package dependencies (Python and pip) are installed

Company overview -
Mountkirk Games makes online, session-based, multiplayer games for mobile platforms. They have recently started expanding to other platforms after successfully migrating their on-premises environments to Google Cloud.
Their most recent endeavor is to create a retro-style first-person shooter (FPS) game that allows hundreds of simultaneous players to join a geo-specific digital arena from multiple platforms and locations. A real-time digital banner will display a global leaderboard of all the top players across every active arena.
Solution concept -
Mountkirk Games is building a new multiplayer game that they expect to be very popular. They plan to deploy the game's backend on Google Kubernetes Engine so they can scale rapidly and use Google's global load balancer to route players to the closest regional game arenas. In order to keep the global leader board in sync, they plan to use a multi-region Spanner cluster.
Existing technical environment -
The existing environment was recently migrated to Google Cloud, and five games came across using lift-and-shift virtual machine migrations, with a few minor exceptions. Each new game exists in an isolated Google Cloud project nested below a folder that maintains most of the permissions and network policies. Legacy games with low traffic have been consolidated into a single project. There are also separate environments for development and testing.
Business requirements -
Support multiple gaming platforms.
Support multiple regions.
Support rapid iteration of game features.
Minimize latency.
Optimize for dynamic scaling.
Use managed services and pooled resources.
Minimize costs.
Technical requirements -
Dynamically scale based on game activity.
Publish scoring data on a near real-time global leaderboard.
Store game activity logs in structured files for future analysis.
Use GPU processing to render graphics server-side for multi-platform support.
Support eventual migration of legacy games to this new platform.
Executive statement -
Our last game was the first time we used Google Cloud, and it was a tremendous success. We were able to analyze player behavior and game telemetry in ways that we never could before. This success allowed us to bet on a full migration to the cloud and to start building all-new games using cloud-native design principles.
Our new game is our most ambitious to date and will open up doors for us to support more gaming platforms beyond mobile. Latency is our top priority, although cost management is the next most important challenge. As with our first cloud-based game, we have grown to expect the cloud to enable advanced analytics capabilities so we can rapidly iterate on our deployments of bug fixes and new functionality.
Your development teams release new versions of games running on Google Kubernetes Engine (GKE) daily. You want to create service level indicators (SLIs) to evaluate the quality of the new versions from the user's perspective. What should you do?

A. Create CPU Utilization and Request Latency as service level indicators.

B. Create GKE CPU Utilization and Memory Utilization as service level indicators.

C. Create Request Latency and Error Rate as service level indicators.

D. Create Server Uptime and Error Rate as service level indicators.

Your company has a stateless web API that performs scientific calculations. The web API runs on a single Google Kubernetes Engine (GKE) cluster. The cluster is currently deployed in us-central1. Your company has expanded to offer your API to customers in Asia. You want to reduce the latency for users in Asia.
What should you do?

A. Create a second GKE cluster in asia-southeast1, and expose both APIs using a Service of type LoadBalancer. Add the public IPs to the Cloud DNS zone.

B. Use a global HTTP(s) load balancer with Cloud CDN enabled.

C. Create a second GKE cluster in asia-southeast1, and use kubemci to create a global HTTP(s) load balancer.

D. Increase the memory and CPU allocated to the application in the cluster.

You need to deploy a stateful workload on Google Cloud. The workload can scale horizontally, but each instance needs to read and write to the same POSIX filesystem. At high load, the stateful workload needs to support up to 100 MB/s of writes. What should you do?

A. Use a persistent disk for each instance.

B. Use a regional persistent disk for each instance.

C. Create a Cloud Filestore instance and mount it in each instance.

D. Create a Cloud Storage bucket and mount it in each instance using gcsfuse.

Company Overview -
Dress4Win is a web-based company that helps their users organize and manage their personal wardrobe using a website and mobile application. The company also cultivates an active social network that connects their users with designers and retailers. They monetize their services through advertising, e-commerce, referrals, and a premium app model.
Company Background -
Dress4Win's application has grown from a few servers in the founder's garage to several hundred servers and appliances in a collocated data center. However, the capacity of their infrastructure is now insufficient for the application's rapid growth. Because of this growth and the company's desire to innovate faster,
Dress4Win is committing to a full migration to a public cloud.
Solution Concept -
For the first phase of their migration to the cloud, Dress4Win is considering moving their development and test environments. They are also considering building a disaster recovery site, because their current infrastructure is at a single location. They are not sure which components of their architecture they can migrate as is and which components they need to change before migrating them.
Existing Technical Environment -
The Dress4Win application is served out of a single data center location.
Databases:
- MySQL - user data, inventory, static data
- Redis - metadata, social graph, caching
Application servers:
- Tomcat - Java micro-services
- Nginx - static content
- Apache Beam - Batch processing
Storage appliances:
- iSCSI for VM hosts
- Fiber channel SAN - MySQL databases
- NAS - image storage, logs, backups
Apache Hadoop/Spark servers:
- Data analysis
- Real-time trending calculations
MQ servers:
- Messaging
- Social notifications
- Events
Miscellaneous servers:
- Jenkins, monitoring, bastion hosts, security scanners
Business Requirements -
Build a reliable and reproducible environment with scaled parity of production.

Improve security by defining and adhering to a set of security and Identity and Access Management (IAM) best practices for cloud.
Improve business agility and speed of innovation through rapid provisioning of new resources.
Analyze and optimize architecture for performance in the cloud.
Migrate fully to the cloud if all other requirements are met.
Technical Requirements -
Evaluate and choose an automation framework for provisioning resources in cloud.
Support failover of the production environment to cloud during an emergency.
Identify production services that can migrate to cloud to save capacity.
Use managed services whenever possible.
Encrypt data on the wire and at rest.
Support multiple VPN connections between the production data center and cloud environment.
CEO Statement -
Our investors are concerned about our ability to scale and contain costs with our current infrastructure. They are also concerned that a new competitor could use a public cloud platform to offset their up-front investment and freeing them to focus on developing better features.
CTO Statement -
We have invested heavily in the current infrastructure, but much of the equipment is approaching the end of its useful life. We are consistently waiting weeks for new gear to be racked before we can start new projects. Our traffic patterns are highest in the mornings and weekend evenings; during other times, 80% of our capacity is sitting idle.
CFO Statement -
Our capital expenditure is now exceeding our quarterly projections. Migrating to the cloud will likely cause an initial increase in spending, but we expect to fully transition before our next hardware refresh cycle. Our total cost of ownership (TCO) analysis over the next 5 years puts a cloud strategy between 30 to 50% lower than our current model.
The current Dress4Win system architecture has high latency to some customers because it is located in one data center.
As of a future evaluation and optimizing for performance in the cloud, Dresss4Win wants to distribute its system architecture to multiple locations when Google cloud platform.
Which approach should they use?

A. Use regional managed instance groups and a global load balancer to increase performance because the regional managed instance group can grow instances in each region separately based on traffic.

B. Use a global load balancer with a set of virtual machines that forward the requests to a closer group of virtual machines managed by your operations team.

C. Use regional managed instance groups and a global load balancer to increase reliability by providing automatic failover between zones in different regions.

D. Use a global load balancer with a set of virtual machines that forward the requests to a closer group of virtual machines as part of a separate managed instance groups.

Your BigQuery project has several users. For audit purposes, you need to see how many queries each user ran in the last month. What should you do?

A. Connect Google Data Studio to BigQuery. Create a dimension for the users and a metric for the amount of queries per user.

B. In the BigQuery interface, execute a query on the JOBS table to get the required information.

C. Use ‘bq show’ to list all jobs. Per job, use ‘bq ls’ to list job information and get the required information.

D. Use Cloud Audit Logging to view Cloud Audit Logs, and create a filter on the query operation to get the required information.

Company Overview -
Dress4Win is a web-based company that helps their users organize and manage their personal wardrobe using a website and mobile application. The company also cultivates an active social network that connects their users with designers and retailers. They monetize their services through advertising, e-commerce, referrals, and a premium app model.
Company Background -
Dress4Win's application has grown from a few servers in the founder's garage to several hundred servers and appliances in a collocated data center. However, the capacity of their infrastructure is now insufficient for the application's rapid growth. Because of this growth and the company's desire to innovate faster,
Dress4Win is committing to a full migration to a public cloud.
Solution Concept -
For the first phase of their migration to the cloud, Dress4Win is considering moving their development and test environments. They are also considering building a disaster recovery site, because their current infrastructure is at a single location. They are not sure which components of their architecture they can migrate as is and which components they need to change before migrating them.
Existing Technical Environment -
The Dress4Win application is served out of a single data center location.
Databases:
- MySQL - user data, inventory, static data
- Redis - metadata, social graph, caching
Application servers:
- Tomcat - Java micro-services
- Nginx - static content
- Apache Beam - Batch processing
Storage appliances:
- iSCSI for VM hosts
- Fiber channel SAN - MySQL databases
- NAS - image storage, logs, backups
Apache Hadoop/Spark servers:
- Data analysis
- Real-time trending calculations
MQ servers:
- Messaging
- Social notifications
- Events
Miscellaneous servers:
- Jenkins, monitoring, bastion hosts, security scanners
Business Requirements -
Build a reliable and reproducible environment with scaled parity of production.

Improve security by defining and adhering to a set of security and Identity and Access Management (IAM) best practices for cloud.
Improve business agility and speed of innovation through rapid provisioning of new resources.
Analyze and optimize architecture for performance in the cloud.
Migrate fully to the cloud if all other requirements are met.
Technical Requirements -
Evaluate and choose an automation framework for provisioning resources in cloud.
Support failover of the production environment to cloud during an emergency.
Identify production services that can migrate to cloud to save capacity.
Use managed services whenever possible.
Encrypt data on the wire and at rest.
Support multiple VPN connections between the production data center and cloud environment.
CEO Statement -
Our investors are concerned about our ability to scale and contain costs with our current infrastructure. They are also concerned that a new competitor could use a public cloud platform to offset their up-front investment and freeing them to focus on developing better features.
CTO Statement -
We have invested heavily in the current infrastructure, but much of the equipment is approaching the end of its useful life. We are consistently waiting weeks for new gear to be racked before we can start new projects. Our traffic patterns are highest in the mornings and weekend evenings; during other times, 80% of our capacity is sitting idle.
CFO Statement -
Our capital expenditure is now exceeding our quarterly projections. Migrating to the cloud will likely cause an initial increase in spending, but we expect to fully transition before our next hardware refresh cycle. Our total cost of ownership (TCO) analysis over the next 5 years puts a cloud strategy between 30 to 50% lower than our current model.
Dress4Win has asked you for advice on how to migrate their on-premises MySQL deployment to the cloud.
They want to minimize downtime and performance impact to their on-premises solution during the migration.
Which approach should you recommend?

A. Create a dump of the on-premises MySQL master server, and then shut it down, upload it to the cloud environment, and load into a new MySQL cluster.

B. Setup a MySQL replica server/slave in the cloud environment, and configure it for asynchronous replication from the MySQL master server on-premises until cutover.

C. Create a new MySQL cluster in the cloud, configure applications to begin writing to both on premises and cloud MySQL masters, and destroy the original cluster at cutover.

D. Create a dump of the MySQL replica server into the cloud environment, load it into: Google Cloud Datastore, and configure applications to read/write to Cloud Datastore at cutover.

You have deployed an application on Anthos clusters (formerly Anthos GKE). According to the SRE practices at your company, you need to be alerted if request latency is above a certain threshold for a specified amount of time. What should you do?

A. Install Anthos Service Mesh on your cluster. Use the Google Cloud Console to define a Service Level Objective (SLO), and create an alerting policy based on this SLO.

B. Enable the Cloud Trace API on your project, and use Cloud Monitoring Alerts to send an alert based on the Cloud Trace metrics.

C. Use Cloud Profiler to follow up the request latency. Create a custom metric in Cloud Monitoring based on the results of Cloud Profiler, and create an Alerting policy in case this metric exceeds the threshold.

D. Configure Anthos Config Management on your cluster, and create a yaml file that defines the SLO and alerting policy you want to deploy in your cluster.

Company Overview -
Dress4Win is a web-based company that helps their users organize and manage their personal wardrobe using a web app and mobile application. The company also cultivates an active social network that connects their users with designers and retailers. They monetize their services through advertising, e-commerce, referrals, and a freemium app model. The application has grown from a few servers in the founder's garage to several hundred servers and appliances in a colocated data center. However, the capacity of their infrastructure is now insufficient for the application's rapid growth. Because of this growth and the company's desire to innovate faster, Dress4Win is committing to a full migration to a public cloud.
Solution Concept -
For the first phase of their migration to the cloud, Dress4Win is moving their development and test environments. They are also building a disaster recovery site, because their current infrastructure is at a single location. They are not sure which components of their architecture they can migrate as is and which components they need to change before migrating them.
Existing Technical Environment -
The Dress4Win application is served out of a single data center location. All servers run Ubuntu LTS v16.04.
Databases:
MySQL. 1 server for user data, inventory, static data:
- MySQL 5.8
- 8 core CPUs
- 128 GB of RAM
- 2x 5 TB HDD (RAID 1)
Redis 3 server cluster for metadata, social graph, caching. Each server is:
- Redis 3.2
- 4 core CPUs
- 32GB of RAM
Compute:
40 Web Application servers providing micro-services based APIs and static content.
`"
- Tomcat
Java -
- Nginx
- 4 core CPUs
- 32 GB of RAM
20 Apache Hadoop/Spark servers:
- Data analysis
- Real-time trending calculations
- 8 core CPUs
- 128 GB of RAM
- 4x 5 TB HDD (RAID 1)
3 RabbitMQ servers for messaging, social notifications, and events:
- 8 core CPUs
- 32GB of RAM
Miscellaneous servers:
- Jenkins, monitoring, bastion hosts, security scanners
- 8 core CPUs
- 32GB of RAM
Storage appliances:
iSCSI for VM hosts
Fiber channel SAN `" MySQL databases
- 1 PB total storage; 400 TB available
NAS `" image storage, logs, backups
- 100 TB total storage; 35 TB available
Business Requirements -
Build a reliable and reproducible environment with scaled parity of production.
Improve security by defining and adhering to a set of security and Identity and Access Management (IAM) best practices for cloud.
Improve business agility and speed of innovation through rapid provisioning of new resources.
Analyze and optimize architecture for performance in the cloud.
Technical Requirements -
Easily create non-production environments in the cloud.
Implement an automation framework for provisioning resources in cloud.
Implement a continuous deployment process for deploying applications to the on-premises datacenter or cloud.
Support failover of the production environment to cloud during an emergency.
Encrypt data on the wire and at rest.
Support multiple private connections between the production data center and cloud environment.
Executive Statement -
Our investors are concerned about our ability to scale and contain costs with our current infrastructure. They are also concerned that a competitor could use a public cloud platform to offset their up-front investment and free them to focus on developing better features. Our traffic patterns are highest in the mornings and weekend evenings; during other times, 80% of our capacity is sitting idle.
Our capital expenditure is now exceeding our quarterly projections. Migrating to the cloud will likely cause an initial increase in spending, but we expect to fully transition before our next hardware refresh cycle. Our total cost of ownership (TCO) analysis over the next 5 years for a public cloud strategy achieves a cost reduction between 30% and 50% over our current model.
For this question, refer to the Dress4Win case study. Which of the compute services should be migrated as-is and would still be an optimized architecture for performance in the cloud?

A. Web applications deployed using App Engine standard environment

B. RabbitMQ deployed using an unmanaged instance group

C. Hadoop/Spark deployed using Cloud Dataproc Regional in High Availability mode

D. Jenkins, monitoring, bastion hosts, security scanners services deployed on custom machine types

You have a Compute Engine managed instance group that adds and removes Compute Engine instances from the group in response to the load on your application. The instances have a shutdown script that removes REDIS database entries associated with the instance. You see that many database entries have not been removed, and you suspect that the shutdown script is the problem. You need to ensure that the commands in the shutdown script are run reliably every time an instance is shut down. You create a Cloud Function to remove the database entries. What should you do next?

A. Modify the shutdown script to wait for 30 seconds before triggering the Cloud Function.

B. Do not use the Cloud Function. Modify the shutdown script to restart if it has not completed in 30 seconds.

C. Set up a Cloud Monitoring sink that triggers the Cloud Function after an instance removal log message arrives in Cloud Logging.

D. Modify the shutdown script to wait for 30 seconds and then publish a message to a Pub/Sub queue.

Your company is planning to upload several important files to Cloud Storage. After the upload is completed, they want to verify that the uploaded content is identical to what they have on-premises. You want to minimize the cost and effort of performing this check. What should you do?

A. 1. Use Linux shasum to compute a digest of files you want to upload. 2. Use gsutil -m to upload all the files to Cloud Storage. 3. Use gsutil cp to download the uploaded files. 4. Use Linux shasum to compute a digest of the downloaded files. 5. Compare the hashes.

B. 1. Use gsutil -m to upload the files to Cloud Storage. 2. Develop a custom Java application that computes CRC32C hashes. 3. Use gsutil ls -L gs://[YOUR_BUCKET_NAME] to collect CRC32C hashes of the uploaded files. 4. Compare the hashes.

C. 1. Use gsutil -m to upload all the files to Cloud Storage. 2. Use gsutil cp to download the uploaded files. 3. Use Linux diff to compare the content of the files.

D. 1. Use gsutil -m to upload the files to Cloud Storage. 2. Use gsutil hash -c FILE_NAME to generate CRC32C hashes of all on-premises files. 3. Use gsutil ls -L gs://[YOUR_BUCKET_NAME] to collect CRC32C hashes of the uploaded files. 4. Compare the hashes.

A lead engineer wrote a custom tool that deploys virtual machines in the legacy data center. He wants to migrate the custom tool to the new cloud environment.
You want to advocate for the adoption of Google Cloud Deployment Manager.
What are two business risks of migrating to Cloud Deployment Manager? (Choose two.)

A. Cloud Deployment Manager uses Python

B. Cloud Deployment Manager APIs could be deprecated in the future

C. Cloud Deployment Manager is unfamiliar to the company’s engineers

D. Cloud Deployment Manager requires a Google APIs service account to run

E. Cloud Deployment Manager can be used to permanently delete cloud resources

F. Cloud Deployment Manager only supports automation of Google Cloud resources

You have deployed an application to Google Kubernetes Engine (GKE), and are using the Cloud SQL proxy container to make the Cloud SQL database available to the services running on Kubernetes. You are notified that the application is reporting database connection issues. Your company policies require a post- mortem. What should you do?

A. Use gcloud sql instances restart.

B. Validate that the Service Account used by the Cloud SQL proxy container still has the Cloud Build Editor role.

C. In the GCP Console, navigate to Stackdriver Logging. Consult logs for (GKE) and Cloud SQL.

D. In the GCP Console, navigate to Cloud SQL. Restore the latest backup. Use kubectl to restart all pods.

During a high traffic portion of the day, one of your relational databases crashes, but the replica is never promoted to a master. You want to avoid this in the future.
What should you do?

A. Use a different database

B. Choose larger instances for your database

C. Create snapshots of your database more regularly

D. Implement routinely scheduled failovers of your databases

Your application needs to process credit card transactions. You want the smallest scope of Payment Card Industry (PCI) compliance without compromising the ability to analyze transactional data and trends relating to which payment methods are used.
How should you design your architecture?

A. Create a tokenizer service and store only tokenized data

B. Create separate projects that only process credit card data

C. Create separate subnetworks and isolate the components that process credit card data

D. Streamline the audit discovery phase by labeling all of the virtual machines (VMs) that process PCI data

E. Enable Logging export to Google BigQuery and use ACLs and views to scope the data shared with the auditor

The operations team in your company wants to save Cloud VPN log events for one year. You need to configure the cloud infrastructure to save the logs. What should you do?

A. Set up a filter in Cloud Logging and a Cloud Storage bucket as an export target for the logs you want to save.

B. Enable the Compute Engine API, and then enable logging on the firewall rules that match the traffic you want to save.

C. Set up a Cloud Logging Dashboard titled Cloud VPN Logs, and then add a chart that queries for the VPN metrics over a one-year time period.

D. Set up a filter in Cloud Logging and a topic in Pub/Sub to publish the logs.

Your architecture calls for the centralized collection of all admin activity and VM system logs within your project.
How should you collect these logs from both VMs and services?

A. All admin and VM system logs are automatically collected by Stackdriver.

B. Stackdriver automatically collects admin activity logs for most services. The Stackdriver Logging agent must be installed on each instance to collect system logs.

C. Launch a custom syslogd compute instance and configure your GCP project and VMs to forward all logs to it.

D. Install the Stackdriver Logging agent on a single compute instance and let it collect all audit and access logs for your environment.

You need to set up Microsoft SQL Server on GCP. Management requires that there's no downtime in case of a data center outage in any of the zones within a
GCP region. What should you do?

A. Configure a Cloud SQL instance with high availability enabled.

B. Configure a Cloud Spanner instance with a regional instance configuration.

C. Set up SQL Server on Compute Engine, using Always On Availability Groups using Windows Failover Clustering. Place nodes in different subnets.

D. Set up SQL Server Always On Availability Groups using Windows Failover Clustering. Place nodes in different zones.

Your company pushes batches of sensitive transaction data from its application server VMs to Cloud Pub/Sub for processing and storage. What is the Google- recommended way for your application to authenticate to the required Google Cloud services?

A. Ensure that VM service accounts are granted the appropriate Cloud Pub/Sub IAM roles.

B. Ensure that VM service accounts do not have access to Cloud Pub/Sub, and use VM access scopes to grant the appropriate Cloud Pub/Sub IAM roles.

C. Generate an OAuth2 access token for accessing Cloud Pub/Sub, encrypt it, and store it in Cloud Storage for access from each VM.

D. Create a gateway to Cloud Pub/Sub using a Cloud Function, and grant the Cloud Function service account the appropriate Cloud Pub/Sub IAM roles.

The development team has provided you with a Kubernetes Deployment file. You have no infrastructure yet and need to deploy the application. What should you do?

A. Use gcloud to create a Kubernetes cluster. Use Deployment Manager to create the deployment.

B. Use gcloud to create a Kubernetes cluster. Use kubectl to create the deployment.

C. Use kubectl to create a Kubernetes cluster. Use Deployment Manager to create the deployment.

D. Use kubectl to create a Kubernetes cluster. Use kubectl to create the deployment.

Your team is developing a web application that will be deployed on Google Kubernetes Engine (GKE). Your CTO expects a successful launch and you need to ensure your application can handle the expected load of tens of thousands of users. You want to test the current deployment to ensure the latency of your application stays below a certain threshold. What should you do?

A. Use a load testing tool to simulate the expected number of concurrent users and total requests to your application, and inspect the results.

B. Enable autoscaling on the GKE cluster and enable horizontal pod autoscaling on your application deployments. Send curl requests to your application, and validate if the auto scaling works.

C. Replicate the application over multiple GKE clusters in every Google Cloud region. Configure a global HTTP(S) load balancer to expose the different clusters over a single global IP address.

D. Use Cloud Debugger in the development environment to understand the latency between the different microservices.

Your company has decided to make a major revision of their API in order to create better experiences for their developers. They need to keep the old version of the API available and deployable, while allowing new customers and testers to try out the new API. They want to keep the same SSL and DNS records in place to serve both APIs.
What should they do?

A. Configure a new load balancer for the new version of the API

B. Reconfigure old clients to use a new endpoint for the new API

C. Have the old API forward traffic to the new API based on the path

D. Use separate backend pools for each API path behind the load balancer

Your company has an application running as a Deployment in a Google Kubernetes Engine (GKE) cluster. When releasing new versions of the application via a rolling deployment, the team has been causing outages. The root cause of the outages is misconfigurations with parameters that are only used in production. You want to put preventive measures for this in the platform to prevent outages. What should you do?

A. Configure liveness and readiness probes in the Pod specification.

B. Configure health checks on the managed instance group.

C. Create a Scheduled Task to check whether the application is available.

D. Configure an uptime alert in Cloud Monitoring.

Your customer is receiving reports that their recently updated Google App Engine application is taking approximately 30 seconds to load for some of their users.
This behavior was not reported before the update.
What strategy should you take?

A. Work with your ISP to diagnose the problem

B. Open a support ticket to ask for network capture and flow data to diagnose the problem, then roll back your application

C. Roll back to an earlier known good release initially, then use Stackdriver Trace and Logging to diagnose the problem in a development/test/staging environment

D. Roll back to an earlier known good release, then push the release again at a quieter period to investigate. Then use Stackdriver Trace and Logging to diagnose the problem

Company Overview -
Mountkirk Games makes online, session-based, multiplayer games for mobile platforms. They build all of their games using some server-side integration.
Historically, they have used cloud providers to lease physical servers.
Due to the unexpected popularity of some of their games, they have had problems scaling their global audience, application servers, MySQL databases, and analytics tools.
Their current model is to write game statistics to files and send them through an ETL tool that loads them into a centralized MySQL database for reporting.
Solution Concept -
Mountkirk Games is building a new game, which they expect to be very popular. They plan to deploy the game's backend on Google Compute Engine so they can capture streaming metrics, run intensive analytics, and take advantage of its autoscaling server environment and integrate with a managed NoSQL database.
Business Requirements -
Increase to a global footprint
Improve uptime `" downtime is loss of players
Increase efficiency of the cloud resources we use
Reduce latency to all customers
Technical Requirements -
Requirements for Game Backend Platform
Dynamically scale up or down based on game activity
Connect to a transactional database service to manage user profiles and game state
Store game activity in a timeseries database service for future analysis
As the system scales, ensure that data is not lost due to processing backlogs
Run hardened Linux distro
Requirements for Game Analytics Platform
Dynamically scale up or down based on game activity
Process incoming data on the fly directly from the game servers
Process data that arrives late because of slow mobile networks
Allow queries to access at least 10 TB of historical data
Process files that are regularly uploaded by users' mobile devices
Executive Statement -
Our last successful game did not scale well with our previous cloud provider, resulting in lower user adoption and affecting the game's reputation. Our investors want more key performance indicators (KPIs) to evaluate the speed and stability of the game, as well as other metrics that provide deeper insight into usage patterns so we can adapt the game to target users. Additionally, our current technology stack cannot provide the scale we need, so we want to replace MySQL and move to an environment that provides autoscaling, low latency load balancing, and frees us up from managing physical servers.
For this question, refer to the Mountkirk Games case study. Mountkirk Games wants you to design a way to test the analytics platform's resilience to changes in mobile network latency. What should you do?

A. Deploy failure injection software to the game analytics platform that can inject additional latency to mobile client analytics traffic.

B. Build a test client that can be run from a mobile phone emulator on a Compute Engine virtual machine, and run multiple copies in Google Cloud Platform regions all over the world to generate realistic traffic.

C. Add the ability to introduce a random amount of delay before beginning to process analytics files uploaded from mobile devices.

D. Create an opt-in beta of the game that runs on players’ mobile devices and collects response times from analytics endpoints running in Google Cloud Platform regions all over the world.

You are working in a highly secured environment where public Internet access from the Compute Engine VMs is not allowed. You do not yet have a VPN connection to access an on-premises file server. You need to install specific software on a Compute Engine instance. How should you install the software?

A. Upload the required installation files to Cloud Storage. Configure the VM on a subnet with a Private Google Access subnet. Assign only an internal IP address to the VM. Download the installation files to the VM using gsutil.

B. Upload the required installation files to Cloud Storage and use firewall rules to block all traffic except the IP address range for Cloud Storage. Download the files to the VM using gsutil.

C. Upload the required installation files to Cloud Source Repositories. Configure the VM on a subnet with a Private Google Access subnet. Assign only an internal IP address to the VM. Download the installation files to the VM using gcloud.

D. Upload the required installation files to Cloud Source Repositories and use firewall rules to block all traffic except the IP address range for Cloud Source Repositories. Download the files to the VM using gsutil.

You are managing an application deployed on Cloud Run for Anthos, and you need to define a strategy for deploying new versions of the application. You want to evaluate the new code with a subset of production traffic to decide whether to proceed with the rollout. What should you do?

A. Deploy a new revision to Cloud Run with the new version. Configure traffic percentage between revisions.

B. Deploy a new service to Cloud Run with the new version. Add a Cloud Load Balancing instance in front of both services.

C. In the Google Cloud Console page for Cloud Run, set up continuous deployment using Cloud Build for the development branch. As part of the Cloud Build trigger, configure the substitution variable TRAFFIC_PERCENTAGE with the percentage of traffic you want directed to a new version.

D. In the Google Cloud Console, configure Traffic Director with a new Service that points to the new version of the application on Cloud Run. Configure Traffic Director to send a small percentage of traffic to the new version of the application.

Company Overview -
Dress4Win is a web-based company that helps their users organize and manage their personal wardrobe using a website and mobile application. The company also cultivates an active social network that connects their users with designers and retailers. They monetize their services through advertising, e-commerce, referrals, and a premium app model.
Company Background -
Dress4Win's application has grown from a few servers in the founder's garage to several hundred servers and appliances in a collocated data center. However, the capacity of their infrastructure is now insufficient for the application's rapid growth. Because of this growth and the company's desire to innovate faster,
Dress4Win is committing to a full migration to a public cloud.
Solution Concept -
For the first phase of their migration to the cloud, Dress4Win is considering moving their development and test environments. They are also considering building a disaster recovery site, because their current infrastructure is at a single location. They are not sure which components of their architecture they can migrate as is and which components they need to change before migrating them.
Existing Technical Environment -
The Dress4Win application is served out of a single data center location.
Databases:
- MySQL - user data, inventory, static data
- Redis - metadata, social graph, caching
Application servers:
- Tomcat - Java micro-services
- Nginx - static content
- Apache Beam - Batch processing
Storage appliances:
- iSCSI for VM hosts
- Fiber channel SAN - MySQL databases
- NAS - image storage, logs, backups
Apache Hadoop/Spark servers:
- Data analysis
- Real-time trending calculations
MQ servers:
- Messaging
- Social notifications
- Events
Miscellaneous servers:
- Jenkins, monitoring, bastion hosts, security scanners
Business Requirements -
Build a reliable and reproducible environment with scaled parity of production.

Improve security by defining and adhering to a set of security and Identity and Access Management (IAM) best practices for cloud.
Improve business agility and speed of innovation through rapid provisioning of new resources.
Analyze and optimize architecture for performance in the cloud.
Migrate fully to the cloud if all other requirements are met.
Technical Requirements -
Evaluate and choose an automation framework for provisioning resources in cloud.
Support failover of the production environment to cloud during an emergency.
Identify production services that can migrate to cloud to save capacity.
Use managed services whenever possible.
Encrypt data on the wire and at rest.
Support multiple VPN connections between the production data center and cloud environment.
CEO Statement -
Our investors are concerned about our ability to scale and contain costs with our current infrastructure. They are also concerned that a new competitor could use a public cloud platform to offset their up-front investment and freeing them to focus on developing better features.
CTO Statement -
We have invested heavily in the current infrastructure, but much of the equipment is approaching the end of its useful life. We are consistently waiting weeks for new gear to be racked before we can start new projects. Our traffic patterns are highest in the mornings and weekend evenings; during other times, 80% of our capacity is sitting idle.
CFO Statement -
Our capital expenditure is now exceeding our quarterly projections. Migrating to the cloud will likely cause an initial increase in spending, but we expect to fully transition before our next hardware refresh cycle. Our total cost of ownership (TCO) analysis over the next 5 years puts a cloud strategy between 30 to 50% lower than our current model.
Dress4Win has asked you to recommend machine types they should deploy their application servers to.
How should you proceed?

A. Perform a mapping of the on-premises physical hardware cores and RAM to the nearest machine types in the cloud.

B. Recommend that Dress4Win deploy application servers to machine types that offer the highest RAM to CPU ratio available.

C. Recommend that Dress4Win deploy into production with the smallest instances available, monitor them over time, and scale the machine type up until the desired performance is reached.

D. Identify the number of virtual cores and RAM associated with the application server virtual machines align them to a custom machine type in the cloud, monitor performance, and scale the machine types up until the desired performance is reached.

Your company wants to track whether someone is present in a meeting room reserved for a scheduled meeting. There are 1000 meeting rooms across 5 offices on 3 continents. Each room is equipped with a motion sensor that reports its status every second. The data from the motion detector includes only a sensor ID and several different discrete items of information. Analysts will use this data, together with information about account owners and office locations.
Which database type should you use?

A. Flat file

B. NoSQL

C. Relational

D. Blobstore

Your company is running its application workloads on Compute Engine. The applications have been deployed in production, acceptance, and development environments. The production environment is business-critical and is used 24/7, while the acceptance and development environments are only critical during office hours. Your CFO has asked you to optimize these environments to achieve cost savings during idle times. What should you do?

A. Create a shell script that uses the gcloud command to change the machine type of the development and acceptance instances to a smaller machine type outside of office hours. Schedule the shell script on one of the production instances to automate the task.

B. Use Cloud Scheduler to trigger a Cloud Function that will stop the development and acceptance environments after office hours and start them just before office hours.

C. Deploy the development and acceptance applications on a managed instance group and enable autoscaling.

D. Use regular Compute Engine instances for the production environment, and use preemptible VMs for the acceptance and development environments.

A small number of API requests to your microservices-based application take a very long time. You know that each request to the API can traverse many services.
You want to know which service takes the longest in those cases.
What should you do?

A. Set timeouts on your application so that you can fail requests faster

B. Send custom metrics for each of your requests to Stackdriver Monitoring

C. Use Stackdriver Monitoring to look for insights that show when your API latencies are high

D. Instrument your application with Stackdriver Trace in order to break down the request latencies at each microservice

Company overview -
TerramEarth manufactures heavy equipment for the mining and agricultural industries. They currently have over 500 dealers and service centers in 100 countries.
Their mission is to build products that make their customers more productive.
Solution concept -
There are 2 million TerramEarth vehicles in operation currently, and we see 20% yearly growth. Vehicles collect telemetry data from many sensors during operation. A small subset of critical data is transmitted from the vehicles in real time to facilitate fleet management. The rest of the sensor data is collected, compressed, and uploaded daily when the vehicles return to home base. Each vehicle usually generates 200 to 500 megabytes of data per day.
Existing technical environment -
TerramEarth's vehicle data aggregation and analysis infrastructure resides in Google Cloud and serves clients from all around the world. A growing amount of sensor data is captured from their two main manufacturing plants and sent to private data centers that contain their legacy inventory and logistics management systems. The private data centers have multiple network interconnects configured to Google Cloud. The web frontend for dealers and customers is running in
Google Cloud and allows access to stock management and analytics.
Business requirements -
* Predict and detect vehicle malfunction and rapidly ship parts to dealerships for just-in-time repair where possible.
* Decrease cloud operational costs and adapt to seasonality.
* Increase speed and reliability of development workflow.
* Allow remote developers to be productive without compromising code or data security.
* Create a flexible and scalable platform for developers to create custom API services for dealers and partners.
Technical requirements -
* Create a new abstraction layer for HTTP API access to their legacy systems to enable a gradual move into the cloud without disrupting operations.
* Modernize all CI/CD pipelines to allow developers to deploy container-based workloads in highly scalable environments.
* Allow developers to run experiments without compromising security and governance requirements.
* Create a self-service portal for internal and partner developers to create new projects, request resources for data analytics jobs, and centrally manage access to the API endpoints.
* Use cloud-native solutions for keys and secrets management and optimize for identity-based access.
* Improve and standardize tools necessary for application and network monitoring and troubleshooting.
Executive statement -
Our competitive advantage has always been our focus on the customer, with our ability to provide excellent customer service and minimize vehicle downtimes.
After moving multiple systems into Google Cloud, we are seeking new ways to provide best-in-class online fleet management services to our customers and improve operations of our dealerships. Our 5-year strategic plan is to create a partner ecosystem of new products by enabling access to our data, increasing autonomous operation capabilities of our vehicles, and creating a path to move the remaining legacy systems to the cloud.
For this question, refer to the TerramEarth case study. TerramEarth has about 1 petabyte (PB) of vehicle testing data in a private data center. You want to move the data to Cloud Storage for your machine learning team. Currently, a 1-Gbps interconnect link is available for you. The machine learning team wants to start using the data in a month. What should you do?

A. Request Transfer Appliances from Google Cloud, export the data to appliances, and return the appliances to Google Cloud.

B. Configure the Storage Transfer service from Google Cloud to send the data from your data center to Cloud Storage.

C. Make sure there are no other users consuming the 1Gbps link, and use multi-thread transfer to upload the data to Cloud Storage.

D. Export files to an encrypted USB device, send the device to Google Cloud, and request an import of the data to Cloud Storage.

Company Overview -
TerramEarth manufactures heavy equipment for the mining and agricultural industries. About 80% of their business is from mining and 20% from agriculture. They currently have over 500 dealers and service centers in 100 countries. Their mission is to build products that make their customers more productive.
Solution Concept -
There are 20 million TerramEarth vehicles in operation that collect 120 fields of data per second. Data is stored locally on the vehicle and can be accessed for analysis when a vehicle is serviced. The data is downloaded via a maintenance port. This same port can be used to adjust operational parameters, allowing the vehicles to be upgraded in the field with new computing modules.
Approximately 200,000 vehicles are connected to a cellular network, allowing TerramEarth to collect data directly. At a rate of 120 fields of data per second, with
22 hours of operation per day, TerramEarth collects a total of about 9 TB/day from these connected vehicles.
Existing Technical Environment -
TerramEarth's existing architecture is composed of Linux and Windows-based systems that reside in a single U.S, west coast based data center. These systems gzip CSV files from the field and upload via FTP, and place the data in their data warehouse. Because this process takes time, aggregated reports are based on data that is 3 weeks old.
With this data, TerramEarth has been able to preemptively stock replacement parts and reduce unplanned downtime of their vehicles by 60%. However, because the data is stale, some customers are without their vehicles for up to 4 weeks while they wait for replacement parts.
Business Requirements -
Decrease unplanned vehicle downtime to less than 1 week
Support the dealer network with more data on how their customers use their equipment to better position new products and services
Have the ability to partner with different companies `" especially with seed and fertilizer suppliers in the fast-growing agricultural business `" to create compelling joint offerings for their customers
Technical Requirements -
Expand beyond a single datacenter to decrease latency to the American midwest and east coast
Create a backup strategy
Increase security of data transfer from equipment to the datacenter
Improve data in the data warehouse
Use customer and equipment data to anticipate customer needs
Application 1: Data ingest -
A custom Python application reads uploaded datafiles from a single server, writes to the data warehouse.
Compute:
Windows Server 2008 R2
- 16 CPUs
- 128 GB of RAM
- 10 TB local HDD storage
Application 2: Reporting -
An off the shelf application that business analysts use to run a daily report to see what equipment needs repair. Only 2 analysts of a team of 10 (5 west coast, 5 east coast) can connect to the reporting application at a time.
Compute:
Off the shelf application. License tied to number of physical CPUs
- Windows Server 2008 R2
- 16 CPUs
- 32 GB of RAM
- 500 GB HDD
Data warehouse:
A single PostgreSQL server
- RedHat Linux
- 64 CPUs
- 128 GB of RAM
- 4x 6TB HDD in RAID 0
Executive Statement -
Our competitive advantage has always been in our manufacturing process, with our ability to build better vehicles for lower cost than our competitors. However, new products with different approaches are constantly being developed, and I'm concerned that we lack the skills to undergo the next wave of transformations in our industry. My goals are to build our skills while addressing immediate market needs through incremental innovations.
For this question, refer to the TerramEarth case study. TerramEarth has decided to store data files in Cloud Storage. You need to configure Cloud Storage lifecycle rule to store 1 year of data and minimize file storage cost.
Which two actions should you take?

A. Create a Cloud Storage lifecycle rule with Age: ג€30ג€, Storage Class: ג€Standardג€, and Action: ג€Set to Coldlineג€, and create a second GCS life-cycle rule with Age: ג€365ג€, Storage Class: ג€Coldlineג€, and Action: ג€Deleteג€.

B. Create a Cloud Storage lifecycle rule with Age: ג€30ג€, Storage Class: ג€Coldlineג€, and Action: ג€Set to Nearlineג€, and create a second GCS life-cycle rule with Age: ג€91ג€, Storage Class: ג€Coldlineג€, and Action: ג€Set to Nearlineג€.

C. Create a Cloud Storage lifecycle rule with Age: ג€90ג€, Storage Class: ג€Standardג€, and Action: ג€Set to Nearlineג€, and create a second GCS life-cycle rule with Age: ג€91ג€, Storage Class: ג€Nearlineג€, and Action: ג€Set to Coldlineג€.

D. Create a Cloud Storage lifecycle rule with Age: ג€30ג€, Storage Class: ג€Standardג€, and Action: ג€Set to Coldlineג€, and create a second GCS life-cycle rule with Age: ג€365ג€, Storage Class: ג€Nearlineג€, and Action: ג€Deleteג€.

Company overview -
Mountkirk Games makes online, session-based, multiplayer games for mobile platforms. They have recently started expanding to other platforms after successfully migrating their on-premises environments to Google Cloud.
Their most recent endeavor is to create a retro-style first-person shooter (FPS) game that allows hundreds of simultaneous players to join a geo-specific digital arena from multiple platforms and locations. A real-time digital banner will display a global leaderboard of all the top players across every active arena.
Solution concept -
Mountkirk Games is building a new multiplayer game that they expect to be very popular. They plan to deploy the game's backend on Google Kubernetes Engine so they can scale rapidly and use Google's global load balancer to route players to the closest regional game arenas. In order to keep the global leader board in sync, they plan to use a multi-region Spanner cluster.
Existing technical environment -
The existing environment was recently migrated to Google Cloud, and five games came across using lift-and-shift virtual machine migrations, with a few minor exceptions. Each new game exists in an isolated Google Cloud project nested below a folder that maintains most of the permissions and network policies. Legacy games with low traffic have been consolidated into a single project. There are also separate environments for development and testing.
Business requirements -
Support multiple gaming platforms.
Support multiple regions.
Support rapid iteration of game features.
Minimize latency.
Optimize for dynamic scaling.
Use managed services and pooled resources.
Minimize costs.
Technical requirements -
Dynamically scale based on game activity.
Publish scoring data on a near real-time global leaderboard.
Store game activity logs in structured files for future analysis.
Use GPU processing to render graphics server-side for multi-platform support.
Support eventual migration of legacy games to this new platform.
Executive statement -
Our last game was the first time we used Google Cloud, and it was a tremendous success. We were able to analyze player behavior and game telemetry in ways that we never could before. This success allowed us to bet on a full migration to the cloud and to start building all-new games using cloud-native design principles.
Our new game is our most ambitious to date and will open up doors for us to support more gaming platforms beyond mobile. Latency is our top priority, although cost management is the next most important challenge. As with our first cloud-based game, we have grown to expect the cloud to enable advanced analytics capabilities so we can rapidly iterate on our deployments of bug fixes and new functionality.
Mountkirk Games wants you to secure the connectivity from the new gaming application platform to Google Cloud. You want to streamline the process and follow
Google-recommended practices. What should you do?

A. Configure Workload Identity and service accounts to be used by the application platform.

B. Use Kubernetes Secrets, which are obfuscated by default. Configure these Secrets to be used by the application platform.

C. Configure Kubernetes Secrets to store the secret, enable Application-Layer Secrets Encryption, and use Cloud Key Management Service (Cloud KMS) to manage the encryption keys. Configure these Secrets to be used by the application platform.

D. Configure HashiCorp Vault on Compute Engine, and use customer managed encryption keys and Cloud Key Management Service (Cloud KMS) to manage the encryption keys. Configure these Secrets to be used by the application platform.

You are working at a financial institution that stores mortgage loan approval documents on Cloud Storage. Any change to these approval documents must be uploaded as a separate approval file. You need to ensure that these documents cannot be deleted or overwritten for the next 5 years. What should you do?

A. Create a retention policy on the bucket for the duration of 5 years. Create a lock on the retention policy.

B. Create a retention policy organizational constraint constraints/storage.retentionPolicySeconds at the organization level. Set the duration to 5 years.

C. Use a customer-managed key for the encryption of the bucket. Rotate the key after 5 years.

D. Create a retention policy organizational constraint constraints/storage.retentionPolicySeconds at the project level. Set the duration to 5 years.

Your company uses the Firewall Insights feature in the Google Network Intelligence Center. You have several firewall rules applied to Compute Engine instances.
You need to evaluate the efficiency of the applied firewall ruleset. When you bring up the Firewall Insights page in the Google Cloud Console, you notice that there are no log rows to display. What should you do to troubleshoot the issue?

A. Enable Virtual Private Cloud (VPC) flow logging.

B. Enable Firewall Rules Logging for the firewall rules you want to monitor.

C. Verify that your user account is assigned the compute.networkAdmin Identity and Access Management (IAM) role.

D. Install the Google Cloud SDK, and verify that there are no Firewall logs in the command line output.

Company Overview -
TerramEarth manufactures heavy equipment for the mining and agricultural industries: about 80% of their business is from mining and 20% from agriculture. They currently have over 500 dealers and service centers in 100 countries. Their mission is to build products that make their customers more productive.
Company background -
TerramEarth was formed in 1946, when several small, family owned companies combined to retool after World War II. The company cares about their employees and customers and considers them to be extended members of their family.
TerramEarth is proud of their ability to innovate on their core products and find new markets as their customers' needs change. For the past 20 years, trends in the industry have been largely toward increasing productivity by using larger vehicles with a human operator.
Solution Concept -
There are 20 million TerramEarth vehicles in operation that collect 120 fields of data per second. Data is stored locally on the vehicle and can be accessed for analysis when a vehicle is serviced. The data is downloaded via a maintenance port. This same port can be used to adjust operational parameters, allowing the vehicles to be upgraded in the field with new computing modules.
Approximately 200,000 vehicles are connected to a cellular network, allowing TerramEarth to collect data directly. At a rate of 120 fields of data per second with 22 hours of operation per day, Terram Earth collects a total of about 9 TB/day from these connected vehicles.
Existing Technical Environment -

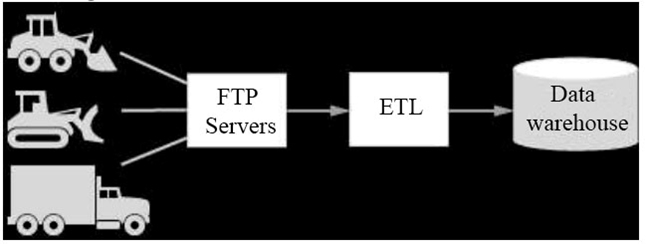

TerramEarth's existing architecture is composed of Linux-based systems that reside in a data center. These systems gzip CSV files from the field and upload via
FTP, transform and aggregate them, and place the data in their data warehouse. Because this process takes time, aggregated reports are based on data that is 3 weeks old.
With this data, TerramEarth has been able to preemptively stock replacement parts and reduce unplanned downtime of their vehicles by 60%. However, because the data is stale, some customers are without their vehicles for up to 4 weeks while they wait for replacement parts.
Business Requirements -
Decrease unplanned vehicle downtime to less than 1 week, without increasing the cost of carrying surplus inventory
Support the dealer network with more data on how their customers use their equipment to better position new products and services
Have the ability to partner with different companies `" especially with seed and fertilizer suppliers in the fast-growing agricultural business `" to create compelling joint offerings for their customers.
CEO Statement -
We have been successful in capitalizing on the trend toward larger vehicles to increase the productivity of our customers. Technological change is occurring rapidly, and TerramEarth has taken advantage of connected devices technology to provide our customers with better services, such as our intelligent farming equipment. With this technology, we have been able to increase farmers' yields by 25%, by using past trends to adjust how our vehicles operate. These advances have led to the rapid growth of our agricultural product line, which we expect will generate 50% of our revenues by 2020.
CTO Statement -
Our competitive advantage has always been in the manufacturing process, with our ability to build better vehicles for lower cost than our competitors. However, new products with different approaches are constantly being developed, and I'm concerned that we lack the skills to undergo the next wave of transformations in our industry. Unfortunately, our CEO doesn't take technology obsolescence seriously and he considers the many new companies in our industry to be niche players. My goals are to build our skills while addressing immediate market needs through incremental innovations.
Your agricultural division is experimenting with fully autonomous vehicles. You want your architecture to promote strong security during vehicle operation.
Which two architectures should you consider? (Choose two.)

A. Treat every micro service call between modules on the vehicle as untrusted.

B. Require IPv6 for connectivity to ensure a secure address space.

C. Use a trusted platform module (TPM) and verify firmware and binaries on boot.

D. Use a functional programming language to isolate code execution cycles.

E. Use multiple connectivity subsystems for redundancy.

F. Enclose the vehicle’s drive electronics in a Faraday cage to isolate chips.

Your organization has stored sensitive data in a Cloud Storage bucket. For regulatory reasons, your company must be able to rotate the encryption key used to encrypt the data in the bucket. The data will be processed in Dataproc. You want to follow Google-recommended practices for security. What should you do?

A. Create a key with Cloud Key Management Service (KMS). Encrypt the data using the encrypt method of Cloud KMS.

B. Create a key with Cloud Key Management Service (KMS). Set the encryption key on the bucket to the Cloud KMS key.

C. Generate a GPG key pair. Encrypt the data using the GPG key. Upload the encrypted data to the bucket.

D. Generate an AES-256 encryption key. Encrypt the data in the bucket using the customer-supplied encryption keys feature.

Company Overview -
Dress4Win is a web-based company that helps their users organize and manage their personal wardrobe using a website and mobile application. The company also cultivates an active social network that connects their users with designers and retailers. They monetize their services through advertising, e-commerce, referrals, and a premium app model.
Company Background -
Dress4Win's application has grown from a few servers in the founder's garage to several hundred servers and appliances in a collocated data center. However, the capacity of their infrastructure is now insufficient for the application's rapid growth. Because of this growth and the company's desire to innovate faster,
Dress4Win is committing to a full migration to a public cloud.
Solution Concept -
For the first phase of their migration to the cloud, Dress4Win is considering moving their development and test environments. They are also considering building a disaster recovery site, because their current infrastructure is at a single location. They are not sure which components of their architecture they can migrate as is and which components they need to change before migrating them.
Existing Technical Environment -
The Dress4Win application is served out of a single data center location.
Databases:
- MySQL - user data, inventory, static data
- Redis - metadata, social graph, caching
Application servers:
- Tomcat - Java micro-services
- Nginx - static content
- Apache Beam - Batch processing
Storage appliances:
- iSCSI for VM hosts
- Fiber channel SAN - MySQL databases
- NAS - image storage, logs, backups
Apache Hadoop/Spark servers:
- Data analysis
- Real-time trending calculations
MQ servers:
- Messaging
- Social notifications
- Events
Miscellaneous servers:
- Jenkins, monitoring, bastion hosts, security scanners
Business Requirements -
Build a reliable and reproducible environment with scaled parity of production.

Improve security by defining and adhering to a set of security and Identity and Access Management (IAM) best practices for cloud.
Improve business agility and speed of innovation through rapid provisioning of new resources.
Analyze and optimize architecture for performance in the cloud.
Migrate fully to the cloud if all other requirements are met.
Technical Requirements -
Evaluate and choose an automation framework for provisioning resources in cloud.
Support failover of the production environment to cloud during an emergency.
Identify production services that can migrate to cloud to save capacity.
Use managed services whenever possible.
Encrypt data on the wire and at rest.
Support multiple VPN connections between the production data center and cloud environment.
CEO Statement -
Our investors are concerned about our ability to scale and contain costs with our current infrastructure. They are also concerned that a new competitor could use a public cloud platform to offset their up-front investment and freeing them to focus on developing better features.
CTO Statement -
We have invested heavily in the current infrastructure, but much of the equipment is approaching the end of its useful life. We are consistently waiting weeks for new gear to be racked before we can start new projects. Our traffic patterns are highest in the mornings and weekend evenings; during other times, 80% of our capacity is sitting idle.
CFO Statement -
Our capital expenditure is now exceeding our quarterly projections. Migrating to the cloud will likely cause an initial increase in spending, but we expect to fully transition before our next hardware refresh cycle. Our total cost of ownership (TCO) analysis over the next 5 years puts a cloud strategy between 30 to 50% lower than our current model.
Dress4Win would like to become familiar with deploying applications to the cloud by successfully deploying some applications quickly, as is. They have asked for your recommendation.
What should you advise?

A. Identify self-contained applications with external dependencies as a first move to the cloud.

B. Identify enterprise applications with internal dependencies and recommend these as a first move to the cloud.

C. Suggest moving their in-house databases to the cloud and continue serving requests to on-premise applications.

D. Recommend moving their message queuing servers to the cloud and continue handling requests to on-premise applications.

Your company has decided to build a backup replica of their on-premises user authentication PostgreSQL database on Google Cloud Platform. The database is 4
TB, and large updates are frequent. Replication requires private address space communication.
Which networking approach should you use?

A. Google Cloud Dedicated Interconnect

B. Google Cloud VPN connected to the data center network

C. A NAT and TLS translation gateway installed on-premises

D. A Google Compute Engine instance with a VPN server installed connected to the data center network

You are moving an application that uses MySQL from on-premises to Google Cloud. The application will run on Compute Engine and will use Cloud SQL. You want to cut over to the Compute Engine deployment of the application with minimal downtime and no data loss to your customers. You want to migrate the application with minimal modification. You also need to determine the cutover strategy. What should you do?

A. 1. Set up Cloud VPN to provide private network connectivity between the Compute Engine application and the on-premises MySQL server. 2. Stop the on-premises application. 3. Create a mysqldump of the on-premises MySQL server. 4. Upload the dump to a Cloud Storage bucket. 5. Import the dump into Cloud SQL. 6. Modify the source code of the application to write queries to both databases and read from its local database. 7. Start the Compute Engine application. 8. Stop the on-premises application.

B. 1. Set up Cloud SQL proxy and MySQL proxy. 2. Create a mysqldump of the on-premises MySQL server. 3. Upload the dump to a Cloud Storage bucket. 4. Import the dump into Cloud SQL. 5. Stop the on-premises application. 6. Start the Compute Engine application.

C. 1. Set up Cloud VPN to provide private network connectivity between the Compute Engine application and the on-premises MySQL server. 2. Stop the on-premises application. 3. Start the Compute Engine application, configured to read and write to the on-premises MySQL server. 4. Create the replication configuration in Cloud SQL. 5. Configure the source database server to accept connections from the Cloud SQL replica. 6. Finalize the Cloud SQL replica configuration. 7. When replication has been completed, stop the Compute Engine application. 8. Promote the Cloud SQL replica to a standalone instance. 9. Restart the Compute Engine application, configured to read and write to the Cloud SQL standalone instance.

D. 1. Stop the on-premises application. 2. Create a mysqldump of the on-premises MySQL server. 3. Upload the dump to a Cloud Storage bucket. 4. Import the dump into Cloud SQL. 5. Start the application on Compute Engine.

Your company has a Google Cloud project that uses BigQuery for data warehousing on a pay-per-use basis. You want to monitor queries in real time to discover the most costly queries and which users spend the most. What should you do?

A. 1. In the BigQuery dataset that contains all the tables to be queried, add a label for each user that can launch a query. 2. Open the Billing page of the project. 3. Select Reports. 4. Select BigQuery as the product and filter by the user you want to check.

B. 1. Create a Cloud Logging sink to export BigQuery data access logs to BigQuery. 2. Perform a BigQuery query on the generated table to extract the information you need.

C. 1. Create a Cloud Logging sink to export BigQuery data access logs to Cloud Storage. 2. Develop a Dataflow pipeline to compute the cost of queries split by users.

D. 1. Activate billing export into BigQuery. 2. Perform a BigQuery query on the billing table to extract the information you need.

You need to reduce the number of unplanned rollbacks of erroneous production deployments in your company's web hosting platform. Improvement to the QA/
Test processes accomplished an 80% reduction.
Which additional two approaches can you take to further reduce the rollbacks? (Choose two.)

A. Introduce a green-blue deployment model

B. Replace the QA environment with canary releases

C. Fragment the monolithic platform into microservices

D. Reduce the platform’s dependency on relational database systems

E. Replace the platform’s relational database systems with a NoSQL database

Your company creates rendering software which users can download from the company website. Your company has customers all over the world. You want to minimize latency for all your customers. You want to follow Google-recommended practices.
How should you store the files?

A. Save the files in a Multi-Regional Cloud Storage bucket.

B. Save the files in a Regional Cloud Storage bucket, one bucket per zone of the region.

C. Save the files in multiple Regional Cloud Storage buckets, one bucket per zone per region.

D. Save the files in multiple Multi-Regional Cloud Storage buckets, one bucket per multi-region.
