Which is a fact related to FTP?

A. It uses two separate connections for control and data traffic.

B. It uses block numbers to identify and mitigate data-transfer errors.

C. It always operates without user authentication.

D. It relies on the well-known UDP port 69.

Drag and drop the descriptions of file transfer protocols from the left onto the correct protocols on the right.

Select and Place:

Drag and drop the networking parameters from the left on to the correct values on the right.

Select and Place:

Refer to the exhibit. Which statement about the interface that generated the output is true?

A. A syslog message is generated when a violation occurs.

B. One secure MAC address is manually configured on the interface.

C. One secure MAC address is dynamically learned on the interface.

D. Five secure MAC addresses are dynamically learned on the interface.

Which protocol should be used to transfer large files on a company intranet that allows TCP 20 and 21 through the firewall?

A. SMTP

B. REST API

C. TFTP

D. FTP

Refer to the exhibit. PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?

A. router A

B. router B

C. router C

D. router D

Which benefit does Cisco DNA Center provide over traditional campus management?

A. Cisco DNA Center automates HTTPS for secure web access, and traditional campus management uses HTTP.

B. Cisco DNA Center leverages SNMPv3 for encrypted management, and traditional campus management uses SNMPv2.

C. Cisco DNA Center leverages APIs, and traditional campus management requires manual data gathering.

D. Cisco DNA Center automates SSH access for encrypted entry, and SSH is absent from traditional campus management.

Drag and drop the Ansible terms from the left onto the right.

Select and Place:

Drag and drop the IPv6 addresses from the left onto the corresponding address types on the right.

Select and Place:

Which two components are needed to create an Ansible script that configures a VLAN on a switch? (Choose two.)

A. playbook

B. recipe

C. model

D. cookbook

E. task

DRAG DROP
-
Drag and drop the characteristic from the left onto the IPv6 address type on the right.


What is the role of nonoverlapping channels in a wireless environment?

A. to increase bandwidth

B. to stabilize the RF environment

C. to allow for channel bonding

D. to reduce interference

A network administrator is setting up a new IPv6 network using the 64-bit address 2001:0EB8:00C1:2200:0001:0000:0000:0331/64. To simplify the configuration, the administrator has decided to compress the address. Which IP address must the administrator configure?

A. ipv6 address 2001:EB8:C1:22:1::331/64

B. ipv6 address 21:EB8:C1:2200:1::331/64

C. ipv6 address 2001:EB8:C1:2200:1:0000:331/64

D. ipv6 address 2001:EB8:C1:2200:1::331/64

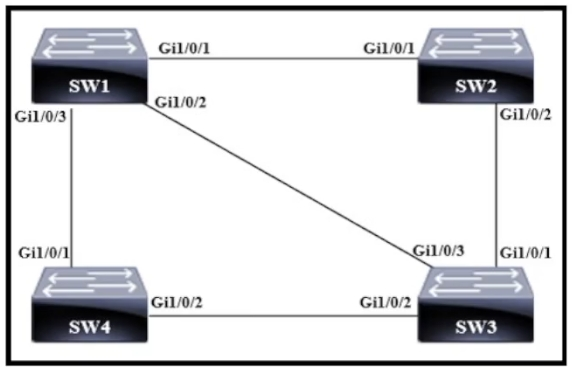

Refer to the exhibit. Which switch becomes the root bridge?

A. SW 1 –
Bridge Priority – 32768 –
mac-address 0f:d7:9e:13:ab:82

B. SW 2 –
Bridge Priority – 40960 –
mac-address 05:d8:33:09:8f:89

C. SW 3 –
Bridge Priority – 32768 –
mac-address 01:1c:6c:66:b7:70

D. SW 4 –
Bridge Priority – 40960 –
mac-address 04:44:97:51:63:17

Which HTTP status code is returned after a successful REST API request?

A. 200

B. 301

C. 404

D. 500

What is a characteristic of frame switching?

A. performs a lookup to learn the destination interface

B. disabled by default on all interfaces and VLANs

C. buffers and forwards frames with less than 5 CRCs

D. protects against denial of service attacks

Which Windows command is used instead of the route print command to display the contents of the IP routing table?

A. ipconfig

B. netstat -r

C. netstat -n

D. ifconfig

Drag and drop the statements about device management from the left onto the corresponding types on the right.

Select and Place:

Which enhancements were implemented as part of WPA3?

A. Forward secrecy and SAE in personal mode for secure initial key exchange

B. 802.1x authentication and AES-128 encryption

C. AES-64 in personal mode and AES-128 in enterprise mode

D. TKIP encryption improving WEP and per-packet keying

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

Select and Place:

How does MAC learning function on a switch?

A. associates the MAC address with the port on which it is received

B. rewrites the source and destination MAC address

C. broadcasts frames to all ports without queueing

D. sends an ARP request to locate unknown destinations

Drag and drop the characteristics of a cloud environment from the left onto the correct examples on the right.

Select and Place:

When a switch receives a frame for a known destination MAC address, how is the frame handled?

A. flooded to all ports except the one from which it originated

B. forwarded to the first available port

C. sent to the port identified for the known MAC address

D. broadcast to all ports

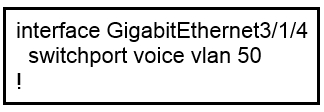

Refer to the exhibit. An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the
GigabitEthernet 3/1/4 port on a switch?

A. The phone and a workstation that is connected to the phone do not have VLAN connectivity.

B. The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1.

C. The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity.

D. The phone and a workstation that is connected to the phone send and receive data in VLAN 50.

Refer to the exhibit. Which type of JSON data is shown?

A. Boolean

B. string

C. object

D. sequence

What are two benefits that the UDP protocol provide for application traffic? (Choose two.)

A. UDP traffic has lower overhead than TCP traffic

B. UDP provides a built-in recovery mechanism to retransmit lost packets

C. The CTL field in the UDP packet header enables a three-way handshake to establish the connection

D. UDP maintains the connection state to provide more stable connections than TCP

E. The application can use checksums to verify the integrity of application data AE

Drag and drop the TCP/IP protocols from the left onto their primary transmission protocols on the right.

Select and Place:

Which characteristic differentiates the concept of authentication from authorization and accounting?

A. consumption-based billing

B. identity verification

C. user-activity logging

D. service limitations

Which QoS queuing method discards or marks packets that exceed the desired bit rate of traffic flow?

A. CBWFQ

B. policing

C. LLQ

D. shaping

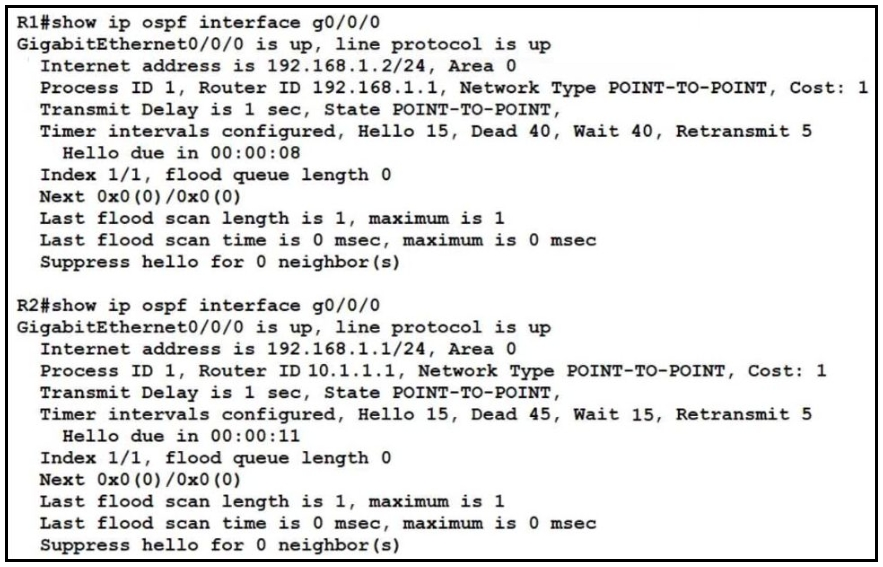

Refer to the exhibit. The network engineer is configuring router R2 as a replacement router on the network. After the initial configuration is applied, it is determined that R2 failed to show R1 as a neighbor. Which configuration must be applied to R2 to complete the OSPF configuration and enable it to establish the neighbor relationship with R1?

A. R2(config)#router ospf 1 R2(config-router)#network 192.168.1.0 255.255.255.0 area 2

B. R2(config)#interface g0/0/0 R2(config-if)#ip ospf hello-interval 10

C. R2(config)#interface g0/0/0 R2(config-if)#ip ospf dead-interval 40

D. R2(config)#router ospf 1 R2(config-router)#router-id 192.168.1.2

Which AP mode is used for capturing wireless traffic and forwarding that traffic to a PC that is running a packet analyzer?

A. bridge

B. monitor

C. rouge detector

D. sniffer

Refer to the exhibit. PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?

A. router A

B. router B

C. router C

D. router D

Refer to the exhibit. All routers in the network are configured correctly, and the expected routes are being exchanged among the routers. Which set of routes are learned from neighbors and installed on router 2?

A. 10.129.9.0/2310.139.2.0/3010.2.191.0/3010.129.9.0/25

B. 10.129.9.0/2310.40.1.0/3010.2.191.0/3010.129.9.0/25

C. 10.40.1.0/3010.139.2.0/3010.2.191.0/3010.129.9.0/25

D. 10.129.9.0/2310.139.2.0/3010.129.9.0/2510.22.1.0/24

Refer to the exhibit. Which type of JSON data is shown?

A. boolean

B. array

C. key

D. object

Which port-security violation mode drops traffic from unknown MAC addresses and forwards an SNMP trap?

A. shutdown VLAN

B. protect

C. restrict

D. shutdown

The service password-encryption command is entered on a router. What is the effect of this configuration?

A. restricts unauthorized users from viewing clear-text passwords in the running configuration

B. prevents network administrators from configuring clear-text passwords

C. protects the VLAN database from unauthorized PC connections on the switch

D. encrypts the password exchange when a VPN tunnel is established

Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?
SW1 0С:0A:05:22:05:97 -
SW2 0С:4A:82:07:57:58 -
SW3 0C:0A:A8:1A:3C:9D -
SW4 0С:0A:18:A1:B3:19

A. SW1

B. SW2

C. SW3

D. SW4

Which type of hypervisor operates without an underlying OS to host virtual machines?

A. Type 1

B. Type 2

C. Type 3

D. Type 12

What is the same for both copper and fiber interfaces when using SFP modules?

A. They support an inline optical attenuator to enhance signal strength

B. They accommodate single-mode and multi-mode in a single module

C. They provide minimal interruption to services by being hot-swappable

D. They offer reliable bandwidth up to 100 Mbps in half duplex mode

Which is a reason to implement IPv4 private addressing?

A. Comply with PCI regulations.

B. Reduce the size of the forwarding table on network routers.

C. Reduce the risk of a network security breach.

D. Comply with local law.

You are configuring your edge routers interface with a public IP address for Internet connectivity. The router needs to obtain the IP address from the service provider dynamically.
Which command is needed on interface FastEthernet 0/0 to accomplish this?

A. ip default-gateway

B. ip route

C. ip default-network

D. ip address dhcp

E. ip address dynamic

Drag and drop the REST API call methods for HTTP from the left onto the actions they perform on the right. Not all methods are used.

Select and Place:

Drag and drop the IPv6 address details from the left onto the corresponding types on the right.

Select and Place:

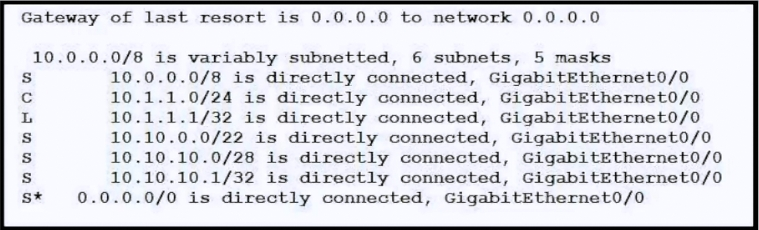

Refer to the exhibit. Which IP route command created the best path for a packet destined for 10.10.10.3?

A. ip route 10.10.0.0 255.255.252.0 g0/0

B. ip route 10.10.10.0 255.255.255.240 g0/0

C. ip route 10.0.0.0 255.0.0.0 g0/0

D. ip route 10.10.10.1 255.255.255.255 g0/0

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

Select and Place:

Which IPv6 address range is suitable for anycast addresses for distributed services such as DHCP or DNS?

A. FF00:1/12

B. 2001:db8:0234:ca3e::1/128

C. FE80::1/10

D. 2002:db84:3f30:ca84:be76:2/64

Which set of 2 4 GHz nonoverlapping wireless channels is standard in the United States?

A. channels 1, 6, 11, and 14

B. channels 2, 7, 9, and 11

C. channels 2, 7, and 11

D. channels 1, 6, and 11

Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.

Select and Place:

What is a function of MAC learning on a switch?

A. MAC address learning is disabled by default on all VLANs.

B. Frames received for a destination MAC address not listed in the address table are dropped.

C. The MAC address table is used to populate the ARP table.

D. A static MAC address is manually added to the MAC table.

Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

A. 2001:db8:d955:1697:1130:ABFF:FECC:1

B. 2001:db8:d955:1697:4657:149F:FE65:1

C. 2001:db8:d955:1697:11D8:BFFF:FE69:1

D. 2001:db8:d955:1697:12D8:BAFE:FF01:1
