AZ-103 Practice Exam Free – 50 Questions to Simulate the Real Exam

Are you getting ready for the AZ-103 certification? Take your preparation to the next level with our AZ-103 Practice Exam Free – a carefully designed set of 50 realistic exam-style questions to help you evaluate your knowledge and boost your confidence.

Using a AZ-103 practice exam free is one of the best ways to:

  • Experience the format and difficulty of the real exam
  • Identify your strengths and focus on weak areas
  • Improve your test-taking speed and accuracy

Below, you will find 50 realistic AZ-103 practice exam free questions covering key exam topics. Each question reflects the structure and challenge of the actual exam.

Question 1

You have an Azure subscription named Subscription1 that contains an Azure virtual network named VM1. VM1 is in a resource group named RG1.
VM1 runs services that will be used to deploy resources to RG1.
You need to ensure that a service running on VM1 can manage the resources in RG1 by using the identity of VM1.
What should you do first?

A. From the Azure portal, modify the Access control (IAM) settings of RG1.

B. From the Azure portal, modify the Policies settings of RG1.

C. From the Azure portal, modify the Access control (IAM) settings of VM1.

D. From the Azure portal, modify the value of the Managed Service Identity option for VM1.




Suggested Answer: D

The managed identities for Azure resources feature in Azure Active Directory (Azure AD) solves this problem. The feature provides Azure services with an automatically managed identity in Azure AD. You can use the identity to authenticate to any service that supports Azure AD authentication, including Key Vault, without any credentials in your code.
References:
https://docs.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/overview

Question 2

You have an Azure subscription that contains the following resources:
✑ 100 Azure virtual machines
✑ 20 Azure SQL databases
✑ 50 Azure file shares
You need to create a daily backup of all the resources by using Azure Backup.
What is the minimum number of backup policies that you must create?

A. 1

B. 2

C. 3

D. 150

E. 170




Suggested Answer: C

There is a limit of 100 VMs that can be associated to the same backup policy from portal. We recommend that for more than 100 VMs, create multiple backup policies with same schedule or different schedule.
One policy for VMS, one for SQL databases, and one for the file shares.
References:
https://docs.microsoft.com/en-us/azure/backup/backup-azure-vm-backup-faq

Question 3

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure Active Directory (Azure AD) tenant named Adatum and an Azure Subscription named Subscription1. Adatum contains a group named
Developers. Subscription1 contains a resource group named Dev.
You need to provide the Developers group with the ability to create Azure logic apps in the Dev resource group.
Solution: On Dev, you assign the Contributor role to the Developers group.
Does this meet the goal?

A. Yes

B. No




Suggested Answer: A

The Contributor role can manage all resources (and add resources) in a Resource Group.

Question 4

DRAG DROP -
You have an Azure subscription that contains two virtual networks named VNet1 and VNet2. Virtual machines connect to the virtual networks.
The virtual networks have the address spaces and the subnets configured as shown in the following table.
You need to add the address space of 10.33.0.0/16 to VNet1. The solution must ensure that the hosts on VNet1 and VNet2 can communicate.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Suggested Answer:
Correct Answer Image

Step 1: Remove peering between Vnet1 and VNet2.
You can’t add address ranges to, or delete address ranges from a virtual network’s address space once a virtual network is peered with another virtual network.
To add or remove address ranges, delete the peering, add or remove the address ranges, then re-create the peering.
Step 2: Add the 10.44.0.0/16 address space to VNet1.
Step 3: Recreate peering between VNet1 and VNet2
References:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-manage-peering

Question 5

HOTSPOT -
Your network contains an Active Directory domain named adatum.com and an Azure Active Directory (Azure AD) tenant named adatum.onmicorosft.com.
Adatum.com contains the user accounts in the following table.
Adatum.onmicrosoft.com contains the user accounts in the following table.
You need to implement Azure AD Connect. The solution must follow the principle of least privilege.
Which user accounts should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image

Box 1: User5 –
In Express settings, the installation wizard asks for the following:
AD DS Enterprise Administrator credentials
Azure AD Global Administrator credentials
The AD DS Enterprise Admin account is used to configure your on-premises Active Directory. These credentials are only used during the installation and are not used after the installation has completed. The Enterprise Admin, not the Domain Admin should make sure the permissions in Active Directory can be set in all domains.
Box 2: UserA –
Azure AD Global Admin credentials are only used during the installation and are not used after the installation has completed. It is used to create the Azure AD
Connector account used for synchronizing changes to Azure AD. The account also enables sync as a feature in Azure AD.
Reference:
https://docs.microsoft.com/en-us/azure/active-directory/connect/active-directory-aadconnect-accounts-permissions

Question 6

Your company has an Azure subscription named Subscription1.
The company also has two on-premises servers named Server1 and Server2 that run Windows Server 2016. Server1 is configured as a DNS server that has a primary DNS zone named adatum.com. Adatum.com contains 1,000 DNS records.
You manage Server1 and Subscription1 from Server2. Server2 has the following tools installed:
✑ The DNS Manager console
✑ Azure PowerShell
✑ Azure CLI 2.0
You need to move the adatum.com zone to Subscription1. The solution must minimize administrative effort.
What should you use?

A. the Azure portal

B. the DNS Manager console

C. Azure PowerShell

D. Azure CLI




Suggested Answer: D

Azure DNS supports importing and exporting zone files by using the Azure command-line interface (CLI). Zone file import is not currently supported via Azure
PowerShell or the Azure portal.
References:
https://docs.microsoft.com/en-us/azure/dns/dns-import-export

Question 7

You have an Azure subscription named Subscription1. Subscription1 contains a virtual machine named VM1.
You have a computer named Computer1 that runs Windows 10. Computer1 is connected to the Internet.
You add a network interface named Interface1 to VM1 as shown in the exhibit. (Click the Exhibit tab.)
From Computer1, you attempt to connect to VM1 by using Remote Desktop, but the connection fails.
You need to establish a Remote Desktop connection to VM1.
What should you do first?

A. Change the priority of the RDP rule.

B. Attach a network interface.

C. Delete the DenyAllInBound rule.

D. Start VM1.




Suggested Answer: D

Incorrect Answers:
A: Rules are processed in priority order, with lower numbers processed before higher numbers, because lower numbers have higher priority. Once traffic matches a rule, processing stops. RDP already has the lowest number and thus the highest priority.
B: The network interface has already been added to VM.
C: The Outbound rules are fine.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview

Question 8

DRAG DROP -
You have two Azure virtual machines named VM1 and VM2. VM1 has a single data disk named Disk1.
You need to attach Disk1 to VM2. The solution must minimize downtime for both virtual machines.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Suggested Answer:
Correct Answer Image

Step 1: Stop VM1.
Step 2: Detach Disk1 from VM1.
Step 3: Attach Disk1 to VM2 –
Attach an existing disk –
Follow these steps to reattach an existing available data disk to a running VM.
1. Select a running VM for which you want to reattach a data disk.
2. From the menu on the left, select Disks.
3. Select Attach existing to attach an available data disk to the VM.
4. From the Attach existing disk pane, select OK.
Step 4: Start VM1.
Detach a data disk using the portal
1. In the left menu, select Virtual Machines.
2. Select the virtual machine that has the data disk you want to detach and click Stop to deallocate the VM.
3. In the virtual machine pane, select Disks.
4. At the top of the Disks pane, select Edit.
5. In the Disks pane, to the far right of the data disk that you would like to detach, click the Detach button image detach button.
6. After the disk has been removed, click Save on the top of the pane.
7. In the virtual machine pane, click Overview and then click the Start button at the top of the pane to restart the VM.
8. The disk stays in storage but is no longer attached to a virtual machine.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/detach-disk
https://docs.microsoft.com/en-us/azure/lab-services/devtest-lab-attach-detach-data-disk

Question 9

You have the Azure virtual networks shown in the following table.
To which virtual networks can you establish a peering connection from VNet1?

A. VNet2 and VNet3 only

B. VNet2 only

C. VNet3 and VNet4 only

D. VNet2, VNet3, and VNet4




Suggested Answer: D

References:
https://docs.microsoft.com/en-us/azure/virtual-network/tutorial-connect-virtual-networks-portal

Question 10

You need to resolve the licensing issue before you attempt to assign the license again.
What should you do?

A. From the Groups blade, invite the user accounts to a new group.

B. From the Profile blade, modify the usage location.

C. From the Directory role blade, modify the directory role.




Suggested Answer: A

License cannot be assigned to a user without a usage location specified.
Scenario: Licensing Issue –
You attempt to assign a license in Azure to several users and receive the following error message: “Licenses not assigned. License agreement failed for one user.”
You verify that the Azure subscription has the available licenses.

Question 11

HOTSPOT -
You have an Azure subscription that contains a virtual network named VNet1. VNet1 uses an IP address space of 10.0.0.0/16 and contains the subnets in the following table.
Subnet1 contains a virtual appliance named VM1 that operates as a router.
You create a routing table named RT1.
You need to route all inbound traffic from the VPN gateway to VNet1 through VM1.
How should you configure RT1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image



Question 12

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
Use the following login credentials as needed:
Azure Username: XXXXXXX -
Azure Password: XXXXXXX -
The following information is for technical support purposes only:
Lab Instance: 9172796 -
You plan to back up all the Azure virtual machines in your Azure subscription at 02:00 Coordinated Universal Time (UTC) daily.
You need to prepare the Azure environment to ensure that any new virtual machines can be configured quickly for backup. The solution must ensure that all the daily backups performed at 02:00 UTC are stored for only 90 days.
What should you do from your Recovery Services vault on the Azure portal?




Suggested Answer: See solution below.

Task A: Create a Recovery Services vault (if a vault already exists skip this task, go to Task B below)

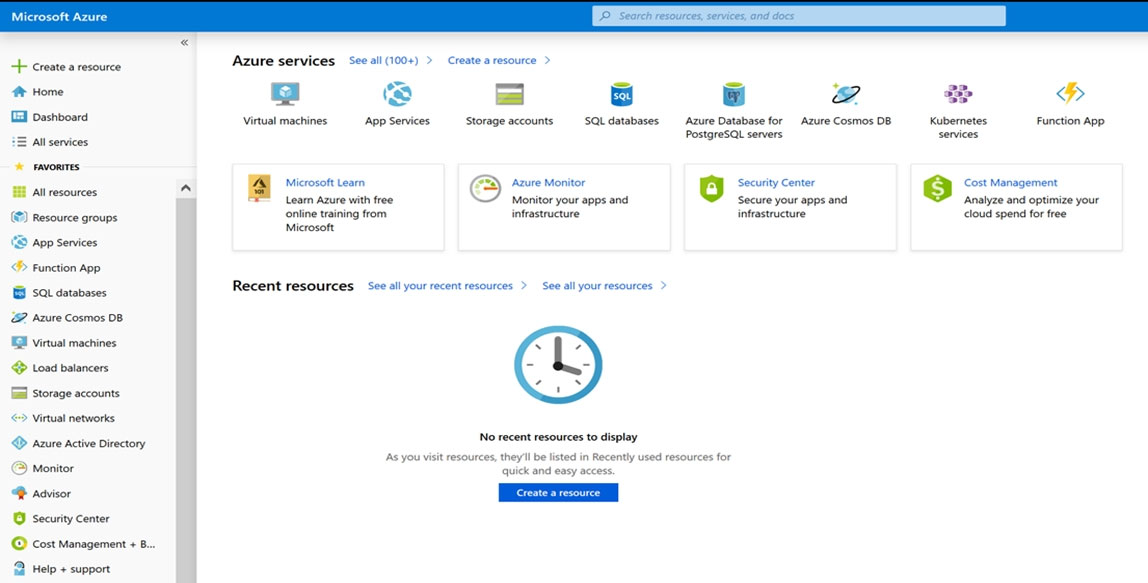

A1. From Azure Portal, On the Hub menu, click All services and in the list of resources, type Recovery Services and click Recovery Services vaults.
If there are recovery services vaults in the subscription, the vaults are listed.
A2. On the Recovery Services vaults menu, click Add.
A3. The Recovery Services vault blade opens, prompting you to provide a Name, Subscription, Resource group, and Location
Task B.
B1. On the Recovery Services vault blade (for the vault you just created), in the Getting Started section, click Backup, then on the Getting Started with Backup blade, select Backup goal.

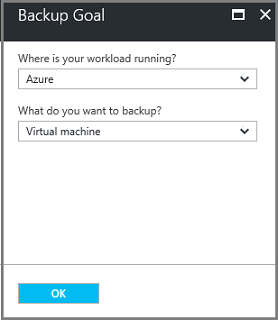

The Backup Goal blade opens. If the Recovery Services vault has been previously configured, then the Backup Goal blades opens when you click Backup on the
Recovery Services vault blade.
B2. From the Where is your workload running? drop-down menu, select Azure.
B3. From the What do you want to backup? menu, select Virtual Machine, and click OK.
Reference Image
B4. Finish the Wizard.
Task C. create a backup schedule

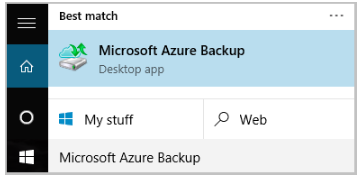

C1. Open the Microsoft Azure Backup agent. You can find it by searching your machine for Microsoft Azure Backup.
Reference Image
C2. In the Backup agent’s Actions pane, click Schedule Backup to launch the Schedule Backup Wizard.
Reference Image
C3. On the Getting started page of the Schedule Backup Wizard, click Next.
C4. On the Select Items to Backup page, click Add Items.
The Select Items dialog opens.
C5. Select Blob Storage you want to protect, and then click OK.
C6. In the Select Items to Backup page, click Next.

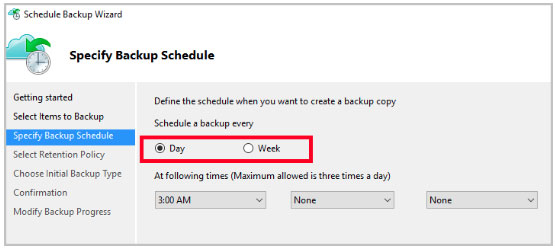

On the Specify Backup Schedule page, specify
Schedule a backup every: day –
At the following times: 2.00 AM –
Reference Image
C7. On the Select Retention Policy page, set it to 90 days, and click Next.
Reference Image
C8. Finish the Wizard.
References: alt=”Reference Image” />
B4. Finish the Wizard.
Task C. create a backup schedule
C1. Open the Microsoft Azure Backup agent. You can find it by searching your machine for Microsoft Azure Backup.
Reference Image
C2. In the Backup agent’s Actions pane, click Schedule Backup to launch the Schedule Backup Wizard.
Reference Image
C3. On the Getting started page of the Schedule Backup Wizard, click Next.
C4. On the Select Items to Backup page, click Add Items.
The Select Items dialog opens.
C5. Select Blob Storage you want to protect, and then click OK.
C6. In the Select Items to Backup page, click Next.
On the Specify Backup Schedule page, specify
Schedule a backup every: day –
At the following times: 2.00 AM –
Reference Image
C7. On the Select Retention Policy page, set it to 90 days, and click Next.
<img src=”https://www.examtopics.com/assets/media/exam-media/03048/0017300002.jpg” alt=”Reference Image” />
C8. Finish the Wizard.
References:
https://docs.microsoft.com/en-us/azure/backup/backup-configure-vault

Question 13

HOTSPOT -
You are evaluating the name resolution for the virtual machines after the planned implementation of the Azure networking infrastructure.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Hot Area:




Suggested Answer: Explanation

Box 1: Yes –
All client computers in the Paris office will be joined to an Azure AD domain.
A virtual network named Paris-VNet that will contain two subnets named Subnet1 and Subnet2
Box 2: Yes –
A virtual network named ClientResources-VNet that will contain one subnet named ClientSubnet
You plan to create a private DNS zone named humongousinsurance.local and set the registration network to the ClientResources-VNet virtual network.
Box 3: No –
Only VMs in the registration network, here the ClientResources-VNet, will be able to register hostname records.
References:
https://docs.microsoft.com/en-us/azure/dns/private-dns-overview

Question 14

HOTSPOT -
You have Azure Storage accounts as shown in the following exhibit.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image

Box 1: storageaccount1 and storageaccount2 only
Box 2: All the storage accounts –
Note: The three different storage account options are: General-purpose v2 (GPv2) accounts, General-purpose v1 (GPv1) accounts, and Blob storage accounts.
✑ General-purpose v2 (GPv2) accounts are storage accounts that support all of the latest features for blobs, files, queues, and tables.
✑ Blob storage accounts support all the same block blob features as GPv2, but are limited to supporting only block blobs.
✑ General-purpose v1 (GPv1) accounts provide access to all Azure Storage services, but may not have the latest features or the lowest per gigabyte pricing.
References:
https://docs.microsoft.com/en-us/azure/storage/common/storage-account-options

Question 15

HOTSPOT -
You have an Azure subscription named Subscription1 that contains a virtual network named VNet1.
You add the users in the following table.
Which user can perform each configuration? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:

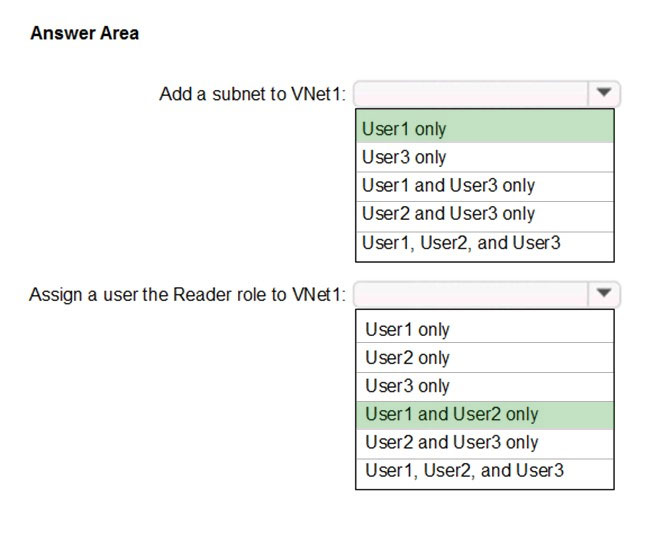

Correct Answer Image

Box 1: User1 only.
User1: The Owner Role lets you manage everything, including access to resources.
Not User3: The Network Contributor role lets you manage networks, but not access to them.
Box 2: User1 and User2 only –
The Security Admin role: In Security Center only: Can view security policies, view security states, edit security policies, view alerts and recommendations, dismiss alerts and recommendations.
Reference:
https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles

Question 16

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure subscription that contains 10 virtual networks. The virtual networks are hosted in separate resource groups.
Another administrator plans to create several network security groups (NSGs) in the subscription.
You need to ensure that when an NSG is created, it automatically blocks TCP port 8080 between the virtual networks.
Solution: You configure a custom policy definition, and then you assign the policy to the subscription.
Does this meet the goal?

A. Yes

B. No




Suggested Answer: A

Resource policy definition used by Azure Policy enables you to establish conventions for resources in your organization by describing when the policy is enforced and what effect to take. By defining conventions, you can control costs and more easily manage your resources.
Reference:
https://docs.microsoft.com/en-us/azure/azure-policy/policy-definition

Question 17

You have two Azure virtual machines named VM1 and VM2. You have two Recovery Services vaults named RSV1 and RSV2.
VM2 is protected by RSV1.
You need to use RSV2 to protect VM2.
What should you do first?

A. From the VM2 blade, click Disaster recovery, click Replication settings, and then select RSV2 as the Recovery Services vault.

B. From the RSV2 blade, click Backup. From the Backup blade, select the backup for the virtual machine, and then click Backup.

C. From the RSV1 blade, click Backup Jobs and export the VM2 job.

D. From the RSV1 blade, click Backup items and stop the VM2 backup.




Suggested Answer: A

Reference:
https://docs.microsoft.com/en-us/azure/backup/backup-azure-vms-first-look-arm

Question 18

HOTSPOT -
You need to identify the storage requirements for Contoso.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer: Explanation

Box 1: Yes –
Contoso is moving the existing product blueprint files to Azure Blob storage.
Use unmanaged standard storage for the hard disks of the virtual machines. We use Page Blobs for these.
Box 2: No –
Box 3: No

Question 19

You have a public load balancer that balances ports 80 and 443 across three virtual machines.
You need to direct all the Remote Desktop Protocol (RDP) connections to VM3 only.
What should you configure?

A. an inbound NAT rule

B. a load balancing rule

C. a new public load balancer for VM3

D. a frontend IP configuration




Suggested Answer: A

References:
https://docs.microsoft.com/en-us/azure/load-balancer/tutorial-load-balancer-port-forwarding-portal
https://pixelrobots.co.uk/2017/08/azure-load-balancer-for-rds/

Question 20

HOTSPOT -
You have an Azure subscription named Subscription1 that has a subscription ID of c276fc76-9cd4-44c9-99a7-4fd71546436e.
You need to create a custom RBAC role named CR1 that meets the following requirements:
✑ Can be assigned only to the resource groups in Subscription1
✑ Prevents the management of the access permissions for the resource groups
✑ Allows the viewing, creating, modifying, and deleting of resource within the resource groups
What should you specify in the assignable scopes and the permission elements of the definition of CR1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image

References:
https://docs.microsoft.com/en-us/azure/role-based-access-control/custom-roles
https://docs.microsoft.com/en-us/azure/role-based-access-control/resource-provider-operations#microsoftresources

Question 21

You have an Azure Active Directory (Azure AD) tenant.
You have an existing Azure AD conditional access policy named Policy1. Policy1 enforces the use of Azure AD-joined devices when members of the Global
Administrators group authenticate to Azure AD from untrusted locations.
You need to ensure that members of the Global Administrators group will also be forced to use multi-factor authentication when authenticating from untrusted locations.
What should you do?

A. From the Azure portal, modify session control of Policy1.

B. From the multi-factor authentication page, modify the user settings.

C. From the Azure portal, modify grant control of Policy1.

D. From the multi-factor authentication page, modify the service settings.




Suggested Answer: C

There are two types of controls:
✑ Grant controls “” To gate access
✑ Session controls “” To restrict access to a session
Grant controls oversee whether a user can complete authentication and reach the resource that they’re attempting to sign-in to. If you have multiple controls selected, you can configure whether all of them are required when your policy is processed. The current implementation of Azure Active Directory enables you to set the following grant control requirements:
Reference Image
Reference: alt=”Reference Image” />
Reference:
https://blog.lumen21.com/2017/12/15/conditional-access-in-azure-active-directory/

Question 22

You need to recommend an identity solution that meets the technical requirements.
What should you recommend?

A. Pass-through Authentication and single sign-on (SSO)

B. password hash synchronization and single sign-on (SSO)

C. federated single sign-on (SSO) and Active Directory Federation Services (AD FS)

D. cloud-only user accounts




Suggested Answer: A

Azure Active Directory (Azure AD) Pass-through Authentication allows users to sign in to both on-premises and cloud-based applications using the same passwords. When users sign in using Azure AD, this feature validates users’ passwords directly against your on-premises Active Directory. On-premises passwords are never stored in the cloud in any form.
Scenario: Technical Requirements include:
Prevent user passwords or hashes of passwords from being stored in Azure.
Reference:
https://docs.microsoft.com/en-us/azure/active-directory/hybrid/how-to-connect-pta

Question 23

DRAG DROP -
You have an on-premises file server named Server1 that runs Windows Server 2016.
You have an Azure subscription that contains an Azure file share.
You deploy an Azure File Sync Storage Sync Service, and you create a sync group.
You need to synchronize files from Server1 to Azure.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Suggested Answer:
Correct Answer Image

Step 1: Install the Azure File Sync agent on Server1
The Azure File Sync agent is a downloadable package that enables Windows Server to be synced with an Azure file share
Step 2: Register Server1.
Register Windows Server with Storage Sync Service
Registering your Windows Server with a Storage Sync Service establishes a trust relationship between your server (or cluster) and the Storage Sync Service.
Step 3: Add a server endpoint –
Create a sync group and a cloud endpoint.
A sync group defines the sync topology for a set of files. Endpoints within a sync group are kept in sync with each other. A sync group must contain one cloud endpoint, which represents an Azure file share and one or more server endpoints. A server endpoint represents a path on registered server.
References:
https://docs.microsoft.com/en-us/azure/storage/files/storage-sync-files-deployment-guide

Question 24

HOTSPOT -
You have an Azure subscription.
You plan to use Azure Resource Manager templates to deploy 50 Azure virtual machines that will be part of the same availability set.
You need to ensure that as many virtual machines as possible are available if the fabric fails or during servicing.
How should you configure the template? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer: Explanation

Use two fault domains.
2 or 3 is max value, depending on which region you are in.
Use 20 for platformUpdateDomainCount
Increasing the update domain (platformUpdateDomainCount) helps with capacity and availability planning when the platform reboots nodes. A higher number for the pool (20 is max) means that fewer of their nodes in any given availability set would be rebooted at once.
References:
https://www.itprotoday.com/microsoft-azure/check-if-azure-region-supports-2-or-3-fault-domains-managed-disks
https://github.com/Azure/acs-engine/issues/1030

Question 25

You have an Azure virtual machine named VM1 that you use for testing. VM1 is protected by Azure Backup.
You delete VM1.
You need to remove the backup data stored for VM1.
What should you do first?

A. Delete the Recovery Services vault.

B. Delete the storage account.

C. Stop the backup

D. Modify the backup policy.




Suggested Answer: D

Azure Backup provides backup for virtual machines “” created through both the classic deployment model and the Azure Resource Manager deployment model “” by using custom-defined backup policies in a Recovery Services vault.
With the release of backup policy management, customers can manage backup policies and model them to meet their changing requirements from a single window. Customers can edit a policy, associate more virtual machines to a policy, and delete unnecessary policies to meet their compliance requirements.
Incorrect Answers:
B: You can’t delete a Recovery Services vault if it is registered to a server and holds backup data. If you try to delete a vault, but can’t, the vault is still configured to receive backup data.
References:
https://azure.microsoft.com/en-in/updates/azure-vm-backup-policy-management/

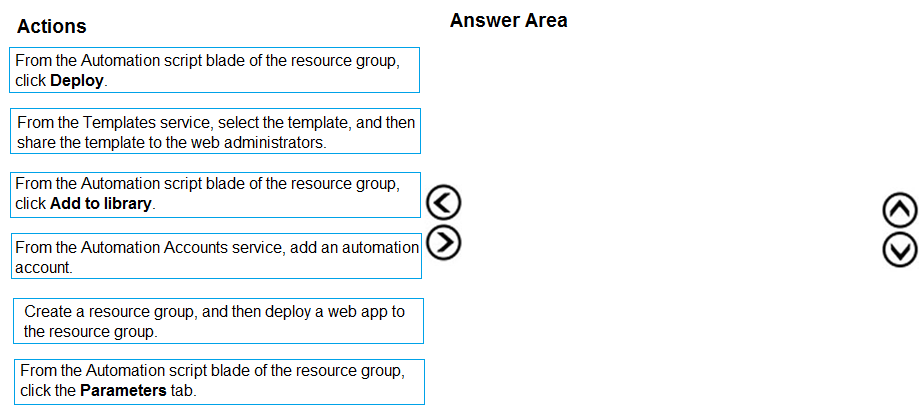

Question 26

DRAG DROP -
You need to prepare the environment to ensure that the web administrators can deploy the web apps as quickly as possible.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Suggested Answer:

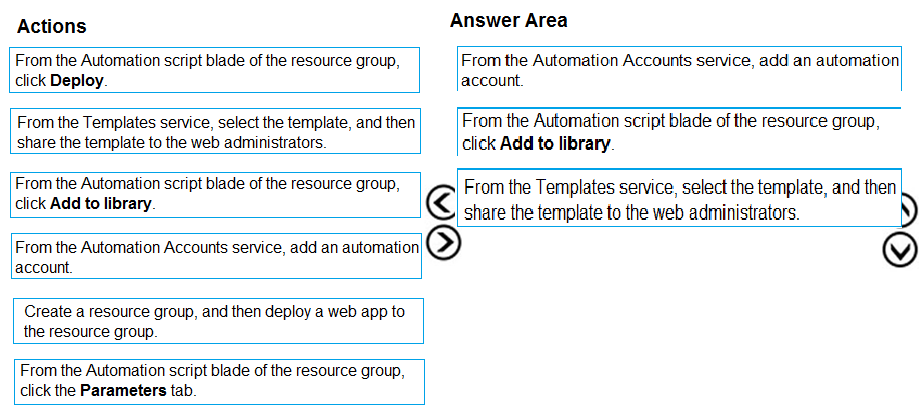

Correct Answer Image

Step 1:
First you create a storage account using the Azure portal.
Step 2:
Select Automation options at the bottom of the screen. The portal shows the template on the Template tab.
Add the storage account to the library.
Step 3:
Share the template.
Scenario: Web administrators will deploy Azure web apps for the marketing department. Each web app will be added to a separate resource group. The initial configuration of the web apps will be identical. The web administrators have permission to deploy web apps to resource groups.
References:
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-quickstart-create-templates-use-the-portal

Deploy and manage virtual machines (VMs)

Question 27

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
You plan to deploy several Azure virtual machines and to connect them to a virtual network named VNET1007.
You need to ensure that future virtual machines on VNET1007 can register their name in an internal DNS zone named corp9172795.com. The zone must NOT be hosted on a virtual machine.
What should you do from Azure Cloud Shell?
To complete this task, start Azure Cloud Shell and select PowerShell (Linux). Click Show Advanced Settings, and then enter corp9172795n1 in the
Storage account text box and File1 in the File share text box. Click Create storage, and then complete the task.




Suggested Answer: See solution below.

Step 1: New-AzureRMResourceGroup -name MyResourceGroup
Before you create the DNS zone, create a resource group to contain the DNS zone.
Step 2: New-AzureRmDnsZone -Name corp9172795.com -ResourceGroupName MyResourceGroup
A DNS zone is created by using the New-AzureRmDnsZone cmdlet. This creates a DNS zone called corp9172795.com in the resource group called
MyResourceGroup.
References:
https://docs.microsoft.com/en-us/azure/dns/dns-getstarted-powershell

Question 28

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.

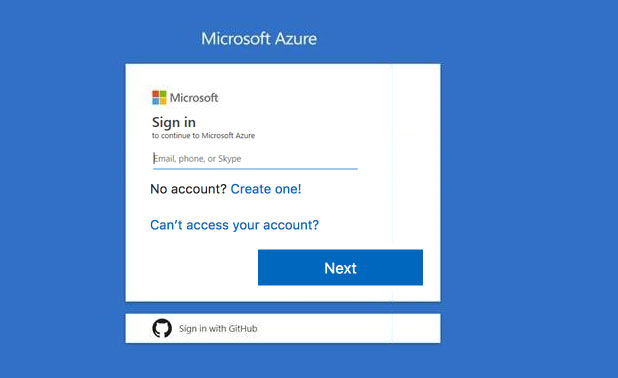

Use the following login credentials as needed:
Azure Username: XXXXXXX -
Azure Password: XXXXXXX -
The following information is for technical support purposes only:
Lab Instance: 9172796 -
You plan to host several secured websites on Web01.
You need to allow HTTPS over TCP port 443 to Web01 and to prevent HTTP over TCP port 80 to Web01.
What should you do from the Azure portal?




Suggested Answer: See solution below.

You can filter network traffic to and from Azure resources in an Azure virtual network with a network security group. A network security group contains security rules that allow or deny inbound network traffic to, or outbound network traffic from, several types of Azure resources.
A network security group contains security rules that allow or deny inbound network traffic to, or outbound network traffic from, several types of Azure resources.
Step A: Create a network security group
A1. Search for and select the resource group for the VM, choose Add, then search for and select Network security group.
A2. Select Create.
Reference Image

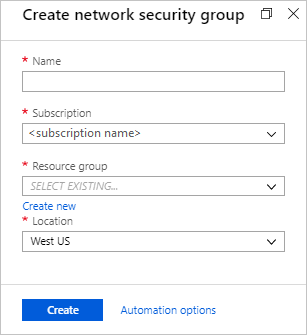

The Create network security group window opens.
A3. Create a network security group
Enter a name for your network security group.
Select or create a resource group, then select a location.
A4. Select Create to create the network security group.
Step B: Create an inbound security rule to allows HTTPS over TCP port 443
B1. Select your new network security group.
B2. Select Inbound security rules, then select Add.
B3. Add inbound rule –
B4. Select Advanced.
From the drop-down menu, select HTTPS.
You can also verify by clicking Custom and selecting TCP port, and 443.
B5. Select Add to create the rule.
Repeat step B2-B5 to deny TCP port 80
B6. Select Inbound security rules, then select Add.
B7. Add inbound rule –
B8. Select Advanced.
Clicking Custom and selecting TCP port, and 80.
B9. Select Deny.
Step C: Associate your network security group with a subnet
Your final step is to associate your network security group with a subnet or a specific network interface.
C1. In the Search resources, services, and docs box at the top of the portal, begin typing Web01. When the Web01 VM appears in the search results, select it.

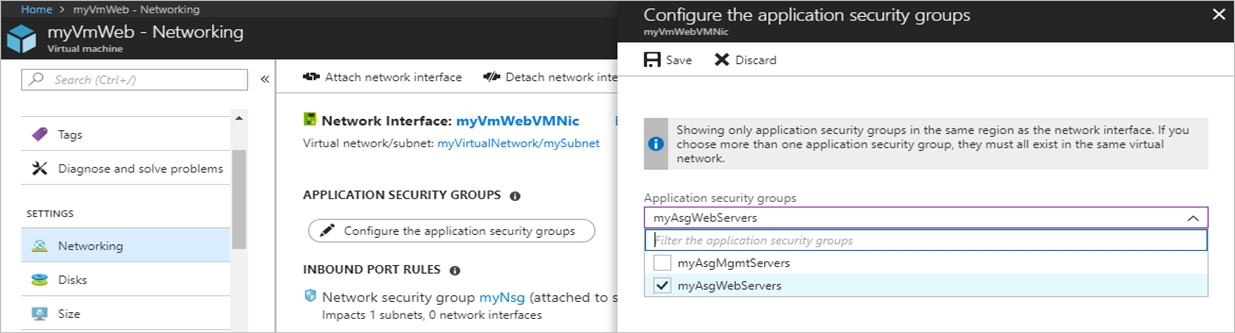

C2. Under SETTINGS, select Networking. Select Configure the application security groups, select the Security Group you created in Step A, and then select Save, as shown in the following picture:
Reference Image
References: alt=”Reference Image” />
The Create network security group window opens.
A3. Create a network security group
Enter a name for your network security group.
Select or create a resource group, then select a location.
A4. Select Create to create the network security group.
Step B: Create an inbound security rule to allows HTTPS over TCP port 443
B1. Select your new network security group.
B2. Select Inbound security rules, then select Add.
B3. Add inbound rule –
B4. Select Advanced.
From the drop-down menu, select HTTPS.
You can also verify by clicking Custom and selecting TCP port, and 443.
B5. Select Add to create the rule.
Repeat step B2-B5 to deny TCP port 80
B6. Select Inbound security rules, then select Add.
B7. Add inbound rule –
B8. Select Advanced.
Clicking Custom and selecting TCP port, and 80.
B9. Select Deny.
Step C: Associate your network security group with a subnet
Your final step is to associate your network security group with a subnet or a specific network interface.
C1. In the Search resources, services, and docs box at the top of the portal, begin typing Web01. When the Web01 VM appears in the search results, select it.
C2. Under SETTINGS, select Networking. Select Configure the application security groups, select the Security Group you created in Step A, and then select Save, as shown in the following picture:
<img src=”https://www.examtopics.com/assets/media/exam-media/03048/0019700001.png” alt=”Reference Image” />
References:
https://docs.microsoft.com/en-us/azure/virtual-network/tutorial-filter-network-traffic

Question 29

Which blade should you instruct the finance department auditors to use?

A. Cost analysis

B. Resource providers

C. Payment methods

D. Invoices




Suggested Answer: D

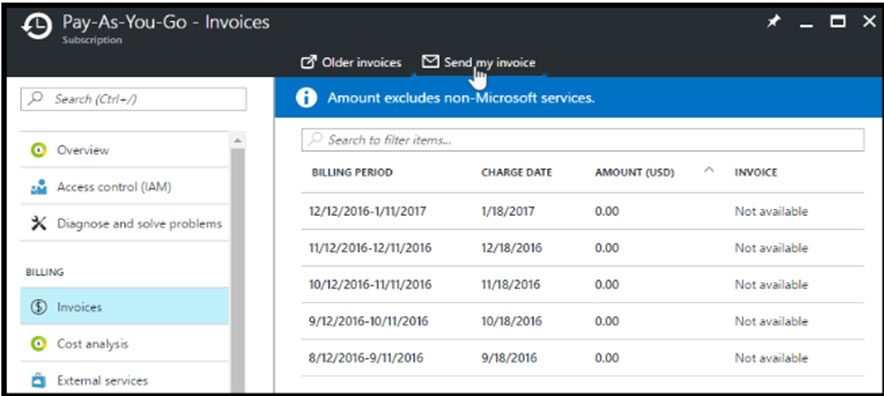

You can opt in and configure additional recipients to receive your Azure invoice in an email. This feature may not be available for certain subscriptions such as support offers, Enterprise Agreements, or Azure in Open.
1. Select your subscription from the Subscriptions page. Opt-in for each subscription you own. Click Invoices then Email my invoice.
Reference Image
2. Click Opt in and accept the terms.
Scenario: During the testing phase, auditors in the finance department must be able to review all Azure costs from the past week.
Reference: alt=”Reference Image” />
2. Click Opt in and accept the terms.
Scenario: During the testing phase, auditors in the finance department must be able to review all Azure costs from the past week.
Reference:
https://docs.microsoft.com/en-us/azure/billing/billing-download-azure-invoice-daily-usage-date

Implement and manage storage

Question 30

HOTSPOT -
You are evaluating the name resolution for the virtual machines after the planned implementation of the Azure networking infrastructure.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Hot Area:




Suggested Answer: Explanation

Box 1: Yes –
All client computers in the Paris office will be joined to an Azure AD domain.
A virtual network named Paris-VNet that will contain two subnets named Subnet1 and Subnet2
Box 2: Yes –
A virtual network named ClientResources-VNet that will contain one subnet named ClientSubnet
You plan to create a private DNS zone named humongousinsurance.local and set the registration network to the ClientResources-VNet virtual network.
Box 3: No –
Only VMs in the registration network, here the ClientResources-VNet, will be able to register hostname records.
Reference:
https://docs.microsoft.com/en-us/azure/dns/private-dns-overview

Question 31

HOTSPOT -
You plan to use Azure Network Watcher to perform the following tasks:
✑ Task1: Identify a security rule that prevents a network packet from reaching an Azure virtual machine.
✑ Task2: Validate outbound connectivity from an Azure virtual machine to an external host.
Which feature should you use for each task? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:

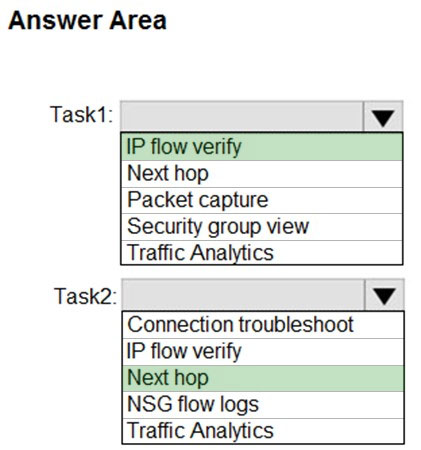

Correct Answer Image

Reference:
https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-monitoring-overview

Question 32

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
Use the following login credentials as needed:
Azure Username: XXXXXXX -
Azure Password: XXXXXXX -
The following information is for technical support purposes only:
Lab Instance: 9172796 -
You plan to configure VM1 to be accessible from the Internet.
You need to add a public IP address to the network interface used by VM1.
What should you do from the Azure portal?




Suggested Answer: See solution below.

You can add private and public IP addresses to an Azure network interface by completing the steps that follow.
Step 1: In Azure portal, click More services > type virtual machines in the filter box, and then click Virtual machines.
Step 2: In the Virtual machines pane, click the VM you want to add IP addresses to. Click Network interfaces in the virtual machine pane that appears, and then select the network interface you want to add the IP addresses to. In the example shown in the following picture, the NIC named myNIC from the VM named myVM is selected:
Reference Image
Step 3: In the pane that appears for the NIC you selected, click IP configurations.
Step 4: Click Create public IP address.
Reference Image
Step 5: In the Create public IP address pane that appears, enter a Name, select an IP address assignment type, a Subscription, a Resource group, and a
Location, then click Create, as shown in the following picture:
References: alt=”Reference Image” />
Step 3: In the pane that appears for the NIC you selected, click IP configurations.
Step 4: Click Create public IP address.
<img src=”https://www.examtopics.com/assets/media/exam-media/03048/0024500001.jpg” alt=”Reference Image” />
Step 5: In the Create public IP address pane that appears, enter a Name, select an IP address assignment type, a Subscription, a Resource group, and a
Location, then click Create, as shown in the following picture:
References:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-multiple-ip-addresses-portal

Question 33

You have an Azure virtual machine named VM1.
The network interface for VM1 is configured as shown in the exhibit. (Click the Exhibit tab.)
You deploy a web server on VM1, and then create a secure website that is accessible by using the HTTPS protocol. VM1 is used as a web server only.
You need to ensure that users can connect to the website from the internet.
What should you do?

A. Create a new inbound rule that allows TCP protocol 443 and configure the protocol to have a priority of 501.

B. For Rule5, change the Action to Allow and change the priority to 401.

C. Delete Rule1.

D. Modify the protocol of Rule4.




Suggested Answer: B

Rule 2 is blocking HTTPS access (port 443) and has a priority of 500.
Changing Rule 5 (ports 50-5000) and giving it a lower priority number will allow access on port 443.
Note: Rules are processed in priority order, with lower numbers processed before higher numbers, because lower numbers have higher priority. Once traffic matches a rule, processing stops.
Incorrect Answers:
A: Rule 2 is blocking HTTPS access (port 443) and has a priority of 500. Creating a rule for the same protocol (443) with a higher priority number will not help.
C: Rule 1 blocks access to port 80, which is used for HTTP, not HTTPS.
D: Rule 2 is blocking HTTPS access (port 443). Changing Rule 4 allows access on UDP but is a higher priority number than Rule. Changing the protocol on Rule
4 to TCP will not help if we don’t also change the priority to a lower number.
References:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview

Question 34

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your company registers a domain name of contoso.com.
You create an Azure DNS zone named contoso.com, and then you add an A record to the zone for a host named www that has an IP address of 131.107.1.10.
You discover that Internet hosts are unable to resolve www.contoso.com to the 131.107.1.10 IP address.
You need to resolve the name resolution issue.
Solution: You add an NS record to the contoso.com Azure DNS zone.
Does this meet the goal?

A. Yes

B. No




Suggested Answer: A

Before you can delegate your DNS zone to Azure DNS, you need to know the name servers for your zone. The NS record set contains the names of the Azure
DNS name servers assigned to the zone.
References:
https://docs.microsoft.com/en-us/azure/dns/dns-delegate-domain-azure-dns

Question 35

You discover that VM3 does NOT meet the technical requirements.
You need to verify whether the issue relates to the NSGs.
What should you use?

A. Diagram in VNet1

B. the security recommendations in Azure Advisor

C. Diagnostic settings in Azure Monitor

D. Diagnose and solve problems in Traffic Manager profiles

E. IP flow verify in Azure Network Watcher




Suggested Answer: E

Scenario: Contoso must meet technical requirements including:
Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.
IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen,
IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.
References:
https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-ip-flow-verify-overview

Configure and manage virtual networks

Question 36

HOTSPOT -
You have an Azure subscription.
You need to implement a custom policy that meets the following requirements:
✑ Ensures that each new resource group in the subscription has a tag named organization set to a value of Contoso
✑ Ensures that resource groups can be created from the Azure portal
✑ Ensures that compliance reports in the Azure portal are accruable
How should you complete the policy? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image

Box 1: “Microsoft.Resources/subscriptions/resourceGroups”
Box 2: DeployifNotExists –
DeployIfNotExists: deploys a resource if it does not already exist.
Reference:
https://docs.microsoft.com/en-us/azure/governance/policy/concepts/definition-structure

Question 37

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
Use the following login credentials as needed:
Azure Username: XXXXXXX -
Azure Password: XXXXXXX -
The following information is for technical support purposes only:
Lab Instance: 9172796 -
You recently created a virtual machine named Web01.
You need to attach a new 80-GB standard SSD data disk named Web01-Disk1 to Web01.
What should you do from the Azure portal?




Suggested Answer: See solution below.

Add a data disk –
Step 1: In the Azure portal, from the menu on the left, select Virtual machines.
Step 2: Select the Web01 virtual machine from the list.
Step 3: On the Virtual machine page, , in Essentials, select Disks.
Reference Image
Step 4: On the Disks page, select the Web01-Disk1 from the list of existing disks.
Step 5: In the Disks pane, click + Add data disk.
Step 6: Click the drop-down menu for Name to view a list of existing managed disks accessible to your Azure subscription. Select the managed disk Web01-Disk1 to attach:
Reference Image
References: alt=”Reference Image” />
Step 4: On the Disks page, select the Web01-Disk1 from the list of existing disks.
Step 5: In the Disks pane, click + Add data disk.
Step 6: Click the drop-down menu for Name to view a list of existing managed disks accessible to your Azure subscription. Select the managed disk Web01-Disk1 to attach:
<img src=”https://www.examtopics.com/assets/media/exam-media/03048/0007700001.png” alt=”Reference Image” />
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/linux/attach-disk-portal

Question 38

You download an Azure Resource Manager template based on an existing virtual machine. The template will be used to deploy 100 virtual machines.
You need to modify the template to reference an administrative password. You must prevent the password from being stored in plain text.
What should you create to store the password?

A. an Azure Key Vault and an access policy

B. a Recovery Services vault and a backup policy

C. Azure Active Directory (AD) Identity Protection and an Azure policy

D. an Azure Storage account and an access policy




Suggested Answer: A

You can use a template that allows you to deploy a simple Windows VM by retrieving the password that is stored in a Key Vault. Therefore, the password is never put in plain text in the template parameter file.
References:
https://azure.microsoft.com/en-us/resources/templates/101-vm-secure-password/

Question 39

You need to recommend a solution to automate the configuration for the finance department users. The solution must meet the technical requirements.
What should you include in the recommendation?

A. Azure AD B2C

B. Azure AD Identity Protection

C. an Azure logic app and the Microsoft Identity Management (MIM) client

D. dynamic groups and conditional access policies




Suggested Answer: D

Scenario: Ensure Azure Multi-Factor Authentication (MFA) for the users in the finance department only.
The recommendation is to use conditional access policies that can then be targeted to groups of users, specific applications, or other conditions.
References:
https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-userstates

Question 40

DRAG DROP -
You have an on-premises file server named Server1 that runs Windows Server 2016.
You have an Azure subscription that contains an Azure file share.
You deploy an Azure File Sync Storage Sync Service, and you create a sync group.
You need to synchronize files from Server1 to Azure.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Suggested Answer: Explanation

Step 1: Install the Azure File Sync agent on Server1
The Azure File Sync agent is a downloadable package that enables Windows Server to be synced with an Azure file share
Step 2: Register Server1.
Register Windows Server with Storage Sync Service
Registering your Windows Server with a Storage Sync Service establishes a trust relationship between your server (or cluster) and the Storage Sync Service.
Step 3: Add a server endpoint –
Create a sync group and a cloud endpoint.
A sync group defines the sync topology for a set of files. Endpoints within a sync group are kept in sync with each other. A sync group must contain one cloud endpoint, which represents an Azure file share and one or more server endpoints. A server endpoint represents a path on registered server.
References:
https://docs.microsoft.com/en-us/azure/storage/files/storage-sync-files-deployment-guide

Question 41

You set the multi-factor authentication status for a user named
admin1@contoso.com
to Enabled.
Admin1 accesses the Azure portal by using a web browser.
Which additional security verifications can Admin1 use when accessing the Azure portal?

A. a phone call, a text message that contains a verification code, and a notification or a verification code sent from the Microsoft Authenticator app

B. an app password, a text message that contains a verification code, and a notification sent from the Microsoft Authenticator app

C. an app password, a text message that contains a verification code, and a verification code sent from the Microsoft Authenticator app

D. a phone call, an email message that contains a verification code, and a text message that contains an app password




Suggested Answer: A



Question 42

You have five Azure virtual machines that run Windows Server 2016. The virtual machines are configured as web servers.
You have an Azure load balancer named LB1 that provides load balancing services for the virtual machines.
You need to ensure that visitors are serviced by the same web server for each request.
What should you configure?

A. Idle Time-out (minutes) to 20

B. Floating IP (direct server return) to Disabled

C. Floating IP (direct server return) to Enabled

D. Session persistence to Client IP and protocol

E. a health probe




Suggested Answer: D

With Sticky Sessions when a client starts a session on one of your web servers, session stays on that specific server. To configure An Azure Load-Balancer For
Sticky Sessions set Session persistence to Client IP.
On the following image you can see sticky session configuration:
Reference Image
Reference: alt=”Reference Image” />
Reference:
https://cloudopszone.com/configure-azure-load-balancer-for-sticky-sessions/

Question 43

HOTSPOT -
You have an Azure subscription named Subscription1 that has a subscription ID of c276fc76-9cd4-44c9-99a7-4fd71546436e.
You need to create a custom RBAC role named CR1 that meets the following requirements:
✑ Can be assigned only to the resource groups in Subscription1
✑ Prevents the management of the access permissions for the resource groups
✑ Allows the viewing, creating, modifying, and deleting of resource within the resource groups
What should you specify in the assignable scopes and the permission elements of the definition of CR1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer: Explanation

References:
https://docs.microsoft.com/en-us/azure/role-based-access-control/custom-roles
https://docs.microsoft.com/en-us/azure/role-based-access-control/resource-provider-operations#microsoftresources

Question 44

You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains four subnets named Gateway, Perimeter, NVA, and Production.
The NVA subnet contains two network virtual appliances (NVAs) that will perform network traffic inspection between the Perimeter subnet and the Production subnet.
You need to implement an Azure load balancer for the NVAs. The solution must meet the following requirements:
✑ The NVAs must run in an active-active configuration that uses automatic failover.
✑ The NVAs must load balance traffic to two services on the Production subnet. The services have different IP addresses.
Which three actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

A. Add two load balancing rules that have HA Ports enabled and Floating IP disabled.

B. Add a frontend IP configuration, two backend pools, and a health probe.

C. Add two load balancing rules that have HA Ports and Floating IP enabled.

D. Deploy a standard load balancer.

E. Deploy a basic load balancer.

F. Add a frontend IP configuration a backend pool, and a health probe.




Suggested Answer: BCD

A standard load balancer is required for the HA ports.
Two backend pools are needed as there are two services with different IP addresses.
Floating IP rule is used where backend ports are reused.
Incorrect Answers:
F: HA Ports are not available for the basic load balancer.
References:
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-overview
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-multivip-overview

Question 45

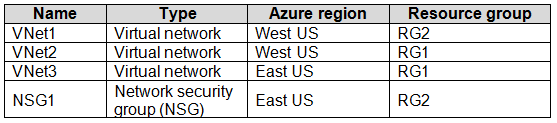

You have an Azure subscription that contains the resources in the following table.
To which subnets can you apply NSG1?

A. the subnets on VNet2 only

B. the subnets on VNet2 and VNet3 only

C. the subnets on VNet1, VNet2, and VNet3

D. the subnets on VNet1 only

E. the subnets on VNet3 only




Suggested Answer: E

All Azure resources are created in an Azure region and subscription. A resource can only be created in a virtual network that exists in the same region and subscription as the resource.
References:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-vnet-plan-design-arm

Question 46

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your company registers a domain name of contoso.com.
You create an Azure DNS zone named contoso.com, and then you add an A record to the zone for a host named www that has an IP address of 131.107.1.10.
You discover that Internet hosts are unable to resolve www.contoso.com to the 131.107.1.10 IP address.
You need to resolve the name resolution issue.
Solution: You modify the name servers at the domain registrar.
Does this meet the goal?

A. Yes

B. No




Suggested Answer: B

Modify the Name Server (NS) record.
References:
https://docs.microsoft.com/en-us/azure/dns/dns-delegate-domain-azure-dns

Question 47

You have an Azure subscription that contains an Azure Active Directory (Azure AD) tenant named adatum.com. The tenant contains 500 user accounts.
You deploy Microsoft Office 365. You configure Office 365 to use the user accounts in adatum.com.
You configure 60 users to connect to mailboxes in Microsoft Exchange Online.
You need to ensure that the 60 users use Azure Multi-Factor Authentication (MFA) to connect to the Exchange Online mailboxes. The solution must only affect connections to the Exchange Online mailboxes.
What should you do?

A. From the multi-factor authentication page, configure the Multi-Factor Auth status for each user

B. From Azure Active Directory admin center, create a conditional access policy

C. From the multi-factor authentication page, modify the verification options

D. From the Azure Active Directory admin center, configure an authentication method




Suggested Answer: A

Reference:
https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-userstates

Question 48

You have an Azure Active Directory (Azure AD) tenant named contoso.com. Multi-factor authentication (MFA) is enabled for all users.
You need to provide users with the ability to bypass MFA for 10 days on devices to which they have successfully signed in by using MFA.
What should you do?

A. From the multi-factor authentication page, configure the users’ settings.

B. From Azure AD, create a conditional access policy.

C. From the multi-factor authentication page, configure the service settings.

D. From the MFA blade in Azure AD, configure the MFA Server settings.




Suggested Answer: C

Enable remember Multi-Factor Authentication
1. Sign in to the Azure portal.
2. On the left, select Azure Active Directory > Users.
3. Select Multi-Factor Authentication.
4. Under Multi-Factor Authentication, select service settings.
5. On the Service Settings page, manage remember multi-factor authentication, select the Allow users to remember multi-factor authentication on devices they trust option.
6. Set the number of days to allow trusted devices to bypass two-step verification. The default is 14 days.
7. Select Save.
References:
https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-mfasettings

Question 49

HOTSPOT -
You have an Azure Active Directory (Azure AD) tenant named adatum.com. Adatum.com contains the groups in the following table:
You create two user accounts that are configured as shown in the following table.
To which groups do User1 and User2 belong? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:




Suggested Answer:
Correct Answer Image

Box 1: Group 1 only –
First rule applies –
Box 2: Group1 and Group2 only –
Both membership rules apply.
References:
https://docs.microsoft.com/en-us/sccm/core/clients/manage/collections/create-collections

Question 50

You have an Azure virtual machine named VM1 that runs Windows Server 2019.
You save VM1 as a template named Template1 to the Azure Resource Manager library.
You plan to deploy a virtual machine named VM2 from Template1.
What can you configure during the deployment of VM2?

A. virtual machine size

B. operating system

C. administrator username

D. resource group




Suggested Answer: C

When deploying a virtual machine from a template, you must specify:
✑ the Resource Group name and location for the VM
✑ the administrator username and password
✑ an unique DNS name for the public IP
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/ps-template

Free Access Full AZ-103 Practice Exam Free

Looking for additional practice? Click here to access a full set of AZ-103 practice exam free questions and continue building your skills across all exam domains.

Our question sets are updated regularly to ensure they stay aligned with the latest exam objectives—so be sure to visit often!

Good luck with your AZ-103 certification journey!

Share18Tweet11
Previous Post

AXS-C01 Practice Exam Free

Next Post

AZ-104 Practice Exam Free

Next Post

AZ-104 Practice Exam Free

AZ-120 Practice Exam Free

AZ-140 Practice Exam Free

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Recommended

Network+ Practice Test

Comptia Security+ Practice Test

A+ Certification Practice Test

Aws Cloud Practitioner Exam Questions

Aws Cloud Practitioner Practice Exam

Comptia A+ Practice Test

  • About
  • DMCA
  • Privacy & Policy
  • Contact

PracticeTestFree.com materials do not contain actual questions and answers from Cisco's Certification Exams. PracticeTestFree.com doesn't offer Real Microsoft Exam Questions. PracticeTestFree.com doesn't offer Real Amazon Exam Questions.

  • Login
  • Sign Up
No Result
View All Result
  • Quesions
    • Cisco
    • AWS
    • Microsoft
    • CompTIA
    • Google
    • ISACA
    • ECCouncil
    • F5
    • GIAC
    • ISC
    • Juniper
    • LPI
    • Oracle
    • Palo Alto Networks
    • PMI
    • RedHat
    • Salesforce
    • VMware
  • Courses
    • CCNA
    • ENCOR
    • VMware vSphere
  • Certificates

Welcome Back!

Login to your account below

Forgotten Password? Sign Up

Create New Account!

Fill the forms below to register

All fields are required. Log In

Retrieve your password

Please enter your username or email address to reset your password.

Log In

Insert/edit link

Enter the destination URL

Or link to existing content

    No search term specified. Showing recent items. Search or use up and down arrow keys to select an item.
