Which protocol does Cisco HyperFlex use to share data among nodes in a VMware vSphere environment?

A. FCoE

B. NFS

C. CIFS

D. SMB

An engineer is implementing the Cisco ACI fabric and must create two different vPCs from leaf switches A and B. The vPCs are deployed as follows:
• vPC 1 encompasses ports Eth1/1 on leaf A and B and connects to server 1.
• vPC 2 encompasses port Eth1/2 on leaf A and B and connects to server 2.
A leaf switch profile listing leaves A and B is already configured. Which ACI object must be created to meet these requirements?

A. one access port interface policy group

B. two PortChannel interface policy groups

C. one vPC interface policy group

D. two vPC interface policy groups

What is the benefit of using the Cisco Nexus Dashboard single sign-on feature?

A. It provides notifications about end of sale for the deployed switches.

B. It adds a security layer based on multifactor authentication.

C. It manages operations of the infrastructure using a single pane of glass.

D. It allows the user to switch seamlessly between the hosted services.

An engineer must implement a VXLAN-based data center interconnect. The long-distance transport provided by a service provider is IP-based, supports a maximum MTU of 1554 bytes, and does not support outbound traffic replication. Which action must be taken to build the data center interconnect?

A. Announce host reachability over BGP.

B. Create an IP access list and associate it with VNI to replicate traffic to remote VTEPs.

C. Configure a route map to associate the IPs of the remote VTEPs.

D. Implement BGP EVPN ingress replication.

A customer undergoes an IT security review assessment. The auditor must have read-only access to the Cisco Nexus 9000 Series Switch to perform the configuration review. The customer implements this security role for the auditor: role name audit rule 1 permit command * rule 2 - Output omitted -- username auditor password C4SAFF1B05EB1968$c0 role audit
Which configuration snippet must complete the configuration?

A. deny command configure terminal

B. deny command write *

C. permit command show *

D. permit command enable

An engineer must configure Cisco IMC server management NIC for autonegotiation.
Which setting should be selected?

A. shared LOM

B. Cisco card

C. dedicated

D. shared LOM EXT

An engineer must perform a POAP deployment of a Cisco Nexus 9000 Series Switch. The switch must automatically receive its software image and configuration file upon power-on. Also, only UDP is permitted between the Nexus 9000 switch and the server that hosts the Cisco NX-OS system images.
Which set of actions completes the configuration?

A. Enable option 35.Define HTTP transfer protocol.

B. Enable option 67.Define TFTP transfer protocol.

C. Enable option 43.Define HTTP transfer protocol.

D. Enable option 46.Define TFTP transfer protocol.

A network automation engineer must configure a Cisco NX-OS REST API on a Cisco 9000 Series Switch with these requirements:
• NX-API REST and the DME database must be enabled.
• The NX-API REST must listen for HTTP traffic on port 83.
• The HTTPS certificate must be uploaded.
Which configuration set must be used to accomplish these goals?

A. feature nxapinxapi (tcp) port 83nxapi certificate {httpscrt}

B. feature nxapinxapi (tcp) port 83nxapi certificate {httpscrt}nxapi certificate enable

C. feature nxapinxapi (http) port 83nxapi certificate {httpscrt}

D. feature nxapinxapi {http} port 83nxapi certificate {httpscrt | httpskey}nxapi certificate enable

Refer to the exhibit. A network engineer is using tcpdump to capture a snapshot of OSPF-retated traffic on a specific Cisco NX-OS switch port. For security reasons, the capture must be taken using an embedded container that is already deployed on the Cisco Nexus device. Which command completes the script?

A. guestshell-bash

B. run guestshell

C. run bash

D. guestshell

A network engineer is deploying a Cisco All-Flash HyperFlex solution. Which local storage configuration is required for the operating system and persistent logging?

A. one solid state drive

B. two SATA drives

C. one SATA drive

D. two solid state drives

Refer to the exhibit. A network engineer must configure port E1/31-32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B.
Port E1/31-32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?

A. FCoE storage

B. uplink

C. unified uplink

D. FCoE uplink

What are two types of FC/FCoE oversubscription ratios? (Choose two.)

A. switch processing power to end-node processing power

B. port bandwidth to uplink bandwidth

C. server storage to end-node count

D. edge ISL bandwidth to core ISL bandwidth

E. host bandwidth to storage bandwidth

Refer to the exhibit. An engineer must configure FCoE with these requirements:
• VLAN 100 must be used to carry the Ethernet traffic.
• Fabric A must use FCoE on VLAN 11 and VSAN 11.
• Fabric B must use FCoE on VLAN 12 and VSAN 12.
• vfc 10 on Fabric A must be bound to Ethernet 1/1 on N5K_1.
• vfc 11 on Fabric B must be bound to Ethernet 1/1 on N5K_2.
Which interface vfc 10 configuration accomplishes these requirements?

A.

B.

C.

D.

A company must security harden its Cisco UCS C-Series servers. The security policy requires all out-of-band management to meet these requirements:
• It must encrypt all traffic
• It must use nondefault ports
• It must provide private administrative sessions.
Which Cisco IMC configuration meets the requirements?

A. data1# scope soldata1 /sol # set enabled yesdata1 /sol *# set encrypted tls1.2data1 /sol *# set port 3389data1 /sol *# set session max 2data1 /sol *# set deny-local yes

B. data1# scope cimcdata1 /cimc # set enabled yesdata1 /cimc *# set encrypted tlsdata1 /cimc *# set kvm-port 1972data1 /cimc *# set max-sessions 1data1 /cimc *# set local-session deny

C. data1# scope oobdata1 /oob # set enabled nodata1 /oob *# set encrypted yesdata1 /oob *# set kvm-port 2068data1 /oob *# set max-sessions 1data1 /oob *# set local-access no

D. data1# scope kvmdata1 /kvm # set enabled yesdata1 /kvm *# set encrypted yesdata1 /kvm *# set kvm-port 3168data1 /kvm *# set max-sessions 1data1 /kvm *# set local-video no

DRAG DROP -

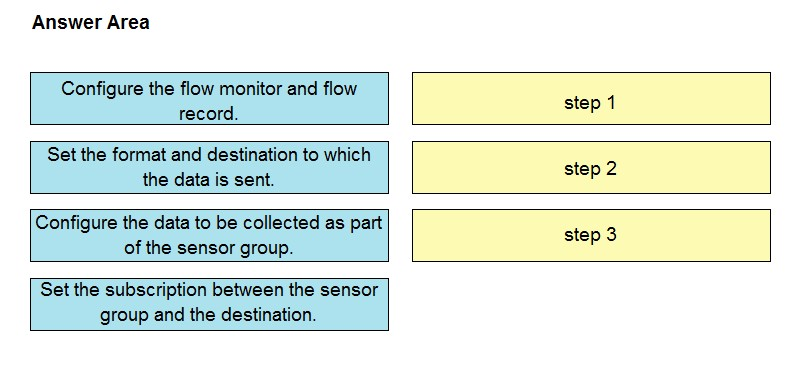

A network engineer must implement a telemetry solution to collect real-time structured data in a large-scale network. Drag and drop the actions from the left into the order on the right to implement the solution. Not all actions are used.
Select and Place:


A bridge domain is being extended out of a Cisco ACI fabric. Between which of these components are policies used to identify the connectivity between Endpoint Groups and the external connection?

A. internal contracts and external contracts

B. an external bridge domain and an external routed domain

C. internal EPGs and external EPGs

D. L2Out and L3Out

An engineer implements an environment with multiple traffic types on a consolidated I/O link between Cisco Nexus 9000 Series Switch and MDS 9000 Series Switch. The configuration must meet these requirements:
• The unified I/O link must support LAN and SAN traffic.
• A single, multipurpose Ethernet transport must be used.
• The configuration must discard MAC addresses that are not part of the current fabric.
• The QoS markings must be preserved.
Which configuration set meets the requirements?

A. MDS-A(config)# interface fcip4 -MDS-A(config-if)# use-profile 8 -MDS-A(config-if)# peer-info ipaddr 200.200.100.7

B. N9K-2(config)# interface Eth2 -N9K-2(config-if)# switchport mode trunkN9K-2(config-if)# auto qos trust dscp

C. MDS-B(config)# interface fc3 -MDS-B(config-if)# switchport trunk mode onMDS-B(config-if)# switchport trunk allowed vsan 2-5

D. N9K-1(config)# fcoe fcmap 0e.fc.1dN9K-1(config)# int vfc 1 -N9K-1(config-if)# bind interface e1/3

An engineer configures user authentication on Cisco UCS Manager to ensure that the user and roles can be saved on the external server and secured using authentication. Which set of actions meets these requirements?

A. Implement a logical configuration backup and configure the HTTPS protocol.

B. Configure a full state backup and implement an FTP protocol.

C. Perform a system configuration backup and use the SCP protocol.

D. Deploy an all configuration backup and implement a TFTP protocol.

DRAG DROP
-
Refer to the exhibit.

The server is sending traffic to the storage server using Fiber Channel protocol. The requirement is for the N5K-1 to forward traffic to MDS9k-1. Drag and drop the configuration steps from the right to complete the configuration for N5K-1 on the left. Not all configuration steps are used.


A storage array must be connected to port ethernet1/10 on a Cisco MDS 9000 Series Switch. In addition, the array must connect using the FCoE protocol and be single-homed. Which configuration meets these requirements?

A. vsan database vlan 101 vsan 101 fcoe vsan 101 interface vfc 10 interface 1/10 switchport mode e fcoe vfc 10

B. interface vfc 10 switchport mode f bind interface ethernet 1/10 vsan database vsan 101 vlan 101 fcoe vsan 101 vsan 101 interface vfc 10

C. vlan database vlan 101 vsan vsan 101 fcoe vsan 101 interface vfc 10 interface ethernet1/10 switchport mode trunk bind interface vfc 10 fcoe vsan 101

D. vlan database vlan 101 fcoe vsan 101 enable interface vfc 10 vsan 101 interface vfc 10 switchport mode fcoe switchport access vlan 101 bind interface ethernet1/10

A QoS policy on Cisco UCS must meet these requirements:
• No-drop class must be configured.
• Jumbo frames must be enabled without fragmentation.
Which configuration must be implemented to mast these conditions?

A. Configure slow-drain timers and specify an MTU value of 9100 bytes.

B. Create a Flow Control Policy and specify an MTU value of 9000 bytes.

C. Create a QoS system class and specify an MTU value of 9216 bytes.

D. Configure Platinum system class and specify an MTU value of 9100 bytes.

Refer to the exhibit. A network engineer requires remote access via SSH to a Cisco MDS 9000 Series Switch. The solution must support secure access using the local user database when the RADIUS servers are unreachable from the switches. Which command meets these requirements?

A. aaa authentication none

B. aaa authentication login default group radius

C. aaa authentication login default fallback error local

D. aaa authentication login default group local

Which communication method does NFS use for requests between servers and clients?

A. SMB

B. RPC

C. SSC

D. XDR

An engineer configured an environment that contains the vPC and non-vPC switches. However, it was noticed that the downstream non-vPC switches do not receive the same STP bridge ID from the upstream vPC switch peers. Which vPC feature must be implemented to ensure that vPC and non-vPC switches receive the same STP bridge ID from the upstream vPC switch peers?

A. vpc local role-priority 4000

B. peer-switch

C. system-mac 0123.4567.89ab

D. peer-gateway

A Cisco ACI engineer must configure an access port on a Cisco ACI leaf switch. The access policy should be configured so that it supports L3Out connectivity concurrently with several EPGs that are mapped to this interface with the static port method. How should the access policy be configured?

A. by linking the interface policy group to multiple Attachable Access Entity Profiles

B. with two interface policy groups that are linked to the same interface profile port selector

C. by mapping a single physical domain, mapped to the L3out and EPG interfaces

D. with a single Attachable Access Entity Profile that is linked to the corresponding routed domain and physical domain

An engineer creates a service profile in Cisco UCS Manager and must assign a policy that reboots blades when changes are applied. The changes must be applied only after user acknowledgment. Which two policies must be configured to meet these requirements? (Choose two.)

A. Reboot Policy

B. Boot Policy

C. Power Control Policy

D. Global Policy

E. Maintenance Policy

A network engineer must determine the cooling requirements for a Cisco UCS C-Series Rack Server. The server with PCIe cards is configured with a fan configuration policy. Which configuration should be used for the fan policy of the server?

A. server # scope chassis server /chassis # scope fan-policy server /chassis/fan-policy # set fan-policy balanced server /chassis/fan-policy* # commit

B. server # scope chassis server /chassis # scope fan-policy server /chassis/fan-policy # set fan-policy high-power server /chassis/fan-policy* # commit

C. server # scope chassis server /server # scope fan-policy server /server/fan-policy # set fan-policy acoustic server /server/fan-policy* # commit

D. server # scope server server /server # scope fan-policy server /server/fan-policy # set fan-policy low-power server /server/fan-policy* # commit

Cisco Nexus 9000 Series Switches are configured with LACP protocol and default aging timers. What is the impact on the LACP peer during an ISSU upgrade?

A. The LACP peer renegotiates the adjacency.

B. The LACP peer connection terminates.

C. The LACP peer connection resets.

D. The LACP peer session remains up.

DRAG DROP
-
An engineer must authenticate OSPF on interfaces of the Cisco Nexus 9000 Series Switch so that:
• eth1/1 uses clear text password.
• eth1/2 uses encrypted md5 password.
Drag and drop the commands from the bottom onto the boxes in the code to complete the configuration. Not all commands are used.


An engineer must suggest deployment model for a newly developed application. The engineer has a small starting budget and lacks technical knowledge and infrastructure to implement storage, operating system, and database services to support the application deployment. The engineer also needs usage data related to the service and the ability to elastically scale the deployment as customer demands grow. Which two models must be used to meet the requirements? (Choose two.)

A. infrastructure as a service

B. public cloud

C. software as a service

D. private cloud

E. platform as a service

An engineer must configure a Cisco UCS blade system that is managed by Cisco UCS Manager. All four connected interfaces between the blade system and the fabric interconnects must be used. Additionally, the connectivity must tolerate any link failure between the I/O module and the fabric interconnects. Which action accomplishes these requirements?

A. Configure chassis/FEX discovery policy action to four links.

B. Configure port aggregation with LACP policy set to default.

C. Configure Link Group Preference to Port Channel.

D. Configure Firmware Auto Sync Server policy to Auto Acknowledge.

A network engineer must restore the running configuration on a Cisco Nexus 5000 Series Switch to an existing snapshot called `stable1`. The restore procedure should proceed only if no errors occur. Which configuration should be used to accomplish this goal?

A. rollback running-config checkpoint stable1 best-effort

B. rollback running-config checkpoint stable1 atomic

C. rollback checkpoint stable1 best-effort running-config best-effort

D. rollback checkpoint stable1 best-effort running-config atomic

The Cisco Nexus 5600 Series Switch experiences occasional packet drops on interface ethernet 1/16. An engineer wants to implement a SPAN session to investigate the issue further. The network analyzer to which the packets must be directed is located on interface 1/3. The analyzer is limited on disk space available for traffic capture, so the Cisco Nexus Switch should send only the relevant data. Which two command sets configure the SPAN session that meets these requirements? (Choose two.)
A.

B.

C.

D.

E.


An engineer must configure a Cisco MDS 9000 Series Switch for traffic analysis from the storage array. The storage array is connected to the interface fc2/1 in VSAN 10 and the traffic analyzer to fc4/2. The capture file must include ingress and egress traffic between the switch and the storage array. Also, only traffic in VSAN 10 must be captured. Which configuration set meets these requirements?

A. interface fc4/2switchport mode trunkswitchport trunk allow vsan 10no shutdown!span session 1source interface fc2/1 txdestination interface fc4/2 rxno suspend

B. interface fc4/2switchport mode SDno shutdown!span session 1source interface fc2/1destination interface fc4/2source filter vsan 10

C. interface fc4/2switchport mode autono shutdown!span session 1source interface fc2/1 rxdestination interface fc4/2source filter vsan 10no suspend

D. interface fc4/2switchport mode STno shutdown!span session 1source interface fc2/1destination interface fc4/2source filter vsan 10

Which two statements describe the process of upgrading an EPLD on a Cisco MDS 9000 Series Switch? (Choose two.)

A. EPLDs are only capable to be upgraded to the latest EPLD image.

B. EPLD upgrades are capable to be completed without powering down the module during the upgrade.

C. An upgrade verification identifies the impact of each EPLD upgrade.

D. The EPLDs for all the modules on a switch must be upgraded at the same time.

E. EPLDs are capable to be upgraded without replacing the hardware.

An engineer need to implement a solution that prevents loops from occurring accidentally by connecting a switch to interface Ethernet1/1. The port is designated to be used for host connectivity. Which configuration should be implemented?

A. switch# configure terminal switch(config)# interface Ethernet1/1 switch(config-if)# spanning-tree bpduguard enable

B. switch# configure terminal switch(config)# interface Ethernet1/1 switch(config-if)# spanning-tree guard loop

C. switch# configure terminal switch(config)# interface Ethernet1/1 switch(config-if)# spanning-tree loopguard default

D. switch# configure terminal switch(config)# interface Ethernet1/1 switch(config-if)# spanning-tree bpdufilter enable

What is a benefit of Cisco HyperFlex All-Flash Stretched cluster deployment as compared to All-HDD Stretched cluster deployment?

A. lower number of IOPS

B. higher number of IOPS

C. lower cost

D. higher cost

DRAG DROP
-

Refer to the exhibit. An administrator must complete the unified fabric configuration between Server1 and a pair of Cisco Nexus 9000 Series Switches. Drag and drop the code snippets from the right onto the blanks in the code on the left to complete the N9K-1 configuration. Code snippets may be used more than once.


Refer to the exhibit. An engineer configures FCoE in a newly installed data center. Which configuration must be applied to activate VSAN 100 on VFC 100?

A. Map an FCoE VLAN to VSAN 100.

B. Allow VSAN 100 on interface eth1/12.

C. Issue the shutdown lan command on VFC 100.

D. Configure a VLAN on VFC 100.

An engineer is configuring a vHBA template in UCS Manager. The engineer needs to specify the logical addresses used by the vHBA and the path through which the SAN traffic flows. Which two resources must be specified in the vHBA template? (Choose two.)

A. MAC addresses

B. WWPN Pool

C. WWNN

D. Fabric ID

E. VLAN ID

An engineer is using REST API calls to configure the Cisco APIC. Which data structure must be used within a POST message to receive a login token?

A. {“aaaUser”:{“attributes”:{“name”:”apiuser”,”pwd”:”cisco123″}}}

B.

C. {aaaUser:{attributes:{name:apiuser,pwd:cisco123}}}

D. apiusercisco123

An engineer must automate the provisioning of Cisco ACI objects using the Terraform tool. The engineer must ensure that APIC counts the authentication login requests against the threshold to avoid a DOS attack. Which configuration must be used in Terraform to accomplish these goals?

A. resources with user ID and password

B. resources with signature-based authentication

C. provider with user ID and password

D. provider with signature-based authentication

What is a characteristic of EPLD updates on Cisco MDS 9000 Series Switches?

A. EPLD bundles are released separately from a Cisco MDS NX-OS release

B. EPLD packages update hardware functionality on a device

C. EPLD updates are nondisruptive to traffic flow

D. EPLD updates are installed only via the Cisco DCNM GUI

Which mroute state is created when Bidirectional PIM is deployed at a site?

A. *,G

B. MVPN Type-6

C. MVPN Type-7

D. S,G

Which product includes prebuilt templates that are available to be used to customize fabric deployments?

A. Cisco Tetration

B. Cisco Data Center Network Manager

C. Cisco ACI

D. Cisco UCS Manager

Refer to the exhibit. An engineer configures an FCoE connection between a Cisco UCS and a Cisco Nexus 9000 Series Switch. The UCS FI-A connects to the Nexus switch using interface e1/12. All relevant configurations have been completed on the Nexus switch to support FCoE deployment. Which action must be taken on Cisco UCS Manager to complete the configuration?

A. Trunk VLAN 500 on interface e1/12.

B. Create a Virtual Fibre Channel Interface.

C. Change the Transport Type to FCoE.

D. Configure an FCoE uplink interface.

An engineer must configure Cisco Nexus 9000 Series Switches for Cisco UCS Director integration. The configuration must enable automated onboarding of the switches as they come online. For security purposes, the switches must have the bare minimum of connection methods enabled. The connection protocol must allow authentication through credentials. Which protocol must be configured on the switches to allow automated onboarding?

A. SNMP

B. Telnet

C. HTTPS

D. SSH

A network engineer connects the CNA interface of a server to a switch. The switch must bring down all of the VLANs on the interface that are not enabled for FCoE, but the VLANs that are enabled for FCoE should continue to carry SAN traffic without interruption. Which configuration should be applied to the switch to achieve this objective?

A. switch(config)# interface Ethernet 2/1switch(config-if)# shutdown force

B. switch(config)# interface Ethernet 2/1switch(config-if)# shutdown lan

C. switch(config)# interface Ethernet vfc 2switch(config-if)# shutdown force

D. switch(config)# interface vfc 2switch(config-if)# shutdown lan

An engineer must configure a Cisco MDS 9000 Series Switch to store generated log messages to a file. The file must store logs of the severity of "warning" and above, and the file size must not exceed 20,000 bytes. Which command accomplishes this task?

A. logging logfile LogFile 5 size 2000

B. logging logfile messages 2 size 2500

C. logging logfile Local 4 size 20000

D. logging logfile Logs 3 size 160000

An engineer must configure a named VSAN when the fabric interconnect is in Fibre Channel switch mode. The VSAN must meet these requirements:
✑ Named VSAN must be called `VSAN10`.
✑ VSAN ID must be 10.
✑ FCoE ID must be 20.
✑ VSAN 10 must be attached to port 2 in slot 1.
Which command set configures a VSAN when the fabric interconnects is in Fibre Channel switch mode?

A. UCS-A# scope eth-storage UCS-A/fc-storage# create vsan VSAN10 10 20 UCS-A/fc-storage/vsan # create member-port fcoe a 2 1 UCS-A/fc-storage/vsan/member-port* # commit-buffer

B. UCS-A# scope fc-traffic-mon UCS-A/fc-storage# create vsan VSAN10 20 10 UCS-A/fc-storage/vsan # create member-port fcoe a 2 1 UCS-A/fc-storage/vsan/member-port* # commit-buffer

C. UCS-A# scope fc-storage UCS-A/fc-storage# create vsan VSAN10 10 20 UCS-A/fc-storage/vsan # create member-port fcoe a 1 2 UCS-A/fc-storage/vsan/member-port* # commit-buffer

D. UCS-A# scope fc-uplink UCS-A/fc-storage# create vsan VSAN10 20 10 UCS-A/fc-storage/vsan # create member-port fcoe a 1 2 UCS-A/fc-storage/vsan/member-port* # commit-buffer
