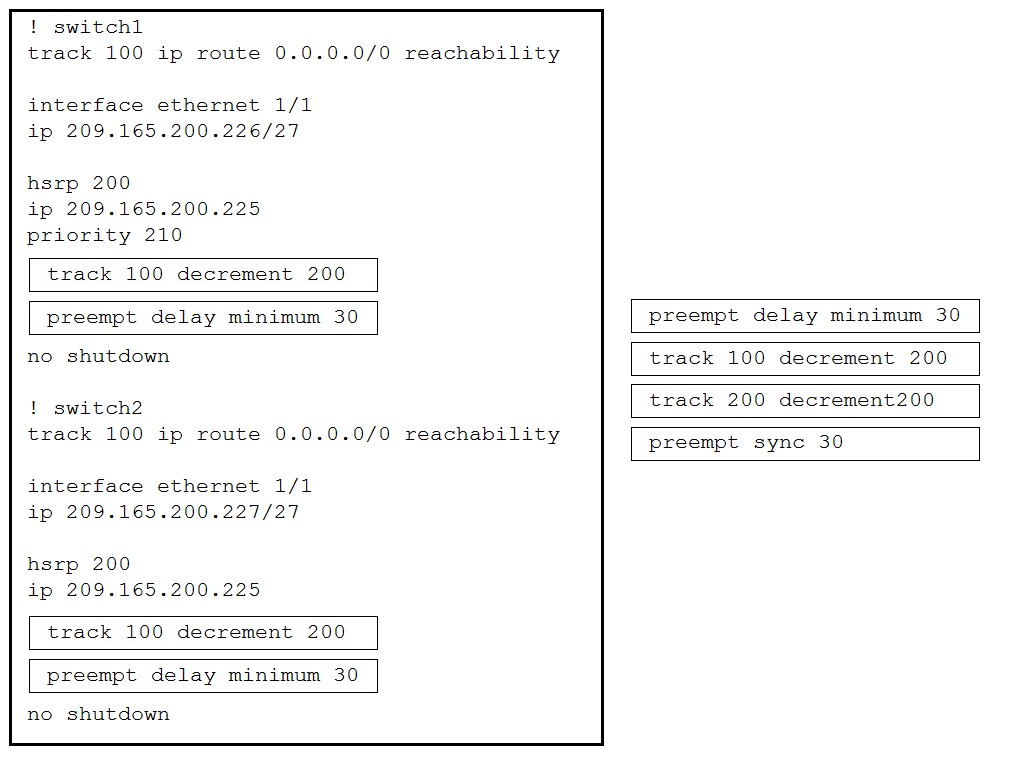

DRAG DROP -
An engineer must configure the HSRP protocol to implement redundancy using two Cisco Nexus Series Switches, in addition, me HSRP must meet these requirements:
* switch1 must retain the primary role if switch2 goes offline.
* switch1 must retain the primary role until normal conditions are restored.
* switch1 and switch2 must ensure that the routing tables are converged before taking the active role.
* switch2 must retain the primary role if the default gateway is not reachable.
Drag and drop the configuration commands from the right to the left to meet the requirements. The commands are used more than once. Not all commands are used.
Select and Place:


An engineer must perform a backup operation of the Cisco UCS system. The backup must be transferred to a secure location using UDP and must contain information about VLANs, VSANs, and other policies. Also, the operations team requires the backup file to be in a human-readable format. Which configuration set meets these requirements?

A. Type: All configuration Protocol: FTP

B. Type: Full state Protocol: SFTP

C. Type: Logical configuration Protocol: TFTP

D. Type: System configuration Protocol: SCP

DRAG DROP -
A network administrator must automate the process of pinging all the IP addresses from the 10.0.0.0/8 subnet. The subnet is already present on the ARP table of the Cisco Nexus switch. Drag and drop the bash commands to generate the desired output. Not all commands are used.
Select and Place:


Refer to the exhibit. A network engineer is implementing a configuration checkpoint on a Cisco Nexus 9000 Series Switch. The configuration must skip any existing vPC configuration errors and must complete if there are any configuration errors. The engineer finished the vPC domain configuration part. Which command completes the checkpoint implementation?

A. best-effort

B. stop-at-first-failure

C. atomic

D. verbose

Which two statements describe modifying Cisco UCS user accounts? (Choose two.)

A. Disabling a user account maintains all of the data in the Cisco UCS Fabric Interconnect.

B. The admin account is used only to log on by using SSH.

C. The password of the user account must contain a minimum of 10 characters.

D. Local user accounts override the same account on a remote authentication server, such as TACACS, RADIUS, or LDAP.

E. The password of the user account expires in 30 days.

When deploying a Cisco HyperFlex edge with a pair of switches, what is the minimum number of interfaces in trunk mode required on each HX node?

A. 1

B. 2

C. 4

D. 6

Several production and development database servers exist in the same EPG and IP subnet. The IT security policy is to prevent connections between production and development. Which attribute must be used to assign the servers to different microsegments?

A. data center

B. VM name

C. IP address

D. VMM domain

Cisco Nexus 9000 Series Switches are configured with LACP protocol and default aging timers. What is the impact on the LACP peer during an ISSU upgrade?

A. The LACP peer renegotiates the adjacency.

B. The LACP peer connection terminates.

C. The LACP peer connection resets.

D. The LACP peer session remains up.

An engineer is implementing an import operation in Cisco UCS Manager.
What is the impact of performing this operation?

A. Information is modified on the management plane only.

B. A configuration is imported from a higher release to a lower release.

C. It is possible to schedule an import operation.

D. Only a configuration file that was exported from the same Cisco UCS Manager is allowed to be imported.

An engineer must implement the FCoE on the Cisco Nexus 9000 Series Switch-based infrastructure. The deployment will contain dual-homed fabric extenders and must support jumbo frames with port channels. Which two sets of actions complete the configuration? (Choose two.)

A. Create a virtual Fibre Channel Interface. Bind vFC to physical interface.

B. Configure the interface with mtu 9516. Disable the feature NPIV.

C. Create a dedicated VSAN for FEX. Bind VSAN to FEX uplinks.

D. Execute fcoe enable-fex. Configure FEX uplinks with mtu 9216.

E. Create a FCoE switch profile. Enable config sync.

A small remote office is set to connect to the regional hub site via NSSA ASBR.
Which type of LSA is sent to the remote office OSPF area?

A. type 7 LSA

B. type 1 LSA

C. type 5 LSA

D. type 3 LSA

DRAG DROP
-

Refer to the exhibit. An engineer must provision a VXLAN deployment. The OSPF has already been configured as the underlay protocol. All BGP configurations will be performed using the template method. The deployment must meet these requirements:
• The local update source for leaf switches must be loopback1.
• The router ID must be the local loopback IP address.
• The external BGP connections must use a template name.
Drag and drop the configuration snippets from the bottom to complete the configuration.


An environment consists of a Cisco MDS 9000 Series Switch that uses port channels. An engineer must ensure that frames between the source and the destination follow the same links for a specific flow. Subsequent flows are allowed to use a different link. Which load balancing method should be used to accomplish this goal?

A. src-id/dst-id

B. src-dst-oui

C. src-dst-port

D. src-id/dst-id/oxid

An engineer must configure OSPF routing on Cisco Nexus 9000 Series Switches. The IP subnet of the Eth1/2 interfaces for both switches must be advertised via
OSPF. However, these interfaces must not establish OSPF adjacency or send routing updates. The current OSPF adjacency over the interfaces Eth1/1 on SW1 and Eth1/1 on SW2 must remain unaffected. Which configuration must be applied to both Nexus switches to meet these requirements?
A.

B.

C.

D.


Refer to the exhibit. An engineer monitors ingress traffic from Host-A and all traffic for VLAN 20 from Host-B. Which configuration must be implemented to monitor and export traffic to Network Analyzer?

A. SW-1(config)# monitor session 5 SW-1(config-monitor)# source interface ethernet 1/2 rx SW-1(config-monitor)# source interface ethernet 1/1 tx SW-1(config-monitor)# source vlan 20 both SW-1(config-monitor)# destination ip 10.10.10.1 SW-1(config-monitor)# no shut

B. SW-1(config)# monitor session 5 type erspan-source SW-1(config-erspan-src)# source interface ethernet 1/2 rx SW-1(config-erspan-src)# source vlan 20 both SW-1(config-erspan-src)# destination ip 10.10.10.1 SW-1(config-erspan-src)# erspan-id 111 SW-1(config-erspan-src)# no shut

C. SW-1(config)# monitor session 5 SW-1(config-monitor)# source interface ethernet 1/2 rx SW-1(config-monitor)# source interface ethernet 1/1 both SW-1(config-monitor)# source vlan 20 both SW-1(config-monitor)# destination interface ethernet 2/1 SW-1(config-monitor)# no shut

D. SW-1(config)# monitor session 5 type erspan SW-1(config-erspan-src)# source interface ethernet 1/2 rx SW-1(config-erspan-src)# source interface ethernet 1/1 both SW-1(config-erspan-src)# destination ip 10.10.10.1 SW-1(config-erspan-src)# mtu 1000 SW-1(config-erspan-src)# no shut

What is a benefit of independent resource scaling in Cisco HyperFlex hybrid architecture?

A. remote booting of converged servers

B. flexible expansion of compute, caching, and capacity

C. multivendor converged node hardware support

D. support for compute nodes with third-party storage

Refer to the exhibit. Two Cisco Nexus Series Switches use EIGRP between their Eth1/1 interfaces. The switches are configured to support EIGRP authentication. Which set of CLI commands must be used to establish EIGRP neighborship?

A.

B.

C.

D.

Which two components are used by the Cisco Nexus switches telemetry process? (Choose two.)

A. telemetry agent

B. data encoding

C. data collection

D. telemetry compression

E. data manipulation

DRAG DROP -
An engineer is configuring VNTag between a virtualized server and a Cisco Nexus 5500 Series switch.
Drag and drop the configuration steps from the left into the correct order on the right.
Select and Place:


A network architect is asked to design and manage geographically distributed data centers across cities and decides to use a Multi-Site Orchestrator deployment.
How many orchestrators should be deployed?

A. 5

B. 3

C. 4

D. 2

DRAG DROP -

Refer to the exhibit. In a bidirectional PIM network using Phantom RP as an RP redundancy mechanism, two Cisco NX-OS routers have these requirements:
✑ R1 must be the active RP.
✑ R2 must be the backup RP that is used only if R1 is not reachable.
Drag and drop the configuration steps to complete the configuration for Router 2. Not all configuration steps are used.
Select and Place:


Which component is disrupted when the Cisco Integrated Management Controller is upgraded on a Cisco UCS Series Server?

A. SAN traffic

B. Cisco UCS Manager

C. KVM sessions

D. data traffic

DRAG DROP -
An engineer must configure HSPR protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements:
✑ It must allow more than 500 groups.
✑ switch1 must act as the primary switch.
✑ Both switches must use a user-defined hardware address.
Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used.
Select and Place:


DRAG DROP -
Drag and drop the fields for configuring a full state backup file of the Cisco UCS Manager from the left onto the descriptions on the right.
Select and Place:


Which Cisco UCS Manager XML encoded backup type must be used to back up user names, roles, and service profiles?

A. System Configuration

B. Full State Configuration

C. Logical Configuration

D. All Configuration

A network engineer connects the CNA interface of a server to a switch. The switch must bring down all of the VLANs on the interface that are not enabled for FCoE, but the VLANs that are enabled for FCoE should continue to carry SAN traffic without interruption. Which configuration should be applied to the switch to achieve this objective?

A. switch(config)# interface Ethernet 2/1switch(config-if)# shutdown force

B. switch(config)# interface Ethernet 2/1switch(config-if)# shutdown lan

C. switch(config)# interface Ethernet vfc 2switch(config-if)# shutdown force

D. switch(config)# interface vfc 2switch(config-if)# shutdown lan

An engineer is implementing NPV mode on a Cisco MDS 9000 Series Switch.
Which action must be taken?

A. NPIV must be enabled on the upstream switch.

B. The FCNS database must be disabled in the fabric.

C. A port channel must be configured to the upstream switch.

D. All switches in the fabric must be Cisco MDS switches.

An engineer is running an ACI fabric, has VMM integration with VMware vCenter, and wants to enable microsegmentation based on vCenter VM attributes.
Which statement describes microsegmentation in this scenario?

A. ACI does not support microsegmentation based on vCenter VM attributes. The network attributes should be used for microsegmentation.

B. When enabled, microsegmentation performs distributed switching and routing on the ESXi hosts.

C. Microsegmentation is supported only using AVE or AVS.

D. An ACI microsegmented EPG automatically creates a port group with a private VLAN configured on a VMware vCenter distributed virtual switch.

An engineer configures a role for a new user in Cisco UCS Manager. The role should allow the user to configure vHBAs, vNICs, and server port types. Which role should be assigned to allow the engineer to complete this task?

A. operations

B. network administrator

C. server-compute

D. AAA administrator

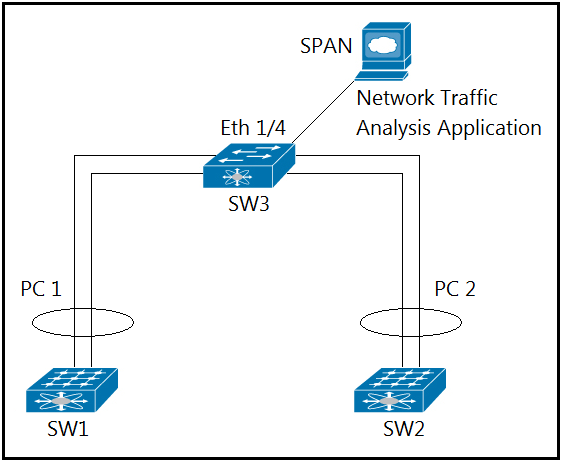

Refer to the exhibit. An engineer must monitor ingress traffic from SW1 and SW2 port-channel interfaces from SW3. Which configuration must be implemented to accomplish this goal?

A.

B.

C.

D.

An engineer performs a Firmware Auto install upgrade through the Cisco UCS Manager. Which two Cisco UCS components are available to be upgraded in the install Server Firmware stage? (Choose two.)

A. Fabric Interconnects

B. I/O Modules

C. Cisco UCS B-Series Blade Server

D. Cisco UCS C-Series Rack-Mount Server

E. Cisco UCS Manager

Which two components should be checked when a Cisco Nexus 9000 Series Switch fails to boot using POAP? (Choose two.)

A. POAP feature license

B. DHCP server to bootstrap IP information

C. image noted in the script file against switch bootflash

D. script signed with security key

E. TFTP server that contains the configuration script

DRAG DROP
-

Refer to the exhibit. An administrator is deploying BGP to geographically connect two data center sites. Both sites are configured for dual-stack routed protocols. The administrator must inject the IPv6 network 2001:AE4:1::/64 into the IPv6 unicast database. Drag and drop the SiteA commands from the right into the blanks in the configuration on the left. Commands are used more than once.


A network engineer must prevent data corruption due to cross fabric communication in an FCoE environment. Which configuration must be applied to the Cisco
Nexus Unified Switches to achieve this objective?

A. switch(config-if)# shutdown lan

B. switch(config-if)# no fcoe fcf-priority 0

C. switch(config)# fcoe fcmap 0e.fc.2a

D. switch(config)# no fcoe fcf-priority 255

Which two firmware packages are included in the Cisco UCS C-Series Rack-Mount UCS-Managed Server Software bundle? (Choose two.)

A. CIMC

B. BIOS

C. PSU

D. system

E. third-party

A customer has a requirement to deploy a cloud service and needs to have full control over the underlying OS, data and applications.
Which cloud model meets this requirement?

A. MaaS

B. PaaS

C. SaaS

D. IaaS

Refer to the exhibit. An engineer runs a Python script from a newly enabled guest shell on a Cisco Nexus 93108 Series Switch. The script needs an additional package called "Markdown" installed from the Python package manager. Which set of tasks must the engineer perform to install the required package?

A. Set the NAMESERVER variable in /etc/sysconfig/network.Clone the Markdown repository with the git clone command.

B. Add nameserver configuration to /etc/resolv.conf.Run sudo chvrf management pip install Markdown.

C. Enable ip domain-lookup in startup-config.Enter python install Markdown as root.

D. Configure ip name-server in configuration mode.Execute sudo yum -y install Markdown.

What is a benefit of using the Cisco UCS Lightweight upgrade feature?

A. A soft reboot is available for the fabric interconnects.

B. The firmware version of a component is updated only when it has been modified.

C. All servers are rebooted to push the latest updates.

D. Security updates are scheduled with the next reboot of the fabric interconnects.

Refer to the exhibit. A network engineer must configure port E1/31-32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B.
Port E1/31-32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?

A. FCoE storage

B. uplink

C. unified uplink

D. FCoE uplink

What happens to the default host firmware policy after a Cisco UCS Manager upgrade?

A. It is assigned to all the service profiles that include a host firmware policy.

B. It is replaced by a new default policy without any firmware entries.

C. It is set to match the host firmware policy.

D. It is updated to contain the firmware entries of all the components.

A network engineer plans to upgrade the firmware of a Cisco UCS B-Series chassis by using the Auto Install feature. Which component is upgraded during the infrastructure firmware upgrade stage?

A. Adapter

B. Cisco IMC

C. I/O Modules

D. BIOS

An engineer must remove the running configuration of a Cisco Nexus 9000 Series Switch and replace it with a backup file without restarting the switch. The backup file is stored on an SFTP server that is reachable via the mgmt0 interface.
Which set of commands accomplishes this task?

A. configure replace sftp://admin@192.168.10.100/backup.cfg vrf mgmt0 copy running-config bootflash://startup-config

B. copy sftp://admin@192.168.10.100/backup.cfg bootflash:///backup.cfg vrf management configure replace bootflash:///backup.cfg

C. copy sftp://admin@192.168.10.100/backup.cfg startup-config vrf mgmt0 copy startup-config running-config

D. copy sftp://admin@192.168.10.100/backup.cfg startup-config vrf management reload in 10

The Cisco Nexus switch Generic Online Diagnostics policy for a PortLoopback test requires 10 consecutive failures to error disable the port. The customer wants to change it to 5 consecutive failures. Which configuration applies the changes for module 1 only?

A. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 publish-event

B. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 publish-default

C. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 policy-default

D. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 policy-event

An engineer must implement a disaster recovery policy for the Cisco UCS infrastructure. The solution must meet these criteria:
✑ The Recovery Point Objective must be 48 hours.
✑ The backup must use encrypted transmission.
The Recovery Time Objective must be 4 hours.

Which configuration set must be used in the scheduled backup to meet these requirements?

A. Protocol: FTP Schedule: Bi-Weekly

B. Protocol: SFTP Schedule: Weekly

C. Protocol: TFTP Schedule: Bi-Weekly

D. Protocol: SCP Schedule: Daily

An engineer implements an Application Performance Monitoring (APM) solution. The solution runs in a vSphere infrastructure where the vSwitch support for promiscuous mode is disabled for security reasons. As a result, the final implementation must receive a copy of bidirectional traffic to a load balancer that is connected to a Cisco Nexus 93108 Series Switch. The APM solution supports GRE encapsulated traffic. Which configuration must be applied to the switch to meet this requirement?

A. interface vlan1switchport monitordestination ip 10.1.1.1exitmonitor session 1 rxmonitor session 1 txsource interface ethernet1/9

B. monitor session 1 bothsource interface ethernet 1/9destination interface ethernet 1/12erspan-id 1vrf mgmt0filter vlan 3no shut

C. configure terminalmonitor session 1 type erspan-sourceerspan-id 1destination ip 10.1.1.1source interface ethernet 1/9 bothvrf defaultno shut

D. interface ethernet 1/9erspan-id 1monitor session 1 type erspan-sourceinterface mgmt0monitor session 1 type erspan-destinationdestination ip 10.1.1.1no shut

An engineer must suggest deployment model for a newly developed application. The engineer has a small starting budget and lacks technical knowledge and infrastructure to implement storage, operating system, and database services to support the application deployment. The engineer also needs usage data related to the service and the ability to elastically scale the deployment as customer demands grow. Which two models must be used to meet the requirements? (Choose two.)

A. infrastructure as a service

B. public cloud

C. software as a service

D. private cloud

E. platform as a service

An engineer is duplicating an existing Cisco UCS setup at a new site.
What are two characteristics of a logical configuration backup of a Cisco UCS Manager database? (Choose two.)

A. contains the configured organizations and locales

B. contains the VLAN and VSAN configurations

C. contains the AAA and RBAC configurations

D. contains all of the configurations

E. contains a file with an extension.tgz that stores all of the configurations

What is a characteristic of the install all command on the Cisco Nexus Series Switch?

A. automatically checks the image integrity

B. continues the upgrade process if any step in the sequence fails

C. upgrades only certain modules

D. impacts data plane traffic

An engineer must use the Embedded Event Manager to monitor events that occur on a Cisco Nexus 9000 Series Switch. An environment variable needs to be created so that several policies use the monitored events in their actions. The external email server is represented by IP address 10.10.10.10. Which command sets the environment variable?

A. n9k2# event manager environment mailserver “10.10.10.10”

B. n9k2(config)# event manager environment mailserver “10.10.10.10”

C. n9k2(config-applet)# environment mailserver “10.10.10.10”

D. n9k2(config)# event manager policy environment mailserver “10.10.10.10”

A UCS B-Series server located in B5108 chassis 1 slot 1 is currently unavailable. The server needs to be associated with a specific service profile when it becomes available. Which associate service profile option should be selected to accomplish this goal?

A. restrict migration

B. server pool

C. server

D. custom server
