An IOM fails during a firmware upgrade and is unresponsive. Which action recovers the module?

A. Restore the Cisco UCS Manager configuration from backup.

B. Roll back to the previous firmware.

C. Reinstall the firmware using Auto Install.

D. Reset the faulty module from the peer IOM.

An engineer upgrades Cisco UCS firmware from release 3.1(2) to release 3.1(3) using AutoInstall. Both fabric interconnects go offline during the software upgrade installation and issue multiple FSM retries in the DeployPollActivate stage. Which set of actions resolves the issue?

A. Clear the startup version of the default infrastructure and server pack.Remove the service pack from the subordinate node.Upgrade with the Force attribute through AutoInstall.

B. Enable the management interface monitoring policy on the fabric interconnects.Initiate a configuration backup on both fabric interconnects.Commit the pending fabric interconnect reboot activity.

C. Fix the rights to 666 with the debug plugin on the primary fabric interconnect.Save the current configuration on the running fabric interconnect.Continue the upgrade on both fabric interconnects.

D. Acknowledge the error and reboot the primary fabric interconnect.Clear the default firmware version and upload a new one.Restart the upgrade process manually.

Refer to the exhibit. The HSRP configuration in the exhibit fails to function. Which action resolves this issue?

A. Enable IP redirects.

B. Set the MTU to 1500 bytes.

C. Configure HSRP version 2.

D. Configure the same HSRP group on both devices.

Refer to the exhibit. A Cisco UCS system fails to access the storage array. Which two actions taken on both MDS switches resolve the issue? (Choose two.)

A. Enable the fport-channel-trunk feature.

B. Change the switch port mode to an E port.

C. Configure a port channel with both interfaces as members.

D. Replace the SFPs on interswitch links.

E. Issue the no shutdown command on interface fc1/24.

Which control plane is used according to this output?


A. flood-and-learn MAC address learning

B. BGP EVPN

C. flood-and-learn IP address learning

D. VXLAN OAM

Refer to the exhibit. An engineer discovers that if the vPC peer link goes down, half of the devices in VLAN 20 experience connectivity issues with the external networks Which action resolves the issue?

A. Configure a dedicated Layer 3 link between vPC peers

B. Allow non-vPC VLANs on a second trunk between the two vPC peers

C. Add the non-vPC SVIs in the dual-active exclude VLAN list

D. Exclude the non-vPC VLANs from vPC peer link

Refer to the exhibit. After an unexpected reload of the Cisco Nexus 9000 Series Switch, the network administrator noticed that one of the Software Maintenance Upgrades (SMU) images is inactive. The engineer must ensure that the package remains active after the switch is reloaded in the future. Which action accomplishes this goal?

A. Copy the SMU package file on the bootflash

B. Deactivate and uninstall the active core package

C. Save the running configuration after activating the package

D. Commit the package using the install commit command

Refer to the exhibit. An engineer is experiencing a problem when running a Docker container inside the Cisco Nexus 9000 bash shell. Which action resolves the issue?

A. Add a new nameserver

B. Connect to bash as a different user

C. Change VRF to management

D. Configure the mgmt0 interface

An engineer attempts to register Cisco UCS Manager to Cisco UCS Central, but the registration fails. The engineer can ping Cisco UCS Central from UCS
Manager. Which two actions must the engineer attempt to resolve the problem? (Choose two.)

A. Synchronize the date and time to NTP for Cisco UCS Central and the Cisco UCS domains.

B. Apply the UCS Central license to UCS Central.

C. Place Cisco UCS Manager on the same subnet as Cisco UCS Central.

D. Allow port 443 between Cisco UCS Manager and Cisco UCS Central.

E. Allow port 9443 between Cisco UCS Manager and Cisco UCS Central.

Refer to the exhibit. A network engineer traces the packet flow from the Veth991 of a blade server toward the core switch. The switch reports performance issues. What is the role of the interface Eth1/7?

A. IOM network interface

B. fabric interconnect uplink interface

C. IOM host interface

D. server interface

Refer to the exhibit. A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?

A. Disable priority flow control on the interface.

B. Enable priority flow control on the interface.

C. Apply flowcontrol transmit on the interface.

D. Apply flowcontrol receive on the interface.

Refer to the exhibit. An engineer configures EVPN on Switch-1. but the neighbors fail to exchange EVPN routes. Which action resolves the issue?

A. Configure neighbor 192.168.0.7 as an L2VPN EVPN route-reflector client.

B. Activate the IPv4 unicast address family for neighbor 192.168.0.7.

C. Enable the send extended community option for the L2VPN EVPN address family.

D. Advertise L2VPN EVPN under the IPv4 unicast address family.

Refer to the exhibit. An attempt to bind the Ethernet interface to vFC fails. Which action resolves the issue?

A. Add the FCoE VLAN to the allowed VLAN list.

B. Configure the FCoE VLAN that corresponds to the vFC VSAN as a private VLAN.

C. Configure the interface as a trunk port.

D. Configure the interface to use the native VLAN of the trunk port.

Refer to the exhibit. A network engineer creates an EEM script to trigger an SNMP notification when a user enters configuration mode, but the trap is not received when the condition is met. Which action resolves the issue?

A. Append action 2.0 event-default to the script

B. Append action 2.0 cli “conf t” to the script

C. Modify snmp-trap strdata “Configuration changed” to syslog msg Configuration changed

D. Modify cli match “conf t” to “snmp match “conf t”

Refer to the exhibit. A customer reports that all Intra-EPG isolation stopped working within a bare-metal tenant. Postman is running on a machine to get information from the APIC in case of orchestration failure. Which action resolves the issue?

A. Match encap=”vlan-10″ and primaryEncap=”vlan-110″

B. Change pcEnfPref=”unenforced” to pcEnfPref=”enforced”

C. Remove primaryEncap=”vlan-110″ from the specific port path

D. Modify the GET command to reference the valid path for the managed object

Refer to the exhibit. An administrator directly connects a Fibre Channel storage array to ports 1 through 4 on a Cisco UCS 6454 Fabric Interconnect. The administrator configures a service profile to boot directly from the new Fibre Channel storage array, but the service profile fails to boot. When the administrator checks the output of the show flogi database command on the fabric interconnect, it shows the output presented in the exhibit. Which action resolves the issue?

A. Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Multiple Target.

B. Configure the fabric interconnects in Fibre Channel end-host mode.

C. Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Single Target.

D. Configure the fabric interconnects in Fibre Channel switch mode.

An engineer must upgrade all components in a Cisco UCS domain to the same package version, but the upgrade process fails to complete. Which set of Auto Install actions resolves the problem?

A. Install Server Firmware, then Install Infrastructure Firmware.

B. Install Hypervisor Firmware, then Install Infrastructure Firmware.

C. Install Infrastructure Firmware, then Install Hypervisor Firmware.

D. Install Infrastructure Firmware, then Install Server Firmware.

Refer to the exhibit. An engineer discovered a VFC interface in a down state on a Cisco Nexus Switch. Which action resolves the problem?

A. Change the cable between the switch and the server

B. Reset the Cisco Nexus port toward the file server

C. Update the CNA firmware and driver versions

D. Modify the fip keepalive message time to 30 seconds

Refer to the exhibit. An engineer is configuring boot from iSCSI on a Cisco UCS B-Series Blade Server, but the LUN fails to mount. Which action resolves the issue?

A. Statically configure the target information in the Boot Policy.

B. Configure an MTU size of 9000 on the appliance port.

C. Configure a QoS policy on the vNIC.

D. Set a connection timeout value of 250 in the iSCSI Adapter Policy.

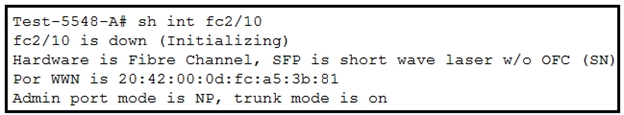

Refer to the exhibit. A new Cisco Nexus 5548 Switch connects to a network. SAN switching is configured on the switch. The switch fc2/10 NP uplink is shown in the exhibit. Which action ensures that fc2/10 is in an up state?

A. Replace the SFP port module in fc2/10.

B. Configure the admin port type E on the upstream switch that connects the port.

C. Enable NPIV on the upstream switch that connects the port.

D. Configure the BB_credit buffers on the upstream switch that connects the port.

A Cisco ACI environment consists of three Cisco APICs, two spine switches, and four leaf switches. The engineer erases and reboots all APICs first, then leaf and spine switches individually, and then completes the Initial Setup dialog on the APIC1 CIMC KVM console. When the engineer logs in to the APIC1 web GUI, the engineer notices that there are no directly connected leaf switches being discovered under Fabric > Inventory > Fabric Membership. What is the cause of the issue?

A. The leaf nodes were not erased properly, which caused a fabric parameters mismatch with the APIC1.

B. Rebooting the APICs and the leaf and spine switches after wiping them is not required.

C. The engineer did not enter the TEP Pool value during the Initial Setup dialog on APIC1.

D. The same Fabric Name value should be used before and after wiping all devices.


Refer to the exhibit. Server 1 and Server 2 are bare-metal Windows-based servers and can exchange ICMP PING messages. However, both servers fail to ping their default gateway. Which action resolves the problem?

A. Change the MTU value of the server.

B. Disable Fabric Failover.

C. Set the native VLAN ID to 10.

D. Assign the NIC to the pin group.

An engineer enables the packet postcards feature on a Cisco Nexus 9000 Series Switch but receives this error message:
“Error: Cannot configure postcard when inband-telemetry is configured.”
Which action resolves the issue?

A. Disable the hardware-telemetry feature.

B. Disable the telemetry feature.

C. Disable the software-telemetry feature.

D. Disable the inband-telemetry feature.

A Fibre Channel interface on a Cisco Nexus 5000 Series Switch receives bit errors, and the switch disables the interface. A temporary workaround must be implemented before the root cause is identified. Which action prevents this issue from reoccurring?

A. Verify that the SFPs are supported.

B. Change the SFP to operate at 4 Gbps instead of 2 Gbps.

C. Run the shutdown and then no shutdown commands on the interface.

D. Run the switchport ignore bit-errors command on the interface.

An engineer removes a VMM domain from an endpoint group called "EPG-1", but the distributed port group fails to be deleted. Which action resolves the issue?

A. Manually remove the port group.

B. Migrate all virtual machines in the EPG-1 to different hypervisors.

C. Remove the remaining EPGs from the VMM domain.

D. Migrate all virtual machines in the EPG-1 to different port groups.

Refer to the exhibit. A network engineer is troubleshooting an issue where a user reports that they failed to reach the business application server while N9K-1 is down. Which action resolves the issue?

A. Change the priority value of the N9K-2 switch to 120.

B. Remove the peer-switch feature from the N9K-2 switch.

C. Remove the VPC configuration from the application server interface configuration.

D. Configure the peer-gateway feature on both Cisco Nexus switches.

Refer to the exhibit. Server A and Server B experience inter-L2VN reachability issues. A BGP L2VPN session is up on both leaf switches and each leaf switch learns the host routes of its local server, but the remote host routes are not in the VRF routing table. Which configuration resolves the issue?

A. Associate Layer 3 VNI to VRF on the NVE interface for both leaf switches.

B. Modify multicast groups on Leaf1 to be unique per VNI.

C. Apply an anycast gateway to each SVI gateway on both leaf switches.

D. Configure BGP VPNv4 neighborship between the leaf switches and the spine.

An engineer troubleshoots FCoE on a Cisco MDS 9000 Series Switch. What does this output indicate about port channel 1?


A. Port channel 1 is configured to connect to an NPIV switch.

B. Port channel 1 is configured to be an ISL.

C. Port channel 1 is configured to connect to an NPV switch.

D. Port channel 1 is configured to connect to a host bus adapter.


Refer to the exhibit. To avoid service disruption, an engineer must move the server from LEAF_1 to LEAF_2. After running the test, the engineer noticed that LEAF_2 failed to forward network traffic into the VXLAN fabric. The BGP, interface NVE, and VNI were confirmed to be configured as expected. Which two actions must be taken on LEAF_2 to resolve the issue? (Choose two.)

A. Add fabric forwarding mode anycast-gateway on interface Vlan100.

B. Configure correspondent IP addressing on every interface.

C. Change the fabric forwarding anycast-gateway-mac MAC address.

D. Remove ip forward from interface Vlan30 and add it on interface Vlan100.

E. Enable HMM tracking to advertise host routes into the VXLAN fabric.

An engineer is recovering a fabric interconnect from a failed upgrade. The engineer booted the fabric interconnect to the switch(boot)# prompt and copied all the required images. Which image must be linked to nuova-sim-mgmt-nsg.0.1.0.43404505131.bin to make the management image compliant with the Cisco UCS Manager?

A. Kickstart

B. UCS Manager

C. System

D. Cisco IMC

An engineer troubleshoots a VXLAN EVPN data center. The applications in the data center fail to reach the DNS server that is located at IP 10.10.10.10. The engineer examines the BGP EVPN routing table and notes that the IP prefix route that covers the DNS server is missing. Which action resolves the issue?

A. Set the IP prefix route to represent [5]:[0]:[0]:[32]:[10.10.10.10]/224 in the routing table.

B. Set the IP prefix route to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[0]:[0.0.0.0]/216 in the routing table.

C. Configure an IP ARP entry to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[32]:[10.10.10.10]/272 in the routing table.

D. Configure an IP ARP entry to represent [4]:[0300.0000.00fc.bd00.0309]:[32]:[10.10.10.10]/136 in the routing table.

Refer to an exhibit. An engineer is troubleshooting an upgrade failure on a switch. Which action resolves the issue?

A. Save the system image in NVRAM.

B. Use the same system image as the kickstart image.

C. Load a new system image.

D. Reload the same system image.

Refer to the exhibit. An engineer configures the server port on a Cisco Nexus 5000 Series Switch. The switch connects to an NPV edge switch port. The server fails to send the FC traffic to the fabric. Which action resolves the issue?

A. Enable the NPIV mode on the Cisco Nexus 5000 switch.

B. Match the VSAN membership on both ends of the connection.

C. Configure the BB_credit buffer on the uplink port.

D. Replace the SFP in slot fc2/12.

A Cisco UCS C-Series Server powers off due to a power outage. The server should turn on when the power is restored with a fixed delay of 3 minutes. However, it remained powered off for more than 3 minutes after the engineer powered it back online. Which two actions resolve the issue? (Choose two.)

A. Configure the power-restore-policy.

B. Configure the power restore last-state policy.

C. Configure power sync policy.

D. Set the delay fixed value to 3.

E. Set the delay value to 180.

A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue?
(Choose two.)

A. Configure the NVE interfaces to be Up on both switches.

B. Set a different distributed gateway virtual MAC address.

C. Set a different secondary IP addresses on NVE source-interface.

D. Configure the same VNI to multicast group maping.

E. Set a different primary IP addresses on NVE source-interface.

An engineer troubleshoots a packet flow from an access leaf to a spine. Which EVPN routes are expected on this connection?

A. EVPN Type 1-5

B. EVPN Type 0, 9, and 15

C. EVPN Type 9-15

D. EVPN Type 0 and 16

Refer to the exhibit. The VXLAN fabric is deployed with this configuration:
• The VLAN 50 interface has no IP address on VTEP1 and VTEP4
• The VLAN 100 interface has no IP address on VTEP2 and VTEP3
• The nve1 interface is configured on all VTEPs
Host A experiences timeouts when attempting to ping host B. Which set of actions allows host A to reach host B?

A. On VTEP1, associate VNI 50000 to Test_Telco VRFOn VTEP4, associate VNI 50000 to Test_Telco VRF

B. On VTEP2, associate VNI 30000 to Test_Telco VRFOn VTEP4, associate VNI 20000 to Test_Telco VRF

C. On VTEP1, associate VNI 30000 to Test_Telco VRFOn VTEP4, associate VNI 20000 to Test Telco VRF

D. On VTEP2, associate VNI 55000 to Test_Telco VRFOn VTEP4, associate VNI 50000 to Test_Telco VRF


Refer to the exhibits. The server traffic fails to reach the storage array. Which action resolves the issue?

A. Change the VLAN ID and VSAN ID at both ends.

B. Change port speed to auto mode.

C. Remove and add new SFP on both ends.

D. Reboot and configure the M5K switches.

An engineer is troubleshooting an unexpected blade-server reboot. One of the DIMMs is displayed inside Cisco UCS Manager as "degraded with correctable errors" but is still available for the OS to use. Which action resolves the issue?

A. Reset the Cisco UCS chassis.

B. Replace the DIMM.

C. Reset the BMC.

D. Replace the CPU.

Refer to the exhibit. The OTV overlay is deployed in multicast mode. After an unexpected reload of N7K-SITE1-OTV1, the network administrator observed that on N7K-SITE1-OTV2 the OTV site adjacency went into the partial state. Which action resolves the issue?

A. Change the Site-VLAN on N7K-SITE1-OTV2 to VLAN 1.

B. Enable IP IGMP version 3 on the join interface on N7K-SITE1-OTV1.

C. Configure the Site-Identifier on N7K-SITE1-OTV1 to 0002.0002.0002.

D. Modify the multicast data-group on N7K-SITE1-OTV1 to match N7K-SITE1-OTV2.

Refer to the exhibit. The EEM applet generates an SNMP string every time a user executes the show ip route command. After the applet was deployed, other engineers reported that they can no longer use the show ip route command to view the routing information. Which action resolves the issue?

A. Include a show ip route CLI action statement.

B. Add the event-default action statement to the end of the script.

C. Modify the event-default action statement to match a syslog pattern.

D. Create a command alias for show ip route.

Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. What occurs in this scenario?

A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.

B. Sw1 performs the VXLAN multicast encapsulation and decapsulation for all traffic associated with the VXLAN VNIs.

C. Sw1 and Sw2 perform the VXLAN multicast encapsulation and decapsulation for all traffic associated with the VXLAN VNIs, depending on the hashing.

D. Sw2 does not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

An engineer discovers that an NPV/NPIV uplink experiences a heavy load and plans to add more uplinks. What occurs when the new uplinks are added to the uplink?

A. Only new connections automatically use the new uplinks.

B. Paths must be defined before new connections use the new uplinks.

C. All connections must be reset before the new uplinks are used.

D. New and existing connections automatically use the new uplinks.

Refer to the exhibit. An engineer investigates a role-mapping issue on a switch. Users report that they cannot view the IP addresses under the tenant "corp".
Which action resolves the issue?

A. Add the users to the RADIUS server.

B. Update the UNIX ID.

C. Configure the correct secret password between the APIC and the RADIUS server.

D. Add the updated avpair to include /corp/admin/.

A client reports that many flaps and server cluster disconnects are occurring in its data center. While troubleshooting the issue, an engineer discovers that a network attack is hitting the Cisco Nexus 7000 Series Switches and that the source IP addresses are spoofed. Which first-line security solution resolves this issue?

A. Dynamic ARP Inspection

B. Unicast RPF

C. IP Source Guard

D. Storm Control

A customer reports that the Chassis Management Controller fails to receive chassis information from Cisco UCS Manager. Which set of steps resolves the issue?

A. 1. Verify that the IOM firmware and Cisco UCS Manager are at different software levels.2. Verify that at least two physical cables between the IOM and fabric interconnect function properly.3. Check for runtime link down status.4. Reseat the affected IOM.

B. 1. Verify that the IOM firmware and Cisco UCS Manager are at the same software level.2. Verify that at least one physical cable between the IOM and fabric interconnect functions properly.3. Check for runtime link down status.4. Reseat the affected IOM.

C. 1. Verify that the IOM firmware and Cisco UCS Manager are at the same software level.2. Verify that at least two physical cables between the IOM and fabric interconnect function properly.3. Check for runtime link down status.4. Reseat the affected IOM.

D. 1. Verify that the IOM firmware and Cisco UCS Manager are at different software levels.2. Verify that at least one physical cable between the IOM and fabric interconnect functions properly.3. Check for runtime link down status.4. Reseat the affected IOM.

A network administrator adds several Cisco UCS C-Series servers to the existing Cisco UCS environment. Some of the servers fail to be discovered in Cisco UCS Manager. Which two actions resolve the issue? (Choose two.)

A. Enable fabric interconnect ports as appliance ports.

B. Place the VIC card in the correct PCIe slot.

C. Update the FEX software version.

D. Remove custom configurations from Cisco IMC.

E. Update the RAID software controller.

Refer to the exhibit. The vPC neighborship between two switches is in suspended state. Which configuration change resolves the issue and brings up the vPC neighborship?

A. Change STP Port Type to Network on the peer switch

B. Enable Bridge Assurance on the local switches

C. Configure QoS MTU value of 9216 on the peer switch

D. Add VLAN 400-401 to the configuration on the local switch

Refer to the exhibit. An engineer fails to implement OSPF routing on a Cisco Nexus 9000 Series Switch. Which action resolves the issue?

A. Enable the OSPF feature.

B. Remove invalid characters from the command.

C. Populate the OSPF database.

D. Wait for the OSPF adjacency to be established.



Refer to the exhibit. A network engineer must use BGP to route IPv4 and IPv6 routes between R1 and R2. The IPv4 addresses are exchanged as expected between the routers through BGP. The routers have reached an Established BGP state. However, the IPv6 routes from R2 fail to show in the routing table of R1. Which action resolves the issue?

A. Enable IPv6 routing on R1.

B. Create a route map that sets the IPv6 next hop.

C. Configure an IPv6 BGP neighbor on R1.

D. Advertise L2VPN EVPN under IPv4 unicast address family.
