FILL BLANK -
Information about a rebooted device needs to be displayed with an ID of 260faff9-2d31-4312-cf96-143b46db0211 using the Cisco SD-WAN vManage
Administration APIs. The API documentation states that deviceId is a required request parameter. Fill in the blank to create the REST call.


When a Grafana dashboard is built to receive network events from Cisco DNA Center, which integration bundle is enabled to send notifications?

A. Basic ITSM CMDB Synchronization

B. DNA Center Rest API

C. Network Events for REST API Endpoint

D. Network Issue Monitor and Enrichment for ITSM

DRAG DROP -
Drag and drop the characteristic from the left onto the monitoring type described on the right.
Select and Place:


Refer to the exhibit. Which XML tag completes this NETCONF telemetry subscription with a Cisco IOS XE device?

A. crontab

B. cadence

C. frequency

D. period

Which two factors influence the location accuracy of a device using Scanning APIs? (Choose two.)

A. AP placement

B. device manufacturer/OS

C. client device orientation

D. battery life of the device

E. amount of device antennas

Setting is used for the dampening period when configuring an on-change publication for YANG-push versus OpenConfig.
What are two characteristics of synchronous calls to APIs? (Choose two.)

A. They block until a response is returned from the servers

B. They make an application less portable, so asynchronous calls are preferred

C. They add perceived latency to an application if data is not received

D. Calls are limited to specific programming languages

E. They do not block while waiting for the API to be processed

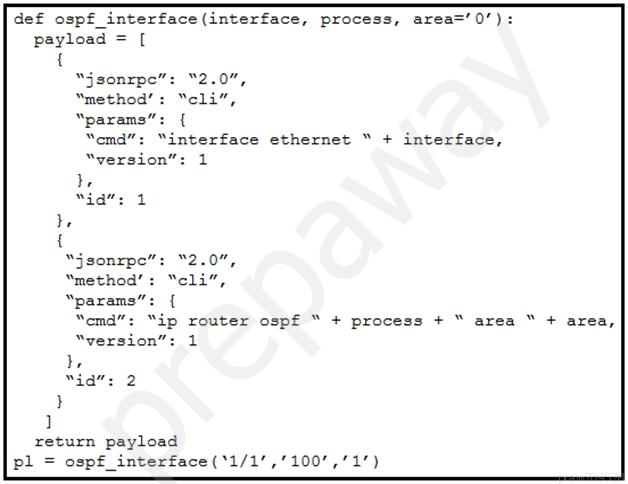

Refer to the exhibit. Which interface is included in the payload resulting from the script?

A. ethernet 1

B. ethernet 100

C. ethernet 1/1

D. ethernet 0

DRAG DROP -
Drag and drop the code from the bottom onto the box where the code is missing to construct a Python script to automate the process of updating the site-to-site
VPN settings of the network. Not all options are used.
Select and Place:


Refer to the exhibit. Which device type is functioning in a degraded state?

A. access point

B. distribution switch

C. access switch

D. wireless LAN controller

Which HTTP request is valid to create a new wireless network called `Demo Wireless Network` in the organization `QASD-EROA-MKAW`?
A.

B.

C.

D.


DRAG DROP -

Refer to the exhibit. A GET request is issued to the Cisco DNA Center REST API. Drag and drop the GET request URL subpaths from the left onto the objectives on the right. Not all options are used.
Select and Place:


Refer to the exhibit. A Python script is used to configure a Cisco IOS XE device. The script must be updated to print the IP addresses of all the loopback interfaces. Which statement should be added before the loop?

A. interfaces = response.json()[ג€ietf-interfaces:interfacesג€]

B. interface = response.json()[ג€ietf-interfaces:interfacesג€]

C. interface = response.json()[ג€ietf-interfaces:interfacesג€][ג€interfaceג€]

D. interfaces = response.json()[ג€ietf-interfaces:interfacesג€][ג€interfaceג€]

Which two API calls are used to trigger a device configuration sync in Cisco DNA Center? (Choose two.)

A. PUT /dna/intent/api/v1/network-device

B. PUT /dna/intent/api/v1/network-device/sync-all

C. PUT /dna/intent/api/v1/network-device/{networkDeviceId}/sync

D. PUT /dna/intent/api/v1/network-device/sync

E. POST /dna/intent/api/v1/network-device/{networkDeviceId}/sync

Which two Cisco DNA Center features are needed to add legacy devices on the platform? (Choose two.)

A. multivendor SDK support

B. trusted device profile update

C. device package creation

D. device package download

E. device profile replication

Refer to the exhibit. The configuration commands are entered in CLI config mode to configure a static telemetry subscription on a Cisco IOS XE device. The commands are accepted by the device, but the consumer receives no telemetry data. Which change must be made to ensure that the consumer receives the telemetry data?

A. The IP address of the receiver must be set.

B. The stream type must be set to YANG.

C. The update policy period must be shortened.

D. The sender IP address must be set.

With the MV Sense API, which REST endpoint provides LUX level?

A. /merakimv/XXXX-XXXX-XXXX/light

B. /merakimv/XXXX-XXXX-XXXX/raw_detections

C. /merakimv/XXXX-XXXX-XXXX/0

D. /merakimv/XXXX-XXXX-XXXX/zones

The Cisco DNA Center Sites API must be used to add a device to a site, but only the site name is available. Which API call must be used to retrieve the site identifier so that the device can be properly added to the network?

A. /dna/intent/api/site/siteId

B. /dna/intent/api/site

C. /dna/intent/api/v1/site

D. /dna/intent/api/v1/site/siteName

Refer to the exhibit. What is the result when running the Python scripts?

A. s1

B. s2

C. s1, s2, s3

D. s3

Which two actions do Python virtual environments allow users to perform? (Choose two.)

A. Simplify the CI/CD pipeline when checking a project into a version control system, such as Git.

B. Efficiently port code between different languages, such as JavaScript and Python.

C. Run and simulate other operating systems within a development environment.

D. Quickly create any Python environment for testing and debugging purposes.

E. Quickly create an isolated Python environment with module dependencies.

During a network outage, a network administrator used the Cisco SD-WAN vManage Troubleshooting Dashboard APIs to troubleshoot the cause of the issue.
Which detail is captured during troubleshooting with these APIs?

A. VPN health

B. public cloud resources

C. connections summary

D. OMP connection health

When working with MV Sense APIs, which type of protocol is MQTT based upon?

A. publish-subscribe messaging protocol

B. simple mail transport protocol

C. heavyweight messaging protocol

D. computer vision protocol

Which Python snippet receives a Meraki webhook request?
A.

B.

C.

D.


Which two Netmiko methods are used to configure a device? (Choose two.)

A. send_config()

B. send_control_from_file()

C. send_config_set()

D. send_command()

E. send_config_from_file()

When the Cisco DNA Center Intent API is used as part of an automation process, what prompts receiving a HTTP 206 status code on a call?

A. The client authentication credentials that are included with the request are missing or invalid

B. The client made a request for partial content matching a range header

C. The client request was successful, but there is no content associated with the request

D. The client made a request that has been received but not yet acted upon

What is primary purpose of using the Cisco SD-WAN vManage Certificate Management API?

A. to securely deploy vManage

B. to report an issue to Cisco TAC

C. to install signed certificates

D. to contact Enterprise Certificate Authority

FILL BLANK -
Fill in the blank to complete the statement.


FILL BLANK -
Fill in the blank to complete the statement.
___________________ is a solution for automating the configuration of a device when it is first powered on, using DHCP and TFTP.

Which two statements are benefits of YANG-push telemetry data over traditional data collection methods? (Choose two.)

A. The subscription requests use less bandwidth than SNMP polls.

B. It uses UDP rather than TCP.

C. You can precisely define data subscriptions.

D. It scales better than SNMP.

E. It is supported on more devices than SNMP.

Refer to the exhibit. How many YANG models does the NETCONF  operation interact with?

A. one

B. two

C. three

D. four

Refer to the exhibit. The goal is to write a Python script to automatically send a message to an external messaging application when a rogue AP is detected on the network. The message should include the broadcast SSID that is in the alert. A function called `send_to_application` is created, and this is the declaration: send_to_application(message)
The exhibit also shows the data that is received by the application and stored in the variable return_val. Which Python code completes the task?
A.

B.

C.

D.


Which URI removes an administrator from a Meraki network using an API call?

A. DELETE https://api/meraki.com/api/v0/organizations//admins/

B. DELETE https://api/meraki.com/api/v0/admins/

C. PUT https://api/meraki.com/api/v0/organizations//admins/?delete=

D. DELETE https://api/meraki.com/api/v0/organizations//admins/

What is the purpose of using the Cisco SD-WAN vManage Certificate Management API?

A. to generate a CSR

B. to allocate resources to the certificate server

C. to request a certificate from the certificate server

D. to enable vManage Center

What are two characteristics of REST API calls? (Choose two.)

A. unencrypted

B. non-cacheable

C. stateless

D. implemented over HTTP

E. parameters passed in the headers

Refer to the exhibit. An engineer creates an Ansible playbook to configure VRF information using a local_vrfs variable. The code must be completed so that it can be tested. Which string completes the code?

A. present

B. up

C. on

D. active

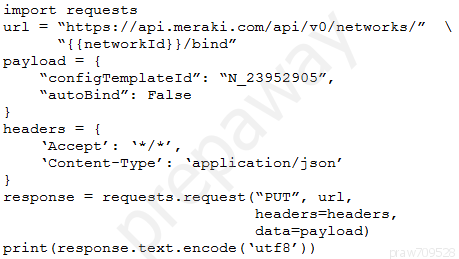

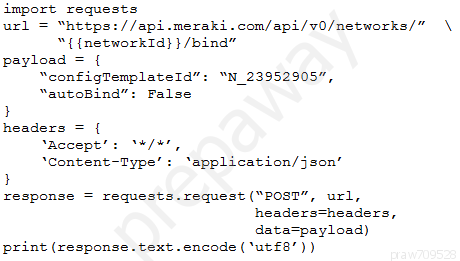

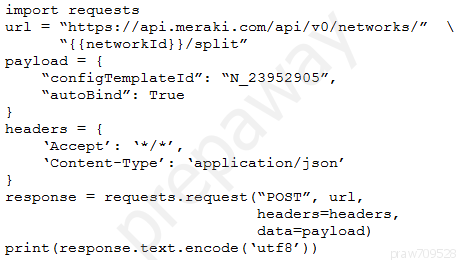

Which script binds a network to a template?
A.

B.

C.

D.


Refer to the exhibit. Which two parameters are mandatory when the Cisco Meraki API is used to create a network? (Choose two.)

A. timezone

B. disableMyMerakiCom

C. type

D. tags

E. organizationId

An engineer needs to create a new network using the Meraki API. Which HTTP action to the URL https://api.meraki.com/api/v0/organizations// networks will result in a 201 response code?

A. GET

B. POST

C. PUT

D. ADD

FILL BLANK -
Fill in the blank to complete the URL for the Cisco SD-WAN API that retrieves a list of users that are logged into a device.


A network administrator must troubleshoot a network issue using Cisco DNA Center. Which API request helps to determine issue details, impacted hosts, or suggested actions for the resolution?

A. /dna/intent/v1/issues

B. /dna/intent/api/v1/issues

C. /dna/intent/v1/issue-enrichment-details

D. /dna/api/v1/client-health/issues

DRAG DROP -
Drag and drop the code from the bottom onto the box where the code is missing to complete this API request against the Cisco SD-WAN vManage Statistics API, which specifies a device with an Id of 100faff9-8b36-4312-bf97-743b26bd0211, a local color of biz-internet, and a remote color of gold. Not all options are used.
Select and Place:


Which curl command is used to update the SNMP community of network ID `1234567` to read-only?
A.

B.

C.

D.


Which statement describe the difference between OpenConfig and native YANG data models?

A. Native models are designed to be independent of the underlying platform and are developed by vendors and standards bodies, such as the IETF.

B. Native models are developed by individual developers and designed to apply configurations on platforms.

C. OpenConfig models are developed by vendors and designed to integrate to features or configurations that are relevant only to that platform.

D. Native models are developed by vendors and designed to integrate to features or configurations that are relevant only to that platform.

DRAG DROP -
Drag and drop the commands to the Ansible playbook that applies configuration to an interface on a Cisco IOS XE device. Not all options are used.
Select and Place:


A configuration has been made to add to every switch port a new port description. The script worked initially, but after a few seconds, an HTTP 429 status code was received. What causes this error message from the Meraki cloud?

A. The wrong API key is used to query the data.

B. The rate limit of the Cisco Meraki API is exceeded.

C. The API key has expired.

D. The device goes offline while you poll the API dashboard.

Which path do calls begin with to implement Cisco DNA Center Intent APIs?

A. /intent

B. /dna/v1

C. /dna/api/intent/v1/

D. /dna/system/api/v1/

What are two characteristics of synchronous calls to APIs? (Choose two.)

A. They can be used only with certain programming languages.

B. They make your application less portable, so asynchronous calls are preferred.

C. They can add perceived latency to your application if data is not received.

D. They block until a response is returned from the servers.

E. They do not block while waiting for the API to be processed.

When accessing the /device-detail endpoint in Cisco DNA Center, what is an acceptable SearchBy parameter value?

A. platform type

B. IP address

C. software version

D. MAC address

Refer to the exhibit. The task is to create a Python script to display an alert message when a Meraki MX Security Appliance goes down. The exhibit shows sample data that is received. Which Python snippet displays the device name and the time at which the switch went down?
A.

B.

C.

D.


Which two network assurance features are provided by the Cisco DNA Center API? (Choose two.)

A. site health

B. license compliance health

C. client health

D. Cisco APIC appliance health

E. Cisco DNA Center appliance health

The automation engineer must replace device configuration using RESTCONF. How is this configured using the Python library Requests?

A. delete()

B. post()

C. put()

D. patch()
