UTP Cabling

Explain how UTP cable is used in Ethernet networks.

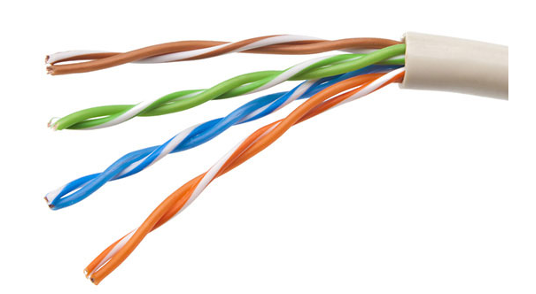

Properties of UTP Cabling

  • UTP has four pairs of color-coded copper wires twisted together and encased in a flexible plastic sheath. No shielding is used. UTP relies on the following properties to limit crosstalk:
    • Cancellation – Each wire in a pair of wires uses opposite polarity. One wire is negative, the other wire is positive. They are twisted together and the magnetic fields effectively cancel each other and outside EMI/RFI.
    • Variation in twists per foot in each wire – Each wire is twisted a different amount, which helps prevent crosstalk amongst the wires in the cable.

UTP Cabling Standards and Connectors

  • Standards for UTP are established by the TIA/EIA. TIA/EIA-568 standardizes elements like:
    • Cable Types
    • Cable Lengths
    • Connectors
    • Cable Termination
    • Testing Methods

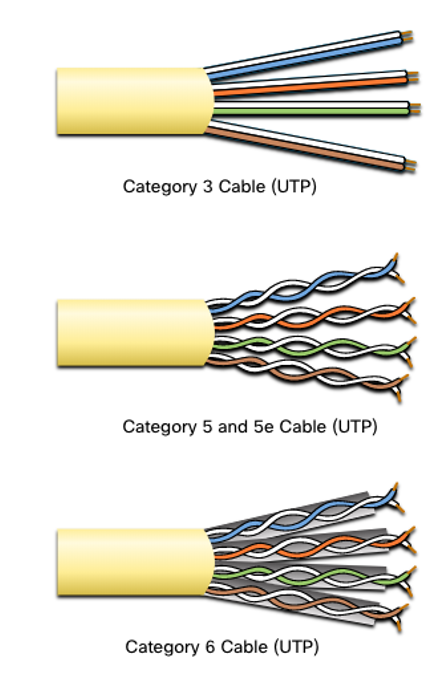

  •   Electrical standards for copper cabling are established by the IEEE, which rates cable according to its performance. Examples include:
    • Category 3
    • Category 5 and 5e
    • Category 6

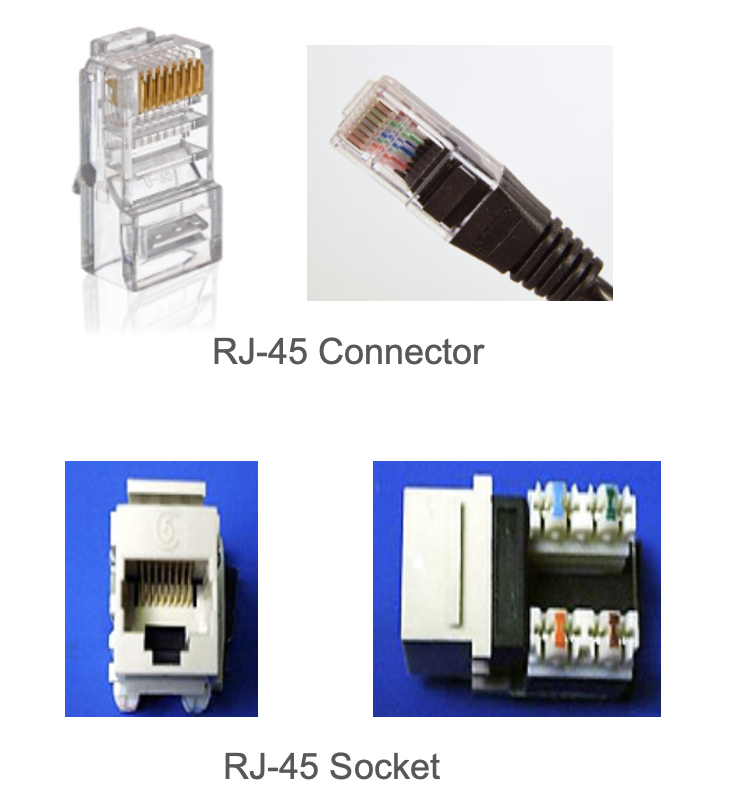

  Connectors

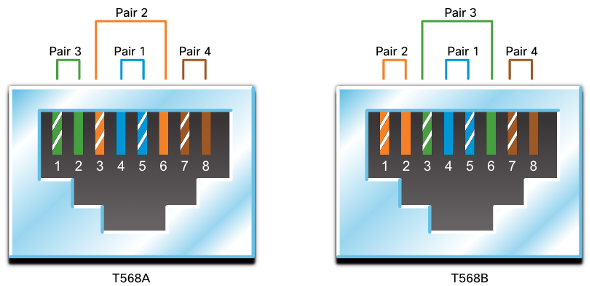

Straight-through and Crossover UTP Cables



Cable Type Standard Application
Ethernet Straight-through Both ends T568A or T568B Host to Network Device
Ethernet Crossover One end T568A, other end T568B Host-to-Host, Switch-to-Switch, Router-to-Router
Rollover Cisco Proprietary Host serial port to Router or Switch Console Port, using an adapter
